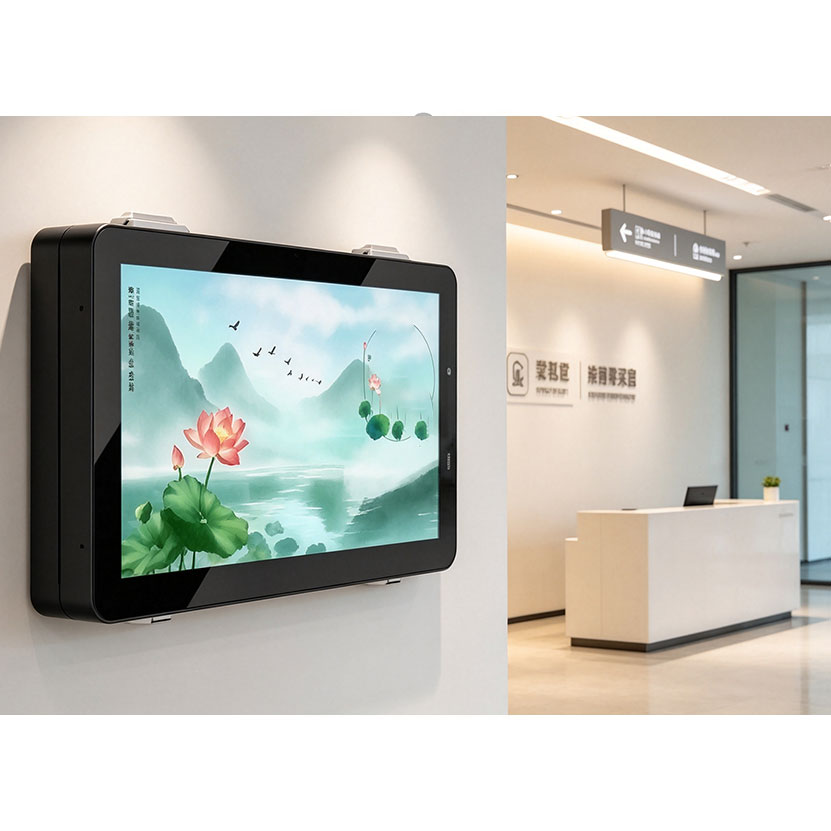

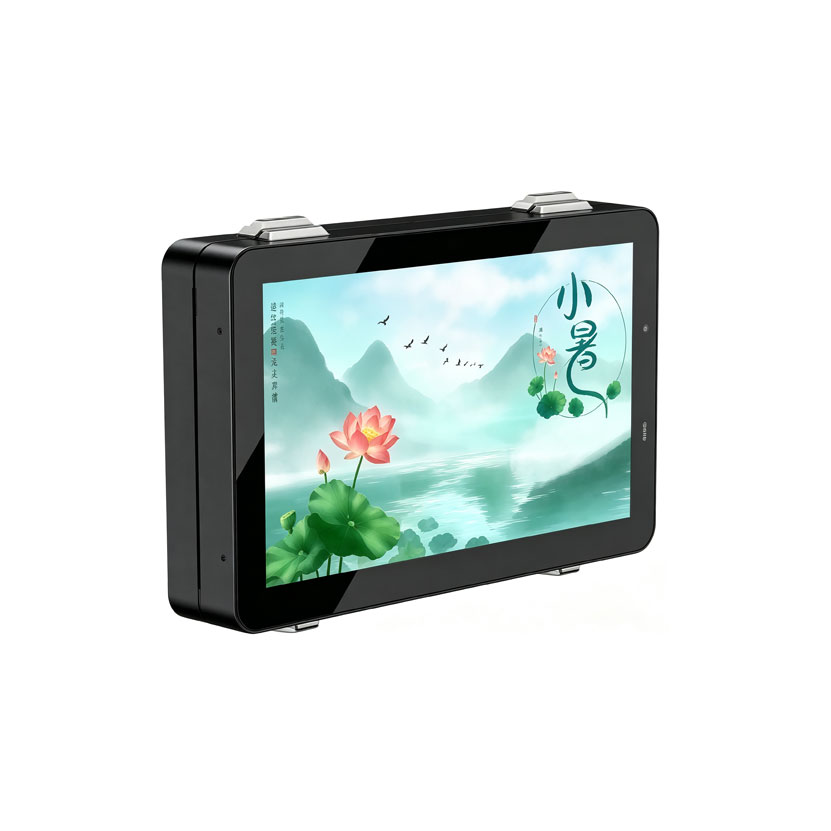

21.5英寸壁挂式户外数字标牌

适用于专业项目的1500尼特高亮度户外显示屏

HITULCD 21.5英寸壁挂式户外数字标牌专为需要高可见度、防风雨、可靠运行和灵活集成的专业户外显示应用而设计。

带着一个 1920×1080全高清面板，1500尼特高亮度，IP65防护，坚固的壁挂式外壳，该显示器适用于零售、加油站、交通、免下车、电动汽车充电站、公共信息系统和其他固定的室外安装。

该平台还提供可选功能 10点PCAP触控、安卓、Wi-Fi、局域网和4G连接，使其适用于广告和交互式信息应用。

主要规格

• 21.5英寸全高清液晶显示器

• 1920×1080分辨率

• 16:9宽高比

• 1500尼特高亮度

• 178°视角

• IP65户外防护

• 6mm钢化前玻璃

• 24/7商业运营

• -工作温度为10°C至+50°C

• 功耗≤70W

• 壁挂式安装

• 10点PCAP触摸可选

• Android平台可用

• Wi-Fi/LAN/4G可选

• 提供OEM/ODM定制服务

专为户外能见度而设计

室外显示器必须在不断变化的环境光条件下保持可读性。1500尼特液晶面板的亮度明显高于传统的室内商业显示器，使其适用于明亮的室外环境。

显示器可以配置：

• 1500尼特高亮度液晶显示器

• 防眩光前玻璃

• 环境光照传感器

• 自动亮度调节

• 钢化防护玻璃

• 可选光学粘合

• 可选的阳光可读配置

对于需要在阳光直射下增强可读性的项目，HITULCD可以评估应用环境，并推荐适当的亮度、玻璃和光学配置。

室外能见度测试和样品评估可满足项目要求。

IP65户外防护

该外壳专为需要防尘防水的室外应用而设计。

防护等级：IP65[测试报告可用/待确认]

对于工程项目，应根据最终外壳配置和测试报告确认IP65等级的确切范围。

可以根据项目要求评估其他保护选项，包括：

• 耐候外壳

• 密封外壳设计

• 防腐处理

• 抗紫外线材料

• 防破坏玻璃

• 增强冲击防护

IK冲击等级：[待确认]

如果您的项目需要特定的IK等级，如IK08或IK10，HITULCD可以在批量生产之前评估所需的机柜和玻璃配置。

24/7商业级运营

该显示器专为需要可靠长期运行的连续商业应用而设计。

热管理系统使用温度控制冷却来帮助保持稳定的内部运行条件。

主要热特性包括：

• 温控风扇

• 自动冷却管理

• 过热保护

• 内部温度监测

• 高亮度LCD热管理

• 适用于寒冷天气应用的可选加热器

标准工作温度：-10°C至+50°C

扩展温度配置，例如 -根据项目要求和硬件配置，可以评估20°C至+50°C或更宽的范围。

对于极端气候条件下的安装，客户可以提供预期的环境温度范围和安装条件，以便我们的工程团队确认适当的配置。

易于项目集成的机械设计

对于专业项目，显示器必须符合客户的机械结构、安装系统和电缆布线要求。

21.5英寸户外显示屏可配置为壁挂式安装，并可根据项目要求进行定制。

工程文件可能包括：

• 外形尺寸

• 显示器厚度

• 安装孔位置

• VESA图案

• 墙支架尺寸

• 电缆出口位置

• 安装间隙

• 产品重量

• 重心

• 前后机械图纸

二维机械图：可用

CAD/STEP文件：[可用/待确认]

对于定制项目，HITULCD可以在生产前提供机械图纸供工程审查。

灵活的连接和智能显示选项

显示器可以配置为独立的数字标牌屏幕，也可以集成到客户现有的硬件和软件生态系统中。

智能显示器配置

• 安卓操作系统

• 无线传输系统

• 以太网/局域网

• 4G LTE

• 蓝牙[可选/待确认]

• 高清多媒体接口（High Definition Multimedia Interface）

• 通用串行总线

• 音频

• RS232[可选/待确认]

标准平台目前支持基于Android的应用程序。

应确认每个生产批次的Android版本和处理器配置。

For new projects, newer Android platforms such as Android 11 or later can be evaluated, depending on software, processor and project requirements.

Windows-based configurations are also available for selected applications.

Remote Content Management

For multi-location digital signage projects, remote content management can be integrated into the system.

Typical functions may include:

• Remote content updates

• 定时播放

• 播放列表管理

• Remote device restart

• Device status monitoring

• 自动电力调度

• 远程亮度控制

• 多屏幕管理

HITULCD displays can work with compatible third-party Android CMS platforms.

CMS compatibility should be confirmed before project deployment.

For customers with an existing CMS platform, our engineering team can evaluate the required Android application, communication protocol and hardware interfaces.

Touchscreen Option

For interactive applications, the 21.5-inch display can be equipped with a projected capacitive touchscreen.

Optional 10-Point PCAP Touch

适用于：

• 自助服务亭

• Interactive product information

• Ordering systems

• Wayfinding

• Ticketing

• EV charging interfaces

• 公共信息终端

Touch sensitivity, glass thickness, glove operation and waterproof touch performance can be customized according to the application.

Typical Outdoor Applications

The 21.5-inch wall-mounted display is suitable for a wide range of fixed outdoor applications.

Gas Stations

Display fuel prices, promotions, advertisements and service information.

不必下车即可得到服务的餐馆

Display menus, promotions, ordering information and customer instructions.

Retail Stores

Use the display for outdoor advertising, product information and promotional campaigns.

电动汽车充电站

Display charging information, instructions, advertising and payment-related content.

运输

Suitable for passenger information, schedules, wayfinding and public announcements.

Public & Commercial Buildings

Suitable for outdoor information displays, visitor information, advertising and digital directories.

OEM和；ODM定制

HITULCD provides OEM and ODM services for customers developing their own outdoor digital signage products or integrating displays into larger systems.

自定义选项包括：

显示

• 屏幕尺寸

• 分辨率

• 亮度

• 触摸屏

• 视角

• Anti-glare treatment

• 光学贴合

机械的

• Housing dimensions

• 住房颜色

• 安装孔

• VESA图案

• Wall bracket

• 电缆布线

• 标志

• 前玻璃

电子学

• Android平台

• 处理器

• RAM / storage

• 无线传输系统

• 局域网

• 4克

• 高清多媒体接口（High Definition Multimedia Interface）

• 通用串行总线

• RS232型

• Other interfaces

软件

• 开机画面

• Pre-installed applications

• Android配置

• CMS集成

• Custom startup settings

From prototype development to mass production, our engineering team can work with customers on mechanical, electronic and software requirements.

工程文件

For project-based purchasing, technical documentation is available to support product evaluation and system integration.

Engineering Downloads

• 产品数据表

• 用户手册

• 2D Mechanical Drawing

• CAD / STEP File [To Be Confirmed]

• Interface Diagram

• Power Specification

• IP65 Test Report

• Temperature Test Report

• Aging Test Report

• Vibration Test Report

• CE Certificate

• FCC Certificate

• RoHS

• 达到

Documents marked as project-specific should be confirmed with our engineering team before ordering.

Need a document that is not listed above?

Ask an Engineer →

Testing & Quality Control

Each project can be evaluated according to the required application environment.

Typical quality and reliability testing includes:

• 老化测试

• 高温试验

• 低温试验

• 振动测试

• 通电测试

• LCD inspection

• Touchscreen inspection

• IP保护测试

• Interface testing

• Full-function inspection

Test requirements can be customized for large-volume or project-based orders.

Project Procurement Information

HITULCD supports both small-volume evaluation and large-scale commercial projects.

For customized projects, the final price and lead time depend on display specification, enclosure design, operating environment, electronics, quantity and customization requirements.

从原型到批量生产

For distributors, system integrators, engineering companies and project contractors, HITULCD can support the complete product development process:

Requirement → Engineering Review → Prototype → Sample Testing → Pilot Order → Mass Production → Quality Inspection → Shipment

Before placing a large order, customers can provide:

• 目标应用程序

• 安装环境

• Required brightness

• 屏幕尺寸

• 工作温度

• Touch requirement

• 安装方式

• CMS requirements

• 数量

• Delivery destination

Our engineering team can then recommend a suitable configuration and identify any technical risks before production.

Why Choose HITULCD?

High-Brightness LCD Expertise

Outdoor displays from 7 to 86 inches with brightness configurations from standard commercial levels to ultra-high-brightness applications.

工程支持

Direct technical communication for mechanical, electronic and integration requirements.

OEM / ODM Capability

Customize the display, enclosure, interfaces, operating system, touch solution and mounting structure.

Factory Direct

Direct communication with the manufacturer from prototype development to volume production.

Project-Oriented Support

Engineering drawings, samples, test reports, certifications and production support are available for qualified projects.

常见问题

Is the 21.5-inch display suitable for outdoor use?

Yes. The display is designed for fixed outdoor applications and uses a high-brightness 1500-nit LCD with an outdoor protective enclosure. The final suitability should be evaluated according to sunlight exposure, ambient temperature and installation conditions.

Is the entire display IP65 rated?

The final IP rating and test scope should be confirmed according to the exact enclosure configuration and applicable test report.

Can the display be installed vertically?

Portrait installation can be evaluated according to the mechanical and cooling requirements of the project.

Can you provide a mechanical drawing?

Yes. A mechanical drawing can be provided for engineering evaluation. CAD / STEP files are available for selected projects and configurations.

Can you customize the enclosure?

Yes. Housing dimensions, mounting holes, color, glass, logo, cable routing and other mechanical features can be customized.

Can the Android system be customized?

Yes. Android configuration, applications, boot logo, storage and selected hardware platforms can be customized according to project requirements.

Can I use my own CMS?

Yes. Compatible third-party Android CMS platforms can be evaluated. If you already have a CMS, provide the software requirements to our engineering team for compatibility evaluation.

Can you provide a sample before bulk production?

Yes. Samples are available for product evaluation and project testing.

What is the operating temperature?

The standard operating temperature is -10°C to +50°C. Wider temperature ranges can be evaluated for specific projects.

Can the display be used in direct sunlight?

The 1500-nit configuration is designed for bright outdoor environments. For installations with strong direct sunlight, we recommend evaluating the actual installation environment and considering anti-glare glass, optical bonding and automatic brightness control.

Need a Custom Outdoor Display?

If you are a digital signage distributor, system integrator, engineering company, contractor or procurement team, send us your project requirements.

Please provide:

Screen Size + Brightness + Installation Environment + Quantity + Touch Requirement + Operating Temperature + Mounting Requirements

Our engineers can recommend a suitable configuration and provide the technical documentation required for your project evaluation.
