技术规格
| LCD面板参数 | HDMI/控制板规格 | ||
|---|---|---|---|
| 项目 | 详情 | 项目 | 详情 |
| 描述 | HANNTU 10.1"；QLED量子点高色域350CD | 输入接口 | HDMI、VGA |
| 尺寸 | 10.1 | 电源输入 | DC12V2A |
| 显示面积（mm） | 216.96×135.6毫米（高×高） | OSD密钥 | 5个按键（电源开关、菜单、+、-、退出） |
| 决心 | 1280*800 | OSD控制 | 亮度、颜色、对比度、自动旋转、H/V位置等。 |
| 宽高比 | 16:10 | ||
| 对比度 | 1000:1 | ||
| 每英寸像素（PPI） | 149 | ||
| 视角 | 160（H）、160（V） | ||
| 显示颜色 | 16.7米，50%非标准立方英尺 | ||
| 响应时间（典型） | 35毫秒 | ||
| 信号类型 | LVDS（1通道，8位）40针 | ||
| 背光 | WLED，30K小时，带LED驱动器 | ||
| 功耗 | 10W | ||
| 尺寸（mm） | 228x149x6.5 | ||
| 安装 | 视频电子标准协会 | ||
| 边框尺寸（U/B/L/R） | 8/3/5/3 | ||
| 工作温度 | -20℃～+70℃ | ||
| 储存温度 | -30℃～+80℃ | ||
| 重量（净重） | 0.3公斤 | ||
产品特点
探索我们高性能显示解决方案的先进规格和功能。
定制10.1英寸高亮度液晶屏
我们为该产品提供灵活的定制服务，实现与各种终端设备的无缝集成，帮助您实现更广泛的兼容性和更强的市场渗透率。
分辨率定制
支持多种分辨率选项，包括HD、FHD、2K和4K。自定义像素密度可确保图像清晰锐利。
亮度定制
亮度可在500尼特至5000尼特之间调节，针对全天户外和高亮度环境进行了优化。
开放式框架自定义
支持开放式框架结构，便于嵌入式集成，安装和外壳尺寸灵活。
接口定制
支持HDMI、DP、VGA、USB、RS232、RJ45等接口，实现流畅的系统集成。
住房设计
通过颜色、纹理和结构调整进行全面的住房定制，以提升品牌形象。
Logo&；软件
自定义开机标志、UI设计、固件和软件集成，以提高您的品牌影响力。
包装与；标注
自有品牌包装、定制包装盒、手册和标签，打造高端品牌形象。
为什么选择我们的OEM/ODM服务？
快速原型制作和样品交付
生产过程中严格的质量控制
灵活调整所有项目的最低起订量
稳定的交付周期和可靠的交付
全球户外显示屏专业知识
10.1英寸户外高亮度液晶显示器的应用领域
全球质量与认证
严格的国际认证标准确保了我们的产品在工业应用中的安全性、可靠性、环保性和高性能。
CE认证
FCC认证
符合性
ISO9001
IP65防护等级世界级液晶玻璃合作伙伴
我们与世界领先的液晶玻璃制造商密切合作，为客户创造高质量、高性能的显示产品，确保在恶劣的工业环境中具有卓越的可靠性、较长的使用寿命和稳定的性能。

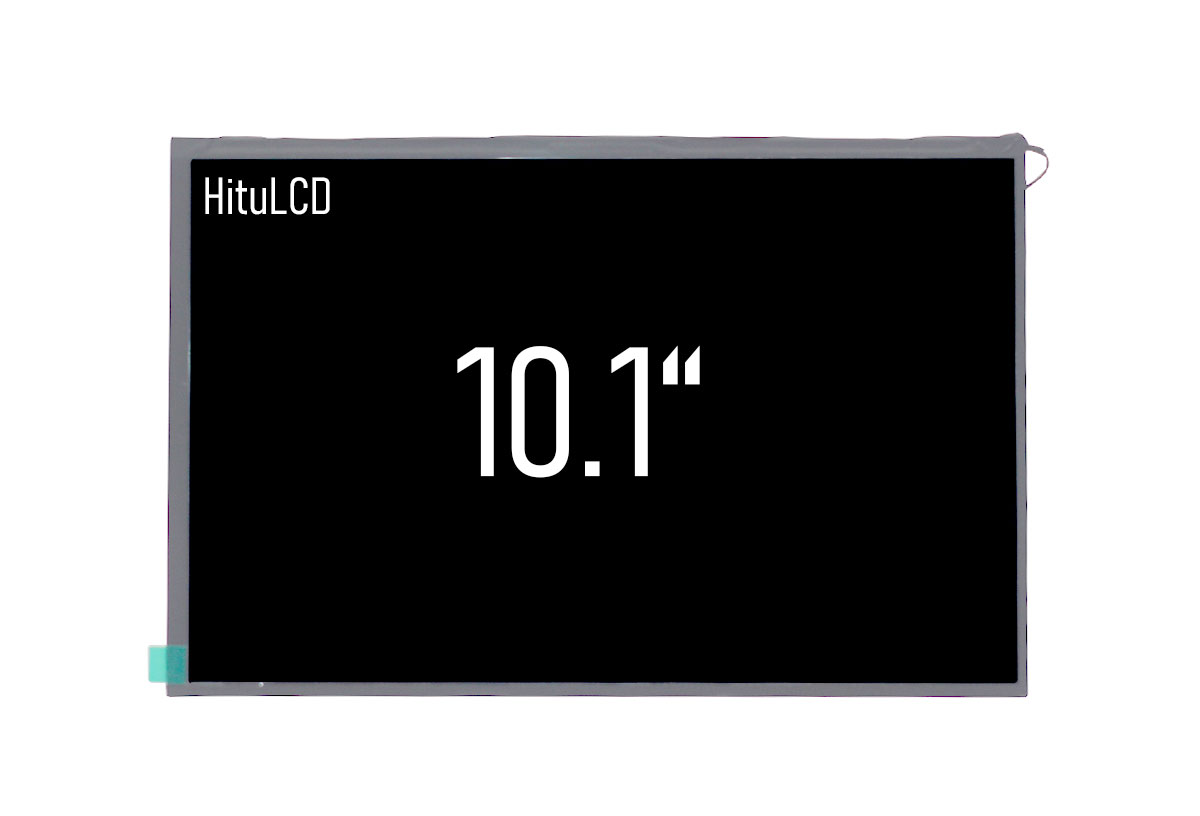

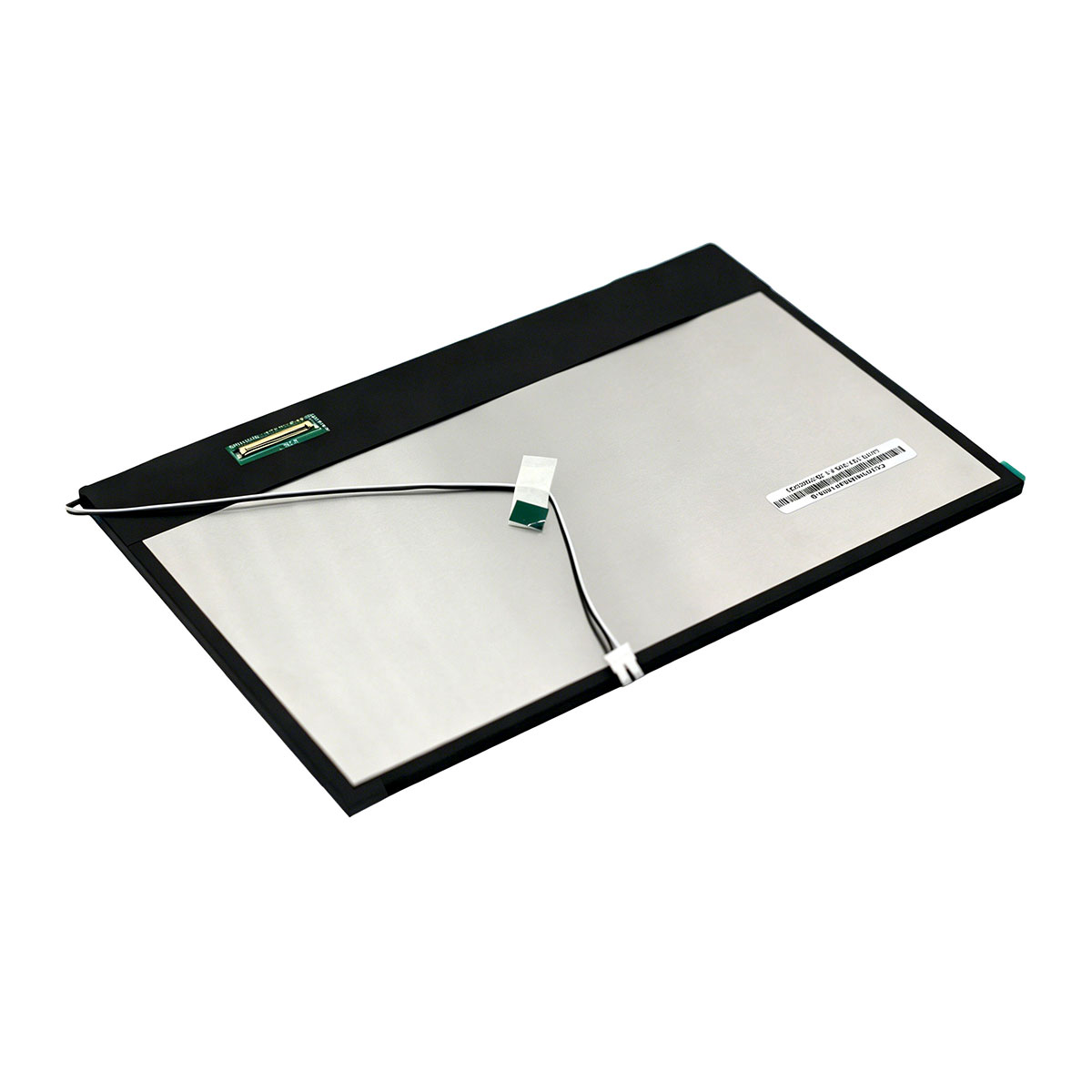

10.1英寸工业高亮度液晶显示器（1000尼特）
专为明亮环境中的可靠可见度而设计
这款10.1英寸高亮度LCD专为工业和半户外应用而设计，可提供1000cd/m²的亮度，确保在强环境光下清晰可见。专为耐用性、稳定性和长期运行而设计，是售货亭、运输系统和工业控制接口的理想解决方案。
✔ 阳光可读性能
✔ 工业级可靠性
✔ 24/7 continuous operation
✔ OEM / ODM customization supported
👉 请求报价 | Get Technical Support
What is a 1000 nits High Brightness LCD Display?
A 1000 nits industrial LCD display is specifically designed to perform in high ambient light conditions where standard displays fail. Compared to conventional screens (typically 250–400 nits), a 1000 cd/m² display significantly improves visibility, reduces glare washout, and enhances readability.
Brightness is measured in nits (cd/m²), which indicates how much light a display emits.
Brightness Comparison Guide:
300–500 nits → Standard indoor displays
700–1000 nits → Window-facing / semi-outdoor
1500+ nits → Full outdoor sunlight readable
This makes 1000 nits an ideal balance between performance and power efficiency for many commercial and industrial applications.
Why Choose Our 10.1” Industrial LCD Display?
Sunlight Readable Performance
With 1000 nits brightness and optimized contrast, the display maintains clear visibility even in bright indoor and semi-outdoor environments.
Industrial-Grade Design
Built for demanding applications, supporting stable performance under continuous 24/7 operation.
Long Lifespan Backlight
Advanced LED backlight system with up to 50,000–70,000 hours lifespan reduces maintenance and replacement costs.
Wide Temperature Support
Engineered for harsh environments, ensuring reliable operation in varying temperature conditions.
Energy Efficient Design
High brightness achieved with optimized power consumption, suitable for embedded systems.
TECHNICAL SPECIFICATIONS
| 参数 | 规格 |
|---|---|
| 屏幕尺寸 | 10.1 inch |
| 决心 | 1280×800 |
| 亮度 | 1000 cd/m² |
| 对比度 | |
| Viewing Angle | IPS 160° |
| Interface | HDMI / LVDS / (Customizable) |
| Touch Option | PCAP / Resistive (Optional) |
| 工作温度 | -20°C to +70°C |
| Backlight Life | 50,000–70,000 hours |
Typical Applications
Our high brightness LCD displays are widely used across industries where visibility and durability are critical:
Self-service kiosks & ticketing machines
EV charging stations
Outdoor and semi-outdoor digital signage
Industrial control panels (HMI systems)
Transportation systems (bus stops, railway terminals)
Retail storefront window displays
These applications demand consistent performance under challenging lighting conditions, making high brightness displays essential.
How to Choose the Right Brightness Level?
Selecting the correct brightness depends on your installation environment:
| 环境 | Recommended Brightness |
|---|---|
| 室内 | 300–500 nits |
| Window-facing | 700–1000 nits |
| Semi-outdoor | 1000-1500cd/m² |
| Full outdoor sunlight | 2000–5000 nits |
For direct sunlight exposure, higher brightness combined with optical bonding is strongly recommended to improve readability and reduce reflections.
OEM / ODM Capabilities
We provide flexible customization services tailored to your project requirements:
Optical bonding (enhanced visibility & durability)
Anti-glare / anti-reflective coating
Touch integration (PCAP / Resistive)
Interface customization (HDMI / LVDS / MIPI)
Mechanical structure & housing design
Firmware & boot logo customization
Packaging & labeling customization
We support global OEM/ODM projects for system integrators and equipment manufacturers.
Manufacturing & Quality Assurance
Our products are manufactured under strict quality control systems to ensure long-term reliability:
ISO9001 certified quality management
ISO14001 environmental compliance
100% functional testing before shipment
Aging test & burn-in process
Industrial-grade component selection
We are committed to delivering stable and durable display solutions for global industrial applications.
常见问题
Is 1000 nits enough for outdoor use?
1000 nits is suitable for semi-outdoor environments. For direct sunlight, 1500–3000 nits is recommended.
What is optical bonding?
Optical bonding removes the air gap between the display layers, reducing reflection and improving sunlight readability.
Can this display run 24/7?
Yes, it is designed for continuous operation with long backlight lifespan.
Can I customize the display?
Yes, we provide full OEM/ODM customization including brightness, interface, touch, and mechanical design.
Start Your Project Today
Looking for a reliable high brightness LCD solution?
Our engineering team is ready to support your project with customized display solutions tailored to your application.
