5.5-27英寸工业控制高亮度显示套件 可定制的

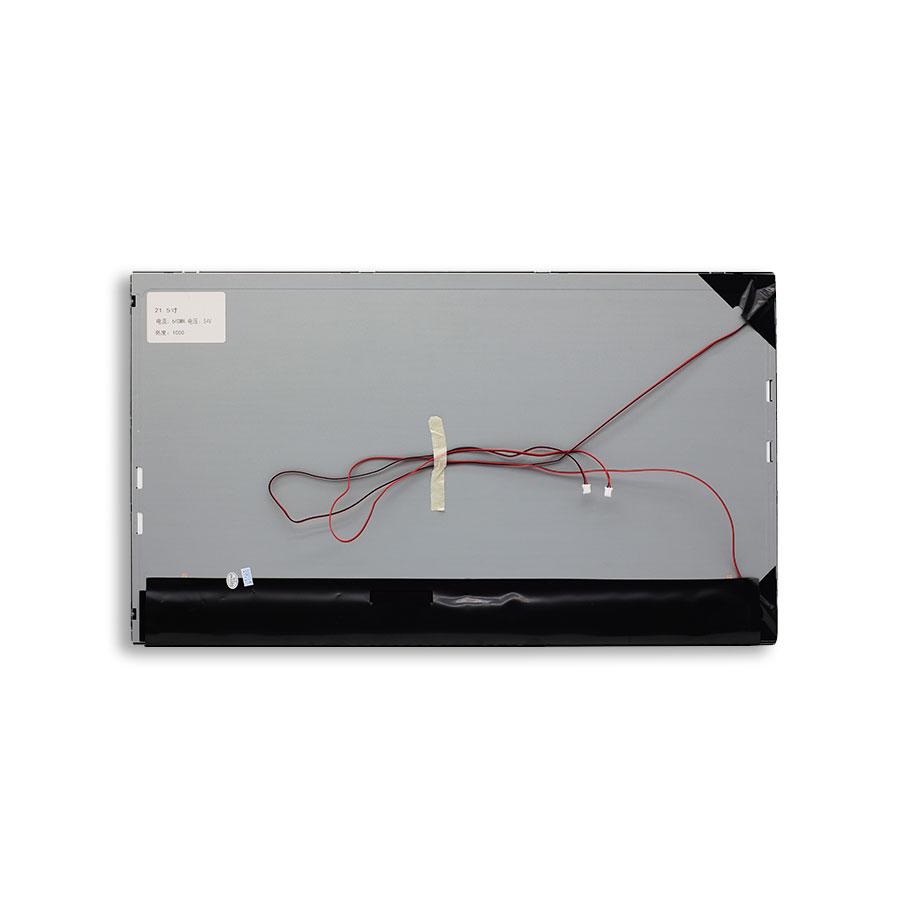

27英寸工业液晶显示器|高亮度,OEM定制解决方案

型号: HT270FHD-1000

亮度 1000 cd/m²
尺寸 27 英寸
决议 1920*1080
纵横比 16:9

技术亮点

  • 1000cd/m²的高亮度确保即使在阳光直射下也能清晰可见,是户外和高环境光环境的理想选择。
  • 工业级背光的使用寿命可达100000小时,可实现稳定的24/7运行,同时降低维护和更换成本。
  • 178°宽视角IPS面板从各个方向提供一致的颜色和清晰度,非常适合公共和多用户应用。

认证标准

ISO9001 CE 联邦通信委员会 有害物质限制

需要定制解决方案?

我们的工程团队随时准备为您提供专业的技术支持和灵活的定制服务。

了解灯光定制服务

技术规格

LCD面板参数HDMI/控制板规格
项目详情项目详情
描述HANNTU 27";QLED量子点高色域350CD输入接口HDMI、VGA
尺寸27电源输入交流100~240V
显示面积(mm)597.888(高)×336.312(伏)毫米OSD密钥5个按键(电源开关、菜单、+、-、退出)
决心1920*1080OSD控制亮度、颜色、对比度、自动旋转、H/V位置等。
宽高比16:9

对比度1000:1

每英寸像素(PPI)81

视角178(H)、178(V)

显示颜色16.7米,72%NTSC

响应时间(典型)8毫秒

信号类型LVDS(2通道,8位),30个引脚

背光WLED,30K小时,带LED驱动器

功耗25W

尺寸(mm)630x368.2x9.7毫米(高×宽×深)

安装100*100MM的容器

边框尺寸(U/B/L/R)14.2/14.2/14.2/14.2

工作温度0℃~+50℃

储存温度-20℃~+60℃

重量(净重)1.5公斤

产品特点

探索我们高性能显示解决方案的先进规格和功能。

27英寸显示器
1920*1080/3840×2160分辨率
Type-C/Mini HDMI接口
智能手机有线投影
入侵防御系统
IPS面板
178°视角
高动态范围
HDR显示功能
OSD菜单调整
计算机数控
数控机柜
HFFI扬声器
电容式触摸
10点钟触摸
Type-C触摸端口
钢化玻璃面板
光学贴合
3.5毫米插座
游戏支持
OEM/ODM服务

自定义

我们为该产品提供灵活的定制服务,实现与各种终端设备的无缝集成,帮助您实现更广泛的兼容性和更强的市场渗透率。

分辨率定制

     支持多种分辨率选项,包括HD、FHD、2K和4K。自定义像素密度可确保图像清晰锐利。

亮度定制

     亮度可在500尼特至5000尼特之间调节,针对全天户外和高亮度环境进行了优化。

开放式框架自定义

     支持开放式框架结构,便于嵌入式集成,安装和外壳尺寸灵活。

接口定制

     支持HDMI、DP、VGA、USB、RS232、RJ45等接口,实现流畅的系统集成。

住房设计

     通过颜色、纹理和结构调整进行全面的住房定制,以提升品牌形象。

Logo&;软件

     自定义开机标志、UI设计、固件和软件集成,以提高您的品牌影响力。

包装与;标注

     自有品牌包装、定制包装盒、手册和标签,打造高端品牌形象。

为什么选择我们的OEM/ODM服务?

  • 快速原型制作和样品交付

  • 生产过程中严格的质量控制

  • 灵活调整所有项目的最低起订量

  • 稳定的交付周期和可靠的交付

  • 全球户外显示屏专业知识

应用领域

Smart Transportation

智能交通

  • 公交/地铁车辆信息显示

  • 电子停车标志;车站引导屏幕

  • 叫车/出租车显示终端

  • 电动汽车智能中央控制屏

New Energy & Power

新能源与;力量

  • 电动汽车充电桩人机界面

  • 光伏/储能逆变器监控屏幕

  • 加油站显示终端

  • 电源现场检查设备屏幕

Industrial & Engineering Machinery

工业与;工程机械

  • 工程机械/叉车驾驶室人机界面

  • 农业机械车辆展示

  • 工厂户外设备监控屏幕

  • 船舶/海洋工程显示终端

Commercial Retail & Self-Service

商业零售和;自助服务

  • 户外自助查询/引导终端

  • 户外餐饮自助订购亭

  • 包裹柜/储物柜操作屏幕

  • 户外广告机;数字标牌

Smart City

智慧城市

  • 智能停车支付机

  • 安全监控/访问控制辅助屏幕

  • 环境监测与;气象站屏幕

  • 应急指挥便携式终端

Special & Rugged Devices

特殊和;坚固耐用的设备

  • 军用坚固型平板电脑/笔记本电脑

  • 现场测绘终端

  • 科研用宽温显示设备

  • 无人机地面站监控屏幕

认证

全球质量与认证

       严格的国际认证标准确保了我们的产品在工业应用中的安全性、可靠性、环保性和高性能。

this        CE认证
The U.S. Federal Communications Commission (FCC)        FCC认证
RoHS        符合性
ISO9001        ISO9001
IP65        IP65防护等级

   世界级液晶玻璃合作伙伴

   我们与世界领先的液晶玻璃制造商密切合作,为客户创造高质量、高性能的显示产品,确保在恶劣的工业环境中具有卓越的可靠性、较长的使用寿命和稳定的性能。

LG monitors
AU Optronics
BOE
Innolux
Tianma
CSOT

27英寸日光可读工业液晶显示器——1000尼特高亮度,专为恶劣环境而设计

停止使用户外故障的商用屏幕

如果您的显示器变成 褪色、过热或在阳光下看不清,你正在失去用户、效率和收入。

这款27英寸工业液晶显示器就是为了解决这个问题而设计的。

✔ 1000 nits true sunlight readability
✔ Stable 24/7 operation without overheating
✔ Industrial-grade components for long-term deployment
✔ Full OEM customization for your project

👉 Built for environments where consumer displays fail.



Why Most Displays Fail in Real Applications

Problem with Standard DisplaysOur Industrial Solution
250–350 nits – unreadable outdoors1000 nits – clear in direct sunlight
Overheating after long useThermal-optimized for 24/7 operation
Short lifespan (1–2 years)Up to 100,000 hours backlight life
No customizationFull OEM / engineering support
Poor visibility at angles178° wide viewing angle

👉 Result: Lower maintenance cost + better user experience + longer product lifecycle



Engineered for Mission-Critical Applications

This is not a consumer display repurposed for industry.
It is purpose-built for reliability, visibility, and scalability.

  • Maintain visibility under direct sunlight

  • Reduce field failures and replacement costs

  • Ensure stable long-term supply for your product line


1. True 1000 Nits Sunlight Readable

Clear, sharp images even under high ambient light and outdoor exposure.

2. Long-Life Industrial Backlight

Up to 100,000 hours lifespan, reducing maintenance and downtime.

3. Wide Viewing Angle (178°)

Consistent image quality from all directions—ideal for public and industrial use.



Proven in Real-World Deployments

This 27-inch display is widely used in:

  • Outdoor self-service kiosks

  • EV charging stations

  • Smart transportation systems

  • Industrial automation & HMI

  • Digital signage in high-brightness environments

👉 If your project operates outdoors or under strong lighting, this is the correct solution.



Designed Around Your Product – Not the Other Way Around

We support full customization to match your system requirements:

  • Brightness upgrade (1000–2000 nits)

  • Touch integration (PCAP / resistive)

  • Interface options (HDMI / LVDS / eDP)

  • Mechanical structure (open frame / embedded / enclosure)

  • Optical bonding for enhanced readability

  • Private labeling & branding

✔ Fast sampling
✔ Stable supply chain
✔ Engineering support included


Built for Long-Term Deployment

  • Industrial-grade components only

  • 24/7 continuous operation support

  • Strict aging and reliability testing

  • CE / FCC / RoHS compliant

  • 5–10 years supply lifecycle

👉 Designed to reduce failure rates and protect your investment.


🟦 Technical Specifications

项目规格
尺寸27 inch
决心1920 × 1080
亮度1000 cd/m²
Viewing Angle178°
对比度1000:1
InterfaceHDMI / VGA / DP (customizable)
PowerDC 12V
Operation24/7 Industrial


Why Choose Us Over Other Suppliers?

  • Faster OEM response time

  • Lower customization cost

  • Stable long-term panel supply

  • Proven industrial application experience

  • Direct manufacturer – no middle margin

👉 Not just a display supplier — a long-term solution partner.



Ready to Upgrade Your Display Performance?

Stop dealing with dim, unreliable screens.

📩 Get a quote within 24 hours
📩 Free technical consultation available

👉 Tell us your project requirements — we’ll provide the right solution.
