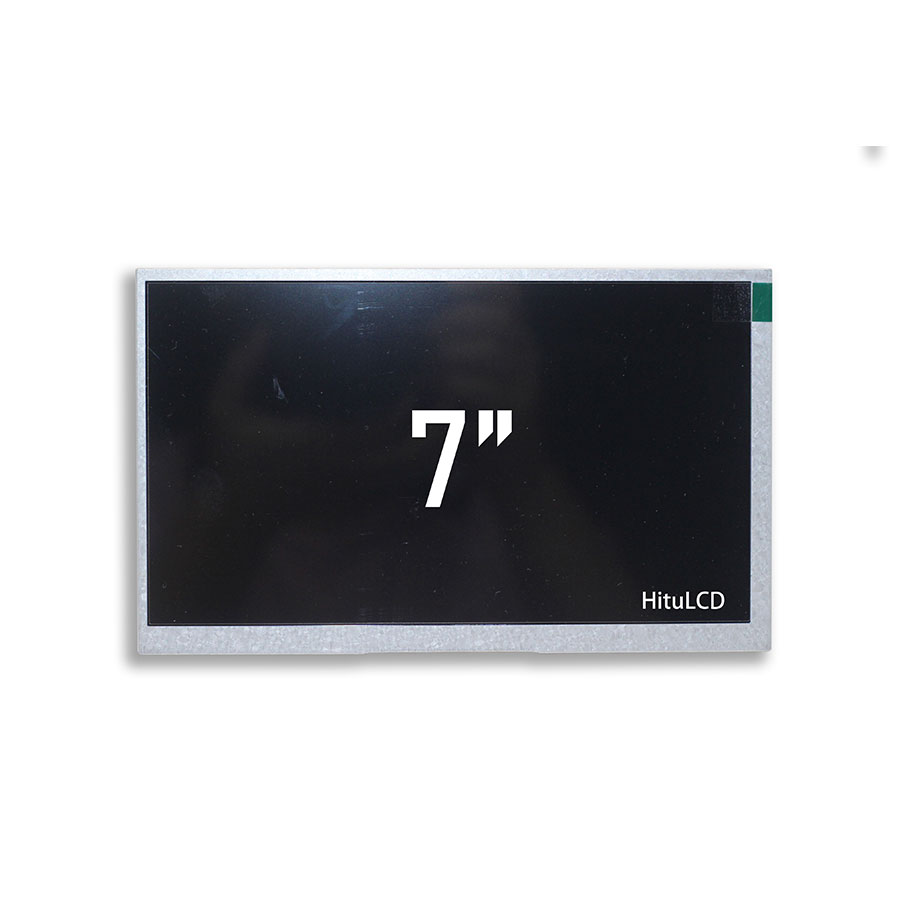

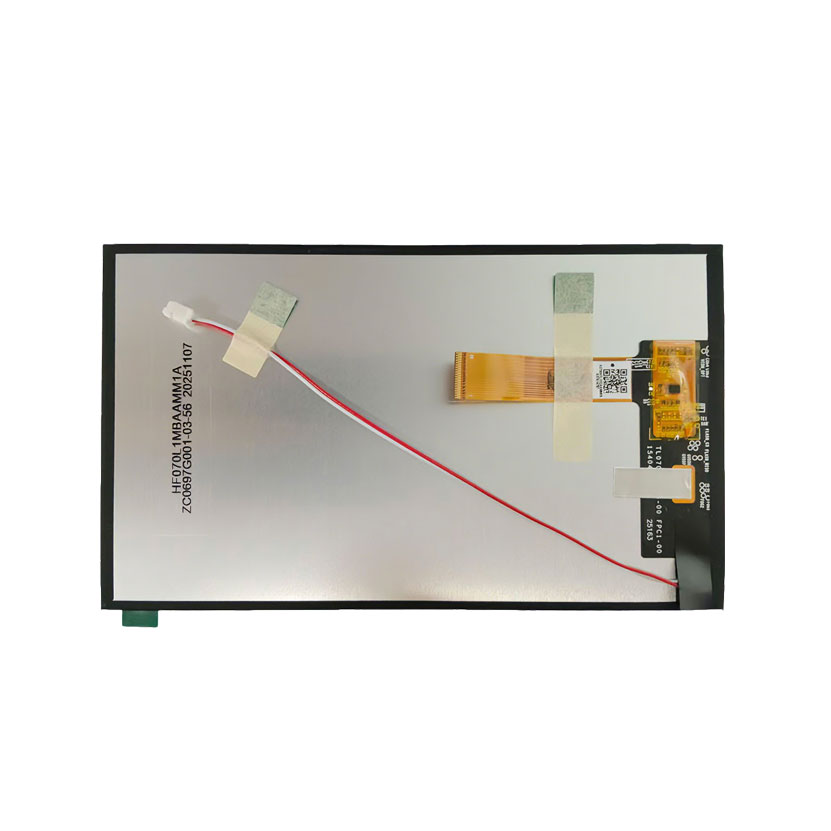

7" 阳光可读液晶屏模块（2000 cd/m²）

工程说明：HT070FHD-2000

7W功率消耗和DC 12V2A输入是电气工程师在cd/m²图之前需要的两个数字

该模块在DC 12V2A上运行，而不是在我们的7英寸显示器上使用的AC 100-240V输入；变体——一个深思熟虑的选择ce for this size class, since 7" panels in vehicle, kiosk, and embedded HMI installs are more often wired directly into a 12V rail than an AC mains line. If your enclosure already has a 12V bus, this saves you a power conversion stage; if you're retrofitting into an AC-powered chassis, flag it to us early so we can quote the DC-DC conversion board alongside the panel.

The 7W consumption is roughly double our 7" module's 3W — expected at this display area, but worth budgeting for if you're running multiple units off a shared power supply in a fleet deployment (bus displays, EV charging banks).

30,000-hour backlight rating, not 50,000 — here's why, and when it matters

Larger panels dissipate heat differently than smaller ones, and at this size/brightness combination the WLED backlight is rated at 30,000 hours rather than the 50,000 hours we quote on the 7" module. In practical terms: at 24/7 continuous operation, that's roughly 3.4 years before you're planning a backlight refresh cycle versus 5.7 years on the smaller panel. For outdoor advertising or transit displays running daylight hours only, this stretches well past typical hardware refresh cycles anyway — it matters more for always-on industrial monitoring applications. If your project needs the longer figure, ask us about the direct-lit backlight variant.

316 PPI，而非400 PPI——这是易读性的权衡，而非降级

At 1920×1080 across a larger 154.368 × 86.832mm active area, pixel density comes down to 316 PPI compared to 400 PPI on the 7" panel. For text-heavy HMI or fine iconography viewed at close range (handheld terminals), the 7" panel reads sharper. For 7" applications — which are typically viewed from 40cm+ in vehicle dashboards, kiosk panels, or wall-mounted control interfaces — 316 PPI is comfortably above the resolution the eye can distinguish at that distance, so this isn't a meaningful tradeoff for most 7" use cases. It only becomes relevant if you're designing a handheld device at 7" viewed at arm's length.

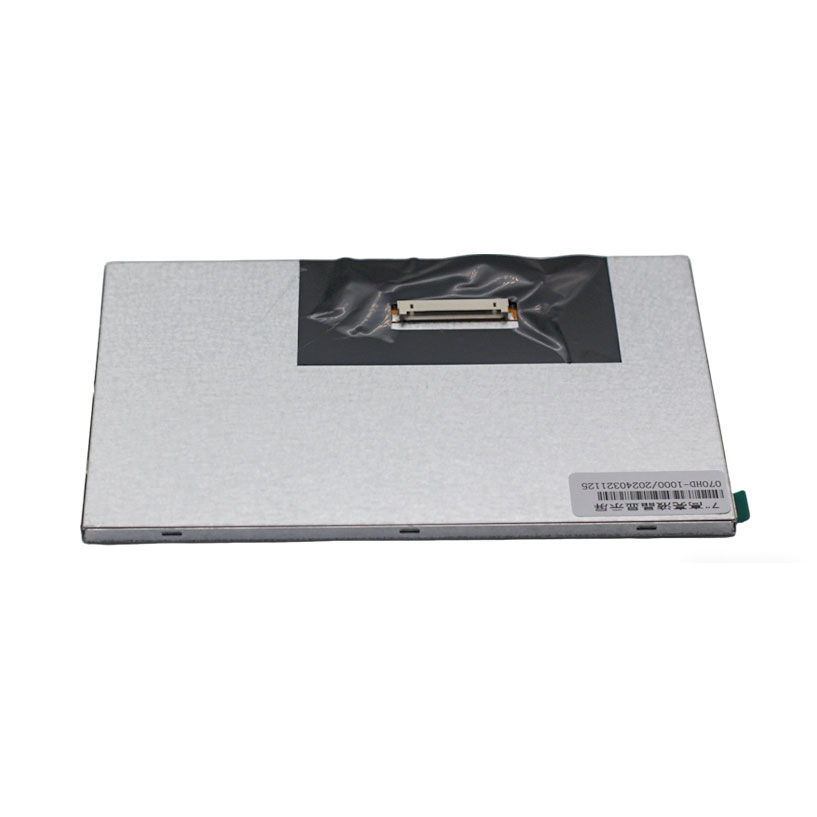

MIPI 40针信号——与我们的7" 接口系列相同；不同的电路板设计

Like the 7" module, this panel uses MIPI (40-pin) rather than a direct HDMI interface. If you're standardizing a product line across both sizes, your control board design can share the same MIPI driver IC — worth flagging to your hardware team if you're planning a multi-size product family rather than a single SKU.

What we can't tell you without your project specifics

The 178°/178° viewing angle and 8ms response time are panel-level constants at this size and won't change with customization. What we can adjust based on your application: brightness tuning below 2000 nits for indoor/semi-shaded deployments, backlight upgrade to the 50K-hour direct-lit variant for always-on installations, interface conversion off MIPI onto HDMI/RS232 control boards, and touch integration. Send us your power budget (AC or DC rail) and duty cycle (24/7 vs daylight-only) and we'll confirm within one engineering review whether the standard HT070FHD-2000 fits or needs a backlight/interface variant.
