TFT LCD模块的定制面板切割：工程师和采购团队需要知道什么

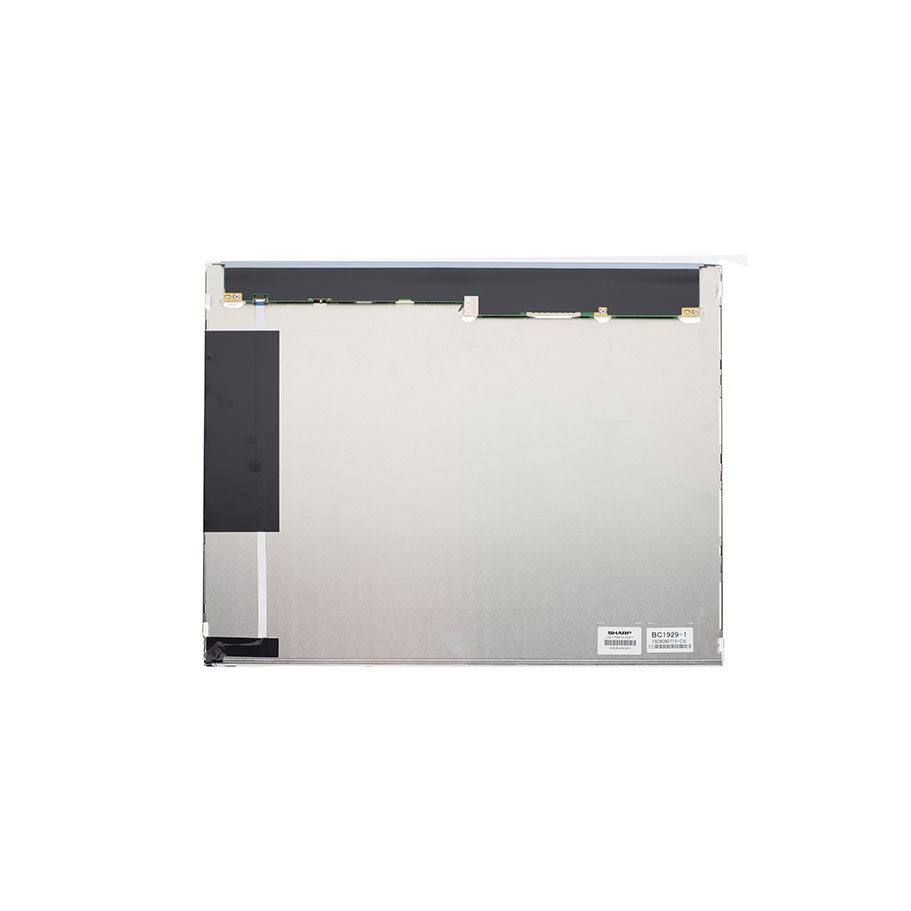

参考ce产品：HT190FHD-1000，19英寸；TFT液晶显示模块，1280×1024，376.32（H）×301.056（V）mm有效面积

Cutting a standard TFT panel down to a non-standard size — for a control panel retrofit, an instrument bezel, or a space-constrained enclosure — is one of the most common customization requests we receive from overseas OEM/ODM teams. It's also one of the most misunderstood, because the risk isn't in the concept, it's in the execution. Below is how we walk engineers, sourcing managers, and project owners through the process, from first drawing to mass production.

1.技术可行性：这个尺寸真的可以裁剪吗？

在报价之前，我们的工程团队会对目标尺寸和公差进行可行性检查。

• 切割方法 --我们根据最终尺寸、玻璃厚度和所需的边缘公差，在机械轮划线和超快激光切割之间进行选择。当切割线靠近活动显示区域或需要更严格的微裂纹控制时，通常建议使用激光切割；对于公差更大的直线切割，砂轮划线仍然具有成本效益。

• 电路间隙 — Every reduction is checked against the panel's Gate/Source trace layout and TFT array boundary. If your target dimension encroaches on active circuitry, we'll flag it during review rather than after tooling — this is the single most common reason a "simple" size change turns out not to be simple.

• 我们需要你做什么 — To confirm feasibility on our side, please share: the target outline dimension with tolerance, the reference edge/datum you're cutting from, the panel orientation, and (if available) the original panel's Gate/Source driver location. A simple 2D sketch with datum lines is usually enough for a first-pass check.

• 边缘质量标准 — Post-cut edge flatness and micro-crack control are held to a defined internal spec appropriate to the display's operating environment; this is confirmed in writing at quotation stage, not left implicit.

2. Reliability: How Do You Guarantee the Cut Edge Won't Fail in the Field?

刀刃的好坏取决于之后保护它的东西。

• 密封过程 — After cutting, we apply a secondary sealing process (UV dispensing or equivalent, selected per application) specifically to protect against moisture ingress and liquid crystal leakage at the newly exposed edge. This isn't optional — it's built into the cutting workflow.

• 可靠性测试 — Cut modules go through the same reliability regime as our standard panels, scaled to consumer-grade or industrial-grade requirements depending on the end application: 85°C/85%RH double-85 humidity testing, high/low temperature cycling, thermal shock, and structural drop testing. We're glad to share representative test data from comparable cutting projects on request.

• 密封后的光学性能 --在签收之前，我们专门检查密封边缘区域是否存在漏光和色偏（Mura），因为这是执行不佳的切割最明显的故障模式。

3.成本、产量和交付周期：你实际上应该为什么做预算？

• NRE和第一个样品 --定制切割项目对工具/夹具设置和工艺验证进行一次性NRE。首件样品（通常约20件）在报价时确认的规定交付周期内周转，没有开放式时间表。

• 批量生产产量 --基于过去的可比项目，我们预先为您的特定几何形状提供了一个现实的预期产量范围，而不是一个通用的数字——切割产量在很大程度上取决于切割线与活动区域的距离和所涉及的切割长度。

• 最低起订量 --定制切割、亮度或边框更改会影响标准最小起订量；这是在报价阶段确认的，在任何存款之前——事后从不调整。

为什么直接与我们交谈

作为制造商，而不是贸易代理，您的询问直接发送给将进行可行性检查并拥有流程的工程师，而不是来回传递您问题的销售层。这意味着图纸审查的周转更快，直接访问真实的测试数据而不是营销声明，以及根据成本报价。

有目标尺寸吗？ Send us your outline drawing and tolerance requirement, and we'll come back with a feasibility assessment, recommended cutting method, and budgetary NRE/lead time — before you commit to anything.
