拉伸条形显示器 可定制的

用于数字标牌的43英寸半户外条形液晶显示器

型号: HT430HDL-1000

亮度 1000 cd/m²
尺寸 43 英寸
决议 1920*可切割
纵横比 16:可切割

技术亮点

  • 阳光可读,超高亮度(3000+cd/m²)+自动亮度控制
  • 工业级可靠性(宽温度+室外保护)
  • 拉伸设计+OEM定制(面向项目的灵活性)

认证标准

ISO9001 CE 联邦通信委员会 有害物质限制

需要定制解决方案?

我们的工程团队随时准备为您提供专业的技术支持和灵活的定制服务。

了解灯光定制服务

技术规格

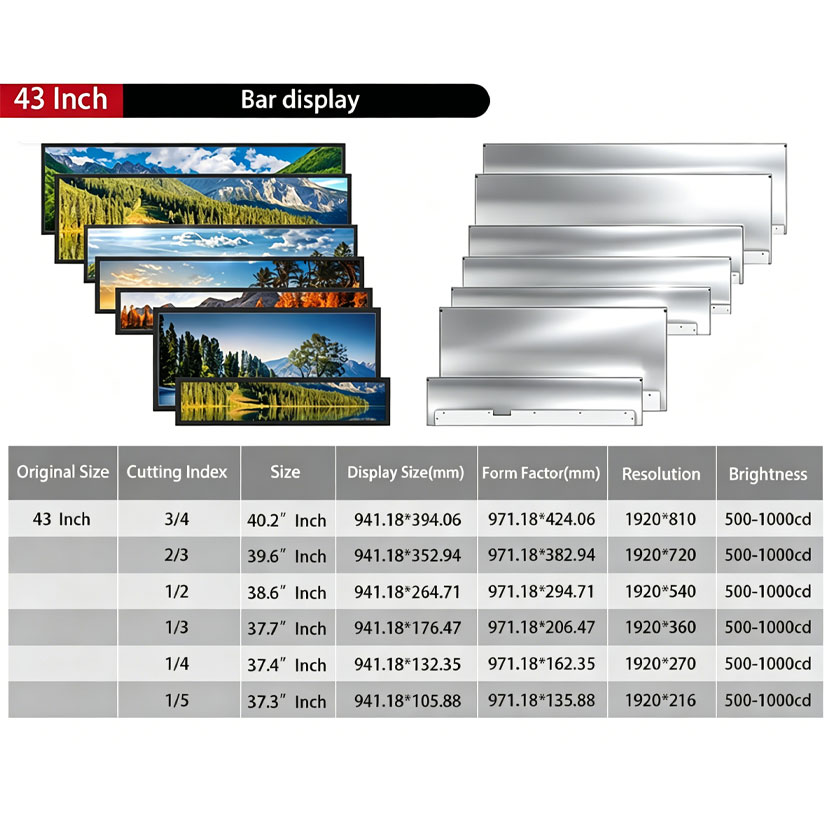

43英寸条形屏幕可切割成不同尺寸

原始大小切割指数尺寸显示器尺寸(mm)形状系数(mm)决心亮度
43英寸3/440.2";英寸941.18*394.06971.18*424.061920*810500-1000cd

2/339.6";英寸941.18*352.94971.18*382.941920*720500-1000cd

1/238.6";英寸941.18*264.71971.18*294.711920*540500-1000cd

1/337.7";英寸941.18*176.47971.18*206.471920*360500-1000cd

1/437.4";英寸941.18*132.35971.18*162.351920*270500-1000cd

1/537.3";英寸941.18*105.88971.18*135.881920*216500-1000cd



43英寸条形液晶屏技术规格

LCD面板参数HDMI/控制板规格
项目详情项目详情
描述HANNTU 43";QLED量子点高色域350CD输入接口HDMI,VGA
尺寸43电源输入交流100~240V
显示面积(mm)945.2(高)x 533.9(伏)OSD密钥5个按键(电源开关、菜单、+、-、退出)
决心1920*1080OSD控制亮度、颜色、对比度、自动旋转、H/V位置等。
宽高比16:9

对比度1200:1

每英寸像素(PPI)51

视角178(H)、178(V)

显示颜色16.7米,72%NTSC

响应时间(典型)8毫秒

信号类型LVDS(2通道,8位)

背光WLED,30K小时,带LED驱动器

功耗50W

尺寸(mm)945.2(高)x 533.9(伏)

安装VESA100x100

边框尺寸(U/B/L/R)15/15/15/15

工作温度0℃~+50℃

储存温度-20℃~+60℃

重量(净重)5KG

条形拉伸液晶显示器OEM/ODM产品布局说明

产品规格说明书

条形拉伸液晶显示器OEM/ODM布局说明

条形液晶屏定制简报

外形尺寸图

宽边/可定制窄边

屏幕类型

TFT-LCD拉伸条

拉伸条形显示器

标准尺寸

7″ — 49″

可定制非标准尺寸

宽高比

≥ 3 : 1

典型时间:16:3/16:4.5

亮度

400-2000尼特

高亮度户外版可选

布局区域划分

主要信息区

品牌标志、主标题和;核心推广内容,占布局的40-60%

次要信息区

滚动字幕、价格、日期和;时间、促销信息,占布局的20-40%

媒体播放区

图像和;视频旋转木马,可与其他区域自由组合和分割

辅助功能区

天气小工具、二维码、倒计时定时器,可根据客户要求定制

OEM模式

品牌定制

  • 客户提供布局设计草图

  • 按图纸批量生产

  • 打印客户品牌标志

  • 最低起订量要求低

  • 交货周期:4-6周

ODM模式

深入R&;D定制

  • 工厂参与布局设计

  • 完全定制结构和;软件

  • 独家模具开发

  • 需要保密协议

  • 交货周期:8-16周

定制检查表

屏幕尺寸和;决议确认
布局分区比
品牌颜色规格(Pantone/RAL)
字体授权文件
徽标矢量源文件(AI/SVG)
安装方式(壁挂式/嵌入式/杆式)
应用环境(室内/室外/半室外)
认证要求(CE/FCC/RoHS等)
触摸功能(可选)
预计年订单量(MOQ)

典型应用场景

超市货架酒吧屏幕  地铁车站引导屏幕  电梯广告屏  银行队列呼叫栏屏幕  冰箱门显示屏  公交车站公告屏幕  商城导航栏屏幕  展览展示栏屏幕

专业产品概述:用于数字标牌的43英寸高亮度条形液晶显示器

产品名称: 43英寸 高亮度条形液晶显示器
预期应用: 户外和室内数字标牌、广告显示屏、公共信息板和商业媒体墙
亮度: 500–1000尼特,在各种光照条件下实现最佳可见度
Design: Slim, modular bar structure for flexible installation in custom display layouts

Key Features & Technical Advantages

  1. High Brightness for Superior Outdoor Visibility

  • Adjustable luminance from 500 to 1000 nits ensures content remains clear under direct sunlight.

  • Enhanced contrast and anti-glare technology maintain image clarity in challenging environments.

  • Modular Bar Structure

    • Designed for seamless integration in long-format or multi-panel digital signage walls.

    • Simplifies installation and maintenance while supporting diverse layout configurations.

  • Durability and Weather Resistance

    • Built for outdoor deployment with robust protection against dust, moisture, and temperature fluctuations.

    • Complies with industrial-grade reliability standards for long-term operation.

  • Wide Viewing Angle & Consistent Image Quality

    • Full HD resolution ensures sharp, uniform visuals across the entire display.

    • Maintains high image fidelity in wide-angle viewing scenarios.

  • OEM and Customization Friendly

    • Supports branding, control interface customization, and system integration for professional solutions.

    • Flexible powering options accommodate various deployment requirements.

  • Energy Efficiency & Low Maintenance

    • Optimized for low power consumption without compromising brightness or performance.

    • Reliable design reduces maintenance needs and total cost of ownership.

    Ideal Applications

    • Outdoor and indoor advertising displays

    • Public transportation and information signage

    • Industrial monitoring panels

    • Large venues including stadiums, airports, and shopping centers

    Summary:
    43 inch high-brightness bar LCD is engineered for professional digital signage where visibility, flexibility, and reliability are paramount. Its high luminance, modular design, and rugged construction make it an ideal choice for OEM partners seeking premium display solutions for both indoor and outdoor environments.




    经验

    In our years of working with commercial display solutions, one clear lesson stands out: brightness and reliability are everything when it comes to bar LCDs for digital signage. A 43-inch high-brightness LCD, such as the ones rated between 500–1000 nits, demonstrates how careful product selection can transform a customer’s visibility and engagement in both indoor and semi-outdoor environments.

    Key Considerations We’ve Learned:

    1. Optimal Brightness: Displays below 500 nits often struggle in environments with ambient light. Conversely, displays exceeding 1000 nits deliver exceptional visibility but require careful thermal management to maintain longevity. Our experience shows that 500–1000 nits strikes the perfect balance for bar signage applications.

    2. Robust Design for Commercial Use: Long-term reliability is non-negotiable. Selecting displays with reinforced structures, anti-glare coatings, and industrial-grade components reduces downtime and ensures consistent performance.

    3. Versatility and Integration: B2B clients often need displays that seamlessly integrate with existing systems. Standardized interfaces like HDMI, VGA, or LVDS simplify integration, while intelligent OSD (On-Screen Display) controls allow precise tuning for different lighting conditions.

    4. Customer Experience First: Ultimately, a bar LCD is only as effective as its ability to convey information clearly. Our experience emphasizes not just raw specs, but how the display performs in real-world scenarios—whether it’s showcasing promotions at a busy bar, guiding patrons, or supporting interactive menus.

    From our perspective, choosing the right high-brightness bar LCD is less about chasing numbers on a datasheet and more about understanding operational context and long-term reliability. For businesses aiming to elevate their digital signage experience, this practical knowledge can save significant costs while delivering maximum impact.
