技术规格
| 项目 | 规格 |
|---|---|
| 模型 | WD430D-M2（带电路盒） |
| 外观 | 颜色：黑色面板；黑色边框/可定制 |
| 尺寸（长*宽*高）：964.8*552.8*72.3毫米 | |
| 材料：金属板 | |
| 安装方式：壁挂式、落地式、吸顶式 | |
| 包裹 | 包装尺寸：109*24*69厘米 |
| 净重：11.2kg/毛重：16.2kg | |
| 显示 | 小组：43"；TFT-LED |
| 显示面积/纵横比：941.2mm x 529.4mm/16:9 | |
| 最大分辨率：1920 x 1080 | |
| 亮度：2500cd/m²，自动线性光传感器 | |
| 对比度：1300:1 | |
| 视角（上/下/左/右）：89°/89°/89℃/89℃ | |
| 响应时间：6ms | |
| 颜色：1670万色 | |
| 电源和；功耗 | 输入：100V~240V交流电，功率≤155W |
| 主板和；接口 | CPU：RK3568，4核1.8GHz；GPU：4核Mali-T764 |
| 内存：2GB DDR3；存储空间：16GB（可扩展） | |
| 接口：2个外部USB、4个内部USB、1个SD卡插槽、1个RJ45 | |
| 1个LVDS，1个HDMI2.0（支持4K@60Hz输出，定制） | |
| 内置WiFi和；蓝牙；可扩展3G/4G | |
| 函数 | 操作系统：安卓9/安卓11 |
| 菜单语言：中文、英文、俄文、法文、西班牙文等多种语言 | |
| Video Format: RM/RMVB, MKV, TS, FLV, AVI, VOB, MOV, WMV | |
| Audio Format: MPEG-1 Layers I/II/III 2.0, MPEG-4 AAC-LC 5.1/HE-AAC 5.1/BSAC 2.0, WAV, 24-bit linear PCM 7.1 | |
| Image Format: BMP, JPEG, PNG, GIF | |
| 其他格式：PDF、PPT、SWF、文本、实时数据流 | |
| Screen Split: Video area, Image & text area, Scroll subtitle, LOGO, Date, Time, Week, Weather forecast, Real-time image & video area | |
| System Update: Update via SD card | |
| Management: Unified management, Group management, Multi-user management, Remote management, Timing power on/off | |
| Remote Control: Remote power on/off, Remote program edit & update, Remote status monitoring | |
| Play Mode: Loop play, Timed play, Interrupt play, etc. | |
| System Architecture: B/S (Browser/Server) architecture | |
| Network | LAN, WAN, WiFi, 3G |
| Speaker | Built-in dual mini speakers |
| 其他 | 使用寿命：50000小时 |
| 工作温度：-10℃~50℃ | |
| 储存温度：-20℃~60℃ | |
| 工作湿度：5%~90% | |
| Storage Humidity: 5% ~ 90% | |
| Security: Hardware dongle, Login password, Control password, Multi-level user permission | |
| Environmental Standard: All components and packaging comply with international environmental standards |

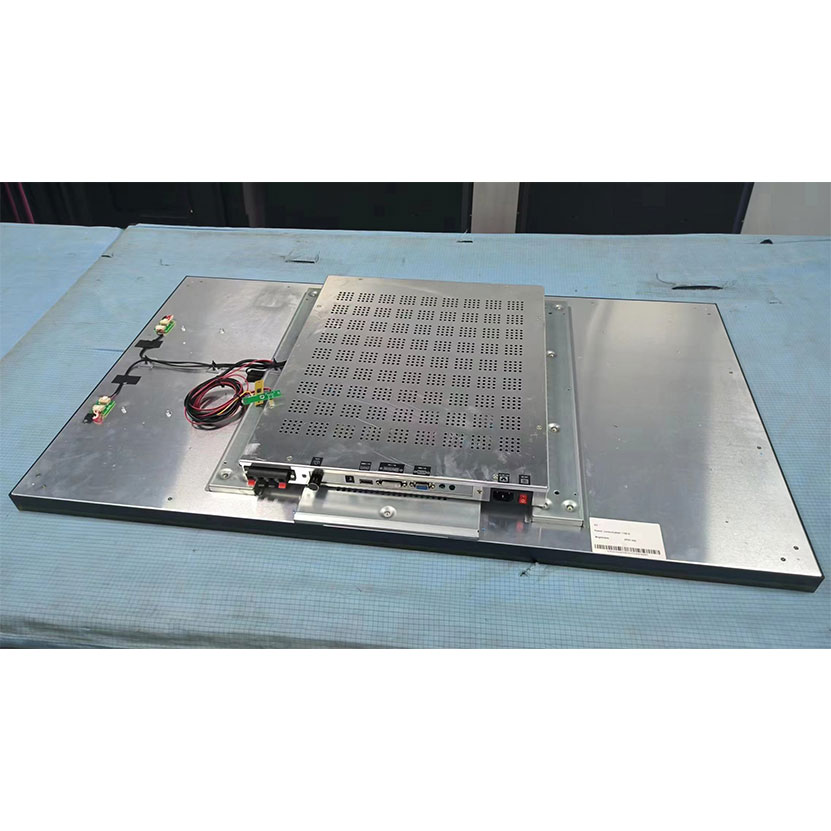

43-inch sunlight readable open frame LCD display product page — model WD430D-M2
OPEN FRAME MONITOR · MODEL WD430D-M2
43" Sunlight-Readable Open Frame LCD Display
Industrial-grade 2500 nit panel engineered for direct sunlight, high-ambient, and 24/7 mission-critical environments. OEM/ODM-ready with Android 9/11, built-in WiFi, and full remote management.
WHY 2500 NITS MATTERS
Direct sunlight intensity can reach ~10 000 lux. A standard consumer panel (250–350 nits) loses contrast almost entirely above 2000 lux. The WD430D-M2 delivers a guaranteed 10:1 contrast ratio at full outdoor exposure, keeping content legible for self-service kiosks, transport hubs, and outdoor DOOH installations.
Auto linear light sensor adjusts brightness dynamically — extends backlight lifespan and reduces energy consumption in shaded conditions.
TECHNICAL SPECIFICATIONS
DISPLAY
| Panel technology | TFT LED, 43" |
| Active area | 941.2 × 529.4 mm |
| 宽高比 | 16:9 |
| Max resolution | 1920 × 1080 |
| 亮度 | 2500 cd/m² (auto sensor) |
| 对比度 | 1300:1 |
| Viewing angle H/V | 89° / 89° (all sides) |
| Response time | 6 ms |
| Color depth | 16.7M colors |

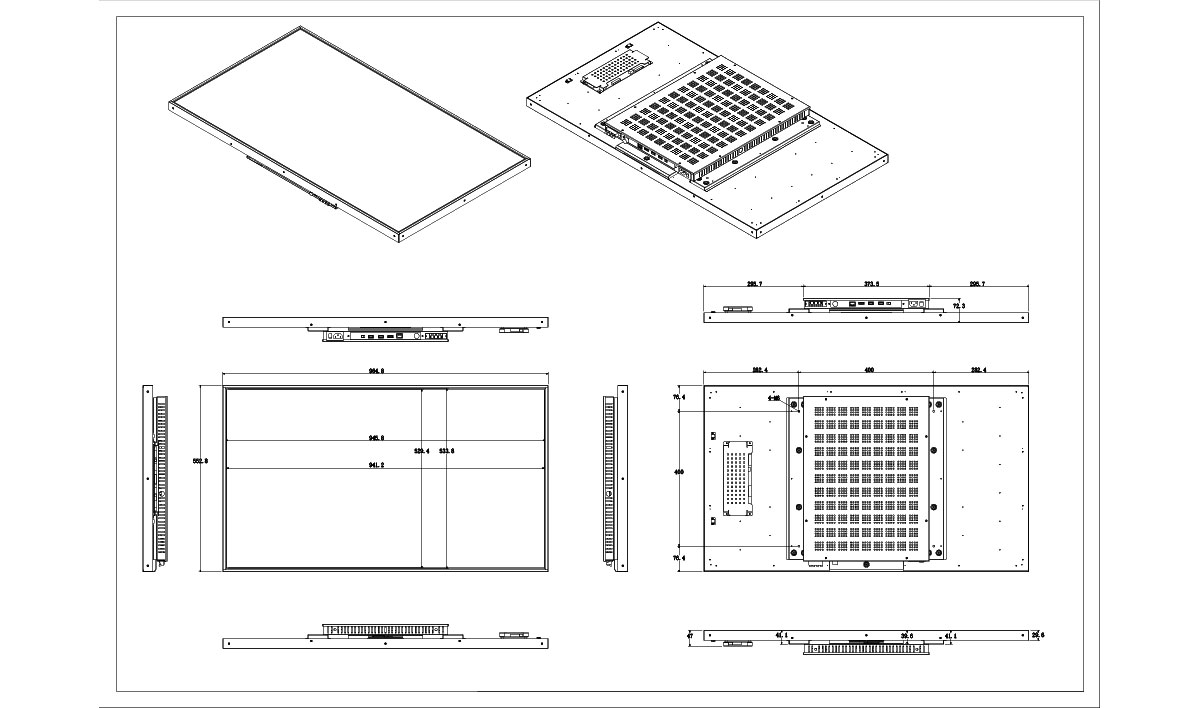

MECHANICAL
| Dimensions (L×W×H) | 964.8 × 552.8 × 72.3 mm |
| Net weight | 11.2 kg |
| Material | Sheet metal, black panel & bezel |
| 安装 | Wall, floor-stand, ceiling |
SYSTEM BOARD
| CPU | RK3568, 4-core 1.8 GHz |
| GPU | 4-core Mali-T764 |
| Memory / storage | 2 GB DDR3 / 16 GB (expandable) |
| OS | Android 9 / Android 11 |
| Interfaces | 2× USB (ext.), 4× USB (int.), SD, RJ45, LVDS, HDMI 2.0 |
| Wireless | WiFi + Bluetooth built-in; 3G/4G optional |
| Audio | Dual built-in speakers |
ENVIRONMENTAL
| Power input | 100–240 V AC, ≤155 W |
| Operating temp | −10°C to +50°C |
| Storage temp | −20°C to +60°C |
| Humidity | 5–90% RH (op. & storage) |
| Service life | 50 000 hours |
CONTENT & MANAGEMENT CAPABILITIES
TARGET APPLICATIONS
Retail & QSR kiosks
Storefront window displays and self-order terminals where sunlight washout is a persistent problem.
Transport & wayfinding
Departure boards, platform displays, and passenger information systems in daylit concourses.
Medical & clinical
Patient check-in, waiting-room signage, and OR scheduling boards where ambient lighting varies widely.
Industrial automation
Factory-floor HMI integration into custom enclosures — sheet metal chassis designed for direct embedding.
DOOH advertising
Semi-outdoor and covered-outdoor advertising structures needing high lux tolerance without full weatherproofing.
Gaming & amusement
Arcade cabinets, betting terminals, and redemption kiosks with vibrant, glare-free screens in mixed lighting.
OEM / ODM PROGRAM
The WD430D-M2 is engineered from the ground up as an integrator-friendly platform. Standard units ship in 10–15 days. Custom colour finishes (MOQ 20 pcs, 15-day lead time), brightness variants, connectivity modules, and enclosure modifications are available through HituLCD's engineering team.
Request a sample or technical brief
Engineering team responds within 24 hours. Samples and customisation quotes available on request.
