技术规格
| 模型 | WD650D-M2（带电路盒） |
| 外观 | |
| 面板和；表圈颜色 | 黑色面板，黑色边框/可定制 |

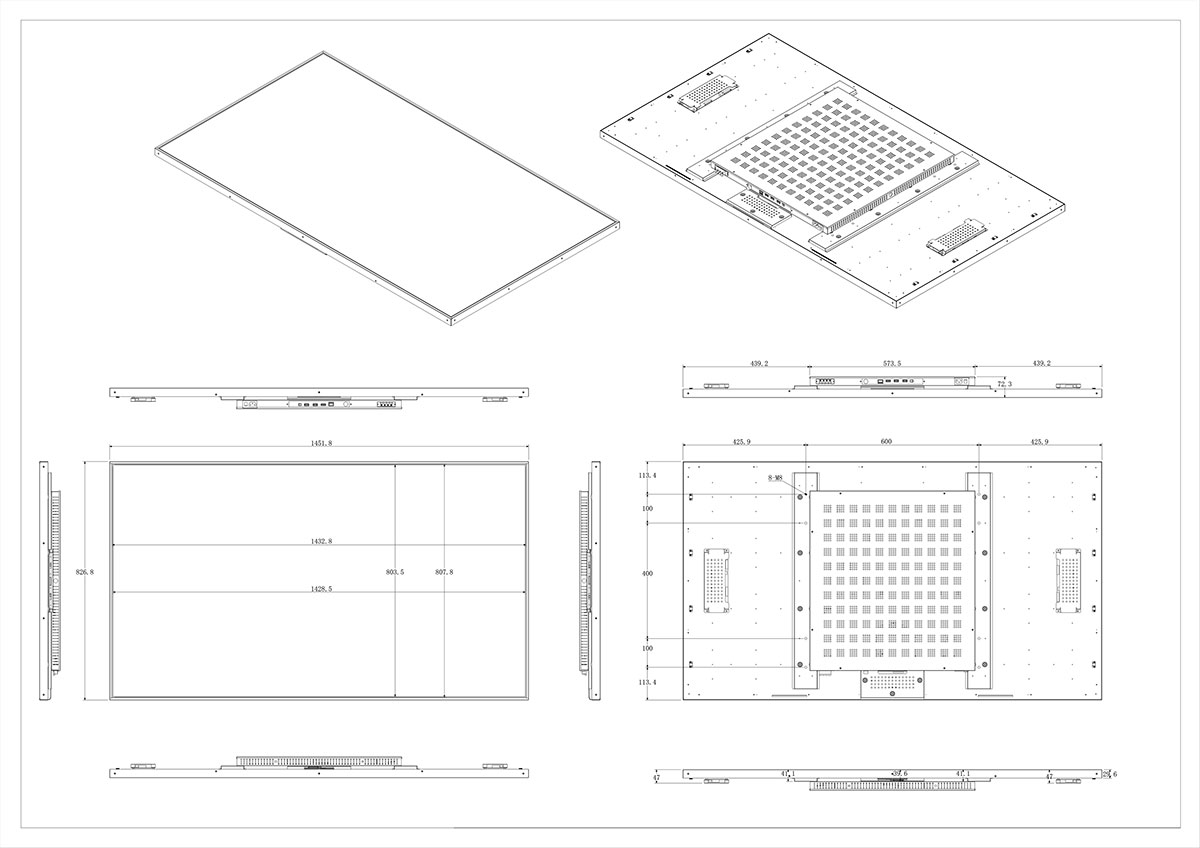

| 尺寸（长*宽*高） | 1451.8*826.8*72.3毫米 |
| 主体材质 | 钣金 |
| 安装方法 | 壁挂式、落地式、天花板式 |
| 包装 | |
| 包装尺寸 | 156*24*94厘米（每箱2个） |
| 净重 | 21公斤 |
| 毛重 | 26公斤 |
| 显示 | |
| 屏幕尺寸 | 65"；TFT-LED |
| 显示面积/纵横比 | 1428.5毫米x803.5毫米/16.9英寸 |
| 最大分辨率 | 3840*2160 |
| 亮度 | 3000cd/m²，自动线性光传感器 |
| 对比度 | 1300:1 |
| 视角（上/下/左/右） | 89°/89°/89°/89° |
| 响应时间 | 6ms |
| 颜色 | 1670万种颜色 |
| 电源和；功耗 | |
| 输入电压 | 100V ~ 240V交流电 |
| 最大功耗 | ≤360W |
| 主板和；接口 | |
| 芯片组 | RK3568，4核CPU 1.8GHz，4核Mali-T764 GPU |
| Memory & Storage | 2GB DDR3 RAM, 16GB Storage (Expandable) |
| External USB | 2 ports |
| Built-in USB | 4 ports |
| SD Card Slot | 1 port |
| RJ45 Network Port | 1 port |
| Video Interface | 1 x LVDS, 1 x HDMI2.0 (Support 4K@60Hz output, customized) |
| Wireless Network | Wi-Fi, Bluetooth, Expandable 3G/4G |
| 函数 | |
| Operating System | Android 9 / Android 11 |
| Menu Language | Chinese, English, Russian, French, Spanish and other multi-languages |
| Video Formats | RM/RMVB, MKV, TS, FLV, AVI, VOB, MOV, WMV |
| Audio Formats | MPEG-1 Layers I/II/III 2.0, MPEG-4 AAC-LC 5.1/HE-AAC 5.1/BSAC 2.0, WAV, 24-bit linear PCM 7.1 |
| Image Formats | BMP, JPEG, PNG, GIF |
| Other Supported Formats | PDF, PPT, SWF, Text, Real-time data stream |
| Screen Split Zones | Video area, Image & text area, Scrolling subtitle, LOGO area, Date, Time, Week, Weather forecast, Real-time image, Real-time video etc. |
| System Upgrade | Update via SD card |
| System Management | Unified management, Group management, Multi-user management, Remote management, Timed power on/off |
| Remote Operation | Remote power on/off, Remote program update & edit, Remote status monitoring |
| Playback Modes | Loop play, Timed play, Insert play and other modes |
| System Architecture | B/S (Browser/Server) architecture |
| Network Support | LAN, WAN, Wi-Fi, 3G |
| Built-in Speaker | Dual mini speakers |
| 其他 | |
| 使用寿命 | 50000 hours |
| 工作温度 | -20℃ ~ 95℃ |
| 储存温度 | -20℃ ~ 60℃ |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
| Security | Hardware dongle support, Login password, Control password, Multi-level user permission setting |
| Environmental Standard | All components and packaging materials comply with international environmental standards |
OPEN FRAME INDUSTRIAL MONITOR
65″ 3000-Nit Open Frame Industrial Monitor
Model: WD650D-M2 · 4K UHD · Android 11
3000
NITS
4K
3840×2160
50K
HOURS LIFE
CEFCCRoHSISO 900124/7 Rated
DISPLAY PERFORMANCE
3000 cd/m²
Peak brightness — visible in full ambient sunlight, lit atriums, and high-glare retail environments where standard commercial displays fail.
Auto Ambient Light Sensor
Linear light sensor continuously adjusts backlight output in real time — maximising content impact under changing lighting conditions while reducing power consumption during low-ambient periods.
Direct-Lit LED Backlight
Full-array direct-lit LEDs deliver even illumination across the entire 65″ panel, eliminating the hot-spot and edge-glow artefacts found in edge-lit configurations at this size.
1300:1 Native Contrast
Deep blacks combined with peak-white brightness render branded content and data visualisations with commercial-grade fidelity. 16.7 M colour support meets digital signage colour-accuracy standards.
178° / 178° Viewing Angles
IPS-grade 89°/89°/89°/89° (H/V) viewing angles ensure consistent colour rendering for audiences approaching the display from any direction — critical for lobbies, concourses, and open-plan retail.
ENGINEERING HIGHLIGHTS
Built for Continuous Deployment
Every specification targets the operational and integration demands that B2B system integrators, kiosk OEMs, and fleet operators encounter in practice.
Open Frame Form Factor
Bezel-only chassis with standardised mounting holes enables direct chassis integration into kiosks, vending units, and custom enclosures without retrofitting. Sheet metal body with multiple mounting orientations: wall, floor-stand, or ceiling.
24 / 7 Industrial Operation
Rated for continuous 24/7 duty with a 50,000-hour panel lifespan — approximately 5.7 years of uninterrupted runtime. Timed power on/off scheduling reduces thermal load during overnight off-peak hours when required.
4K UHD at 60 Hz
3840×2160 native resolution with HDMI 2.0 input supporting 4K@60Hz external source passthrough. Renders 4K promotional video, high-detail mapping, real-time dashboards, and multi-zone split-screen layouts without downscaling.
Android 11 + RK3568 SoC
Rockchip RK3568 quad-core CPU at 1.8 GHz with Mali-T764 GPU. 2 GB LPDDR3 + 16 GB eMMC (expandable). Runs standard Android signage software, browser-based DOOH players, and custom enterprise apps without an external media player.
Remote Fleet Management
B/S architecture CMS supports LAN, WAN, Wi-Fi, and expandable 4G. Remote power on/off, OTA content updates, group/multi-user permission tiers, and real-time status monitoring across unlimited device fleets from a single dashboard.
Multi-Layer Security
Hardware dongle authentication, login/control password layers, and multi-level user permission settings prevent unauthorised content modification — essential for regulated environments including banking, healthcare, and government.
INDUSTRY APPLICATIONS
Where It Operates
The WD650D-M2 is specified by integrators across verticals where sunlight readability, integration flexibility, and remote manageability are non-negotiable.
01
Retail & Quick-Service
Menued price boards, window-facing product promotions, and aisle endcap displays requiring 3000-nit output to overcome high ambient store lighting.
02
Transportation & Wayfinding
Passenger information systems at airports, transit hubs, and rail concourses. HDMI 2.0 and real-time data stream support enable live flight/train data overlays.
03
Industrial Automation & Control
HMI integration in factory lines and process-control rooms. Wide operating temperature range (−20 °C to 95 °C) supports harsh industrial environments.
04
Healthcare & Medical
Patient information displays, clinical wayfinding, and procedure scheduling boards. CE/FCC/RoHS compliance and multi-level security meet healthcare IT requirements.
05
Interactive Kiosks & Vending
Drop-in panel for self-service kiosk OEMs. Standardised open-frame mounting, 6-port USB array, and SD-card slot simplify peripheral integration.
06
Hospitality & Venue
Hotel lobby event boards, casino floors, sports arenas. Dual speakers, multi-zone split-screen layouts, and 4K video playback support premium guest experiences.
07
Corporate & Education
Executive briefing centres, campus directories, and lecture-theatre secondary displays. PPT/PDF native playback removes dependency on connected laptops.
08
Outdoor-Facing Window Display
Used behind single glazing on south-facing shop frontage or sun-lit atrium walls. Auto brightness sensor compensates for direct solar exposure throughout the day.
TECHNICAL SPECIFICATIONS
Full Datasheet — WD650D-M2
All specifications for the standard circuit-box configuration. OEM/ODM variants available on request.
| PARAMETER | 规格 |
|---|---|
| DISPLAY | |
| 屏幕尺寸 | 65"；TFT-LED |
| 最大分辨率 | 3840 × 2160 (4K UHD) |
| 亮度 | 3000 cd/m² — Automatic linear light sensor |
| 对比度 | 1300:1 |
| Viewing Angle (H/V) | 178° / 178° (89°/89°/89°/89°) |
| 响应时间 | 6 ms |
| Colour Depth | 16.7 M colours |
| Display Area | 1428.5 × 803.5 mm (16:9) |
| PHYSICAL | |
| Dimensions (L×W×H) | 1451.8 × 826.8 × 72.3 mm |
| 净重 | 21 kg |
| 主体材质 | Sheet metal |
| Panel / Bezel Colour | Black / Black (custom colours available MOQ 20 pcs) |
| 安装 | Wall-mount · Floor-stand · Ceiling-mount |
| COMPUTING PLATFORM | |
| 芯片组 | Rockchip RK3568 — Quad-core 1.8 GHz CPU + Mali-T764 GPU |
| RAM / Storage | 2 GB LPDDR3 / 16 GB eMMC (expandable) |
| Operating System | Android 9 / Android 11 |
| CONNECTIVITY | |
| Video Input | 1× LVDS · 1× HDMI 2.0 (4K@60Hz) |
| USB (External) | 2 ports |
| USB (Internal) | 4 ports |
| SD Card | 1× microSD slot |
| Network (Wired) | 1× RJ45 Ethernet |
| Wireless | Wi-Fi · Bluetooth · Expandable 3G/4G |
| Audio Output | Dual built-in speakers |
| POWER | |
| 输入电压 | 100 V–240 V AC (universal) |
| Max Power | ≤ 360 W |
| ENVIRONMENTAL | |
| 工作温度 | −20 °C to +95 °C |
| 储存温度 | −20 °C to +60 °C |
| Operating Humidity | 5% – 90% RH (non-condensing) |
| 使用寿命 | 50,000 hours |
| MEDIA & CONTENT | |
| Video Formats | RM/RMVB · MKV · TS · FLV · AVI · VOB · MOV · WMV |
| Image Formats | BMP · JPEG · PNG · GIF |
| Document Formats | PDF · PPT · SWF · Text · Real-time data stream |
| Screen Split Zones | Video · Image/Text · Ticker · Logo · Clock · Weather · Live feed |
| Playback Modes | Loop · Scheduled · Interrupt-play |
| MANAGEMENT | |
| CMS Architecture | B/S (Browser/Server) |
| Network Management | LAN · WAN · Wi-Fi · 3G/4G |
| Remote Operations | Power on/off · Content update/edit · Status monitoring |
| User Management | Unified · Group · Multi-user · Permission tiers |
| System Update | OTA or SD card |
| Security | Hardware dongle · Login password · Control password · Multi-level permissions |
| CERTIFICATIONS | |
| Standards | CE · FCC · RoHS · ISO 9001 |
| Languages | English · Chinese · Russian · French · Spanish + more |
I/O & INTEGRATION
Every Port, Accounted For
Designed so system integrators can connect peripheral hardware without an external hub, switch, or media player in most deployment configurations.
VIDEO & DISPLAY
HDMI 2.0 Input4K @ 60 Hz
LVDS Interface1 × port
Internal Resolution3840 × 2160
USB & STORAGE
External USB Ports2 × USB-A
Internal USB Ports4 × USB
SD Card Slot1 × microSD
Internal Storage16 GB eMMC
NETWORK
Ethernet1 × RJ45
Wi-FiBuilt-in
BluetoothBuilt-in
Cellular3G/4G expandable
POWER & AUDIO
AC Input100–240 V
Max Draw≤ 360 W
Speakers2 × built-in
DURABILITY & RELIABILITY
Engineered to Stay Running
Component selection and thermal design target the real-world demands of year-round outdoor-facing and industrial deployments — not bench-test conditions.
50,000h
PANEL LIFESPAN
24/7
RATED OPERATION
115°C
OPERATING TEMP RANGE
85%
MAX HUMIDITY (RH)
OPERATING TEMPERATURE
−20 °C to +95 °C
Covers unheated warehouses, rooftop enclosures, and equatorial outdoor kiosks within a single SKU.
HUMIDITY TOLERANCE
5% – 90% RH
Non-condensing. Suitable for coastal retail environments, covered transit platforms, and food-service areas.
POWER INPUT
100 V – 240 V AC
Universal input accepts North American (120 V), European (230 V), and Asian grid standards — one unit for global deployment.
OEM / ODM SERVICES
Customise to Specification
HituLCD's engineering team supports full mechanical and electronic customisation for product OEMs, kiosk manufacturers, and display integrators with volume requirements.
PRODUCTION LEAD TIMES
Standard stock unit3–5 days
Bulk order (standard config)10–15 days
Custom colour (MOQ 20 pcs)15 days
Full OEM / ODM programme25–35 days
Engineering sample7–10 days
PACKAGING
The 65″ unit ships individually in a double-walled honeycomb carton (156 × 24 × 94 cm, gross weight 26 kg) rated for sea freight and air freight stacking loads. Smaller units (21.5″–55″) packed individually in heavy-duty carton.
