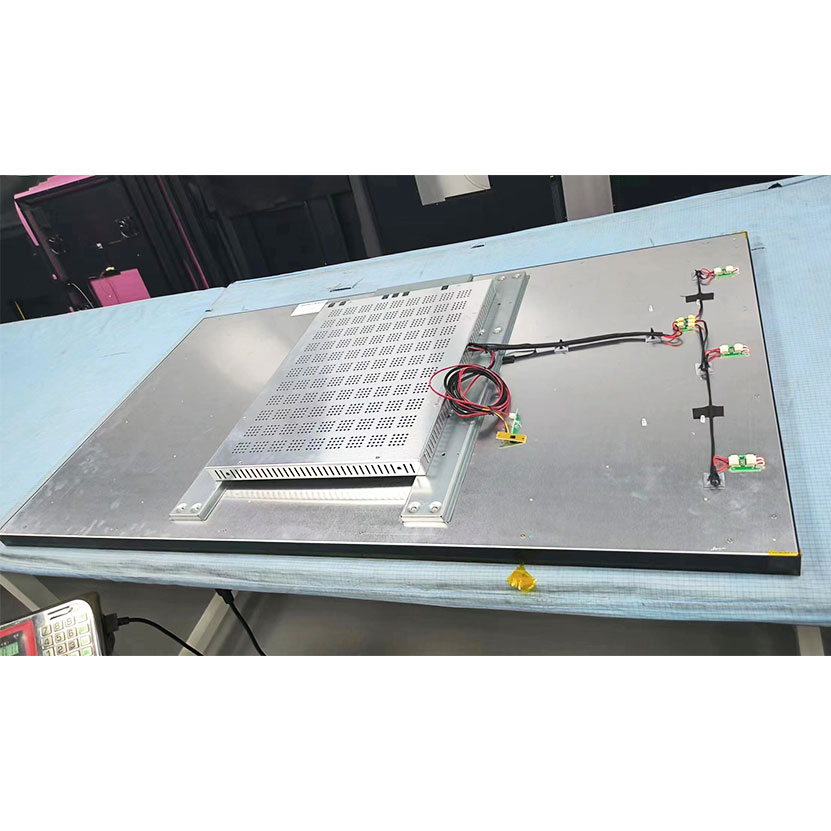

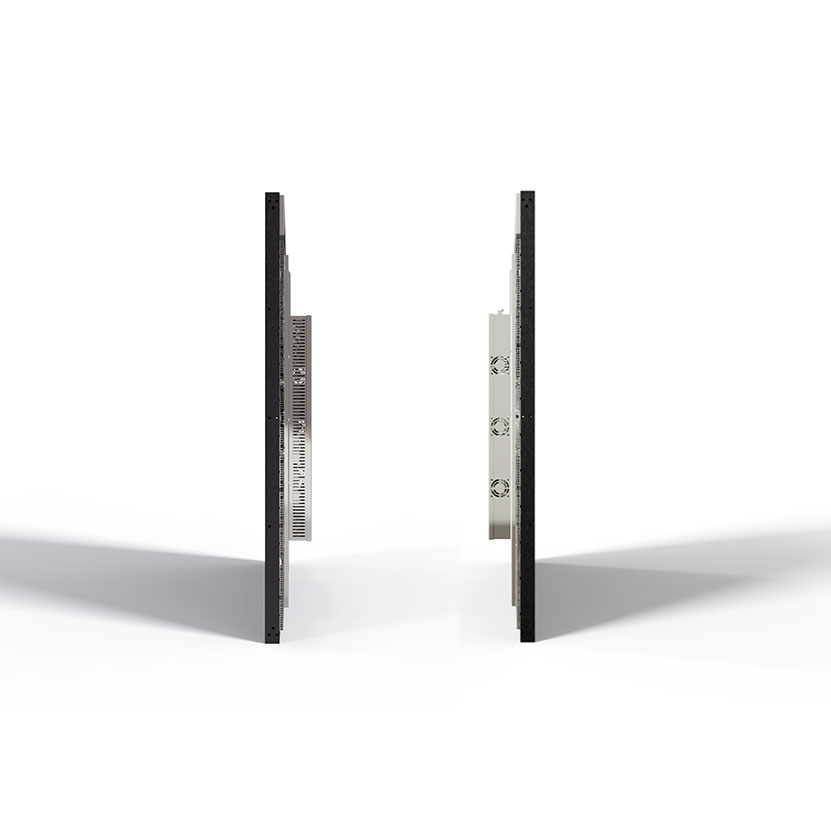

开放式帧监视器 可定制的

75英寸开放式数字标牌显示器

型号: 宽度750d-M2

亮度 3000 cd/m²
尺寸 75 英寸
决议 3840*2160
纵横比 16:9

技术亮点

  • 批量订单交付周期:10~15天
  • 21.5~55英寸;用重型纸箱单独包装;65";用蜂窝纸箱单独包装
  • 定制其他颜色:最小起订量20件,交货期15天

认证标准

ISO9001 CE 联邦通信委员会 有害物质限制

需要定制解决方案?

我们的工程团队随时准备为您提供专业的技术支持和灵活的定制服务。

了解灯光定制服务

技术规格

类别参数
模型WD750D-M2(带电路盒)
外观颜色:黑色面板;黑色边框/可定制
尺寸(长*宽*高):1674*953*72.3毫米
材料:金属板
安装方式:壁挂式、落地式、吸顶式
包裹包装尺寸:187*34*116厘米
重量:净重31.5公斤,毛重36.5公斤
显示小组:75";TFT-LED
显示面积/纵横比:1649.7mm×927.9mm/16:9
最大分辨率:3840×2160
亮度:3000cd/m²,自动线性光感
对比度:1300:1
视角:上/下/左/右89°/89°/89度/89°
响应时间:6ms
颜色深度:1670万色
电源和;功耗输入:100V~240V交流电,功率≤420W
主板和;接口SoC:RK3568,4核CPU@1.8GHz,4核Mali-T764 GPU
       内存:2GB DDR3,存储:16GB(可扩展)
       接口:2个外置USB、4个内置USB、1个SD卡插槽、1个RJ45
       1个LVDS,1个HDMI 2.0(4K@60Hz输出,定制)
       连接:Wi-Fi、蓝牙、3G/4G可扩展
函数操作系统:安卓9/安卓11
菜单语言:中文、英文、俄文、法文、西班牙文及其他语言
视频格式:RM/RMVB、MKV、TS、FLV、AVI、VOB、MOV、WMV
音频格式:MPEG-1层I/II/III 2.0、MPEG-4 AAC-LC 5.1、HE-AAC 5.1、BSAC 2.0、WAV、24位线性PCM 7.1
图像格式:BMP、JPEG、PNG、GIF
其他格式:PDF、PPT、SWF、文本、实时数据流
屏幕分区:视频区、图像和;文本区域、滚动字幕、LOGO区域、日期、时间、周、天气预报、实时图像和;视频区域
固件升级:通过SD卡更新
系统管理:统一管理、组管理、多用户管理、远程管理、定时开机/关机
远程控制:远程电源开/关、远程程序编辑和;更新,远程状态监控
播放模式:循环播放、定时播放、中断播放
系统架构:先进的B/S(浏览器/服务器)架构
网络与;音频:局域网、广域网、无线网络、3G;内置双迷你扬声器
其他使用寿命:50000小时
工作温度:-10℃~50℃
储存温度:-20℃~60℃
工作湿度:5%~90%
Storage Humidity: 5% ~ 90%
Security & Standard: Support hardware dongle, login password, control password and multi-level user permissions. All components and packaging materials comply with international environmental standards.

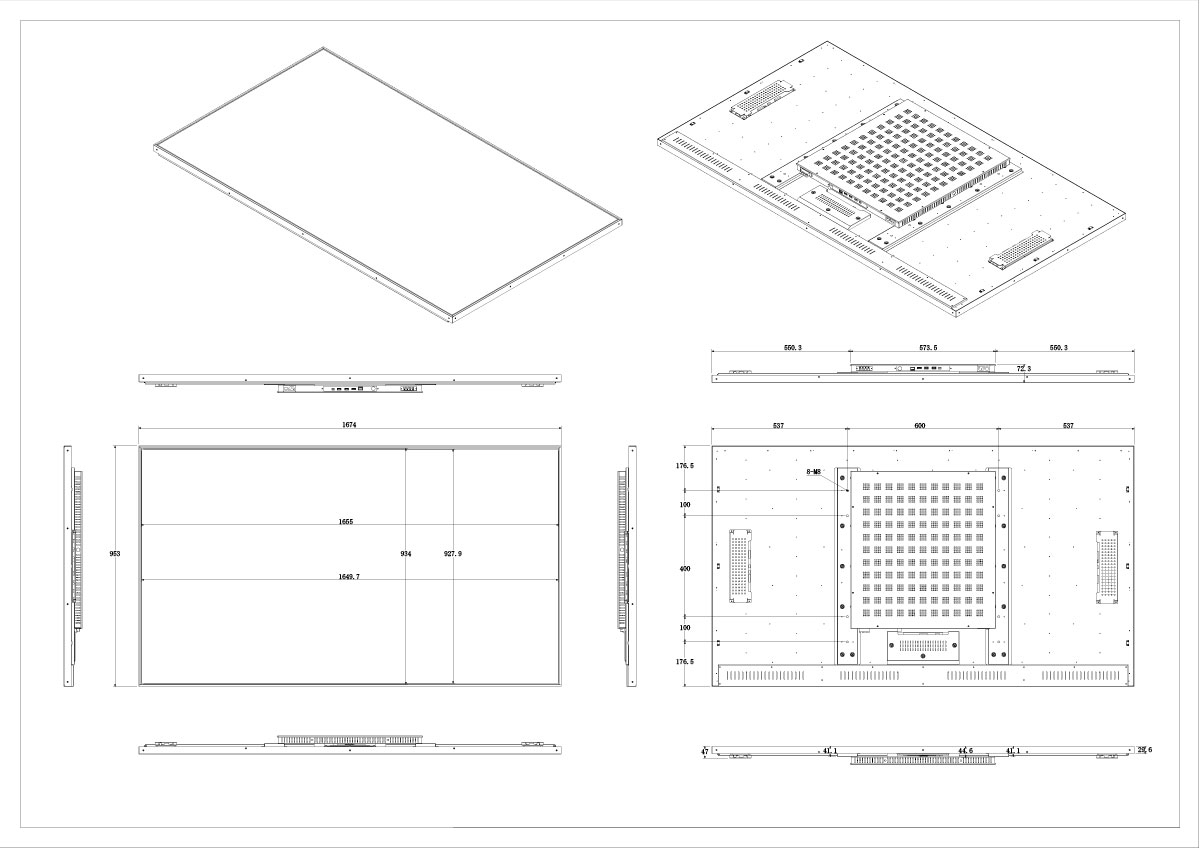

75-inch-open-frame-display

STRETCHED BAR DISPLAY · OPEN FRAME

75" Open Frame Digital Signage Display

Model: WD750D-M2  ·  Android 9 / 11  ·  24/7 Rated

3000NITS BRIGHTNESS
4K3840 × 2160
16:9纵横比
50KHRS SERVICE LIFE
CE联邦通信委员会有害物质限制ISO 9001

Bulk order lead time: 10–15 business days  ·  Sample units available  ·  OEM/ODM supported


PRODUCT ADVANTAGES

Built for demanding B2B deployments

01
High-Brightness, All-Day Visibility

At 3000 cd/m² — roughly six times a standard commercial display — this panel cuts through ambient light in airports, transit concourses, flagship retail floors, and sun-exposed lobbies. Auto linear light sensing continuously adjusts output to preserve backlight lifespan without manual calibration.

02
Integrated Android Platform

The onboard RK3568 SoC (quad-core 1.8 GHz, 2 GB RAM, 16 GB eMMC) eliminates the need for an external media player. Supports HDMI 2.0 passthrough for AV integrators who prefer a dedicated source. Android 11 provides a familiar deployment baseline for enterprise CMS software.

03
Remote Fleet Management

Browser/Server architecture means zero client software to install. IT teams can schedule content, push firmware, reboot individual units, or manage user permission tiers from any network location. Timed power on/off reduces energy costs for overnight deployments.

04
Flexible Connectivity

Dual external USB, 4 internal USB, SD card, RJ45 Ethernet, LVDS, HDMI 2.0, and optional 3G/4G modem. Supports LAN, WAN, and Wi-Fi simultaneously. Dual built-in speakers reduce peripheral cabling. Every port can be accessed without removing the display from its mount.

05
Wide Operating Temperature

Rated −10 °C to +50 °C operating, −20 °C to +60 °C storage. Suitable for unconditioned spaces, covered outdoor canopies, and refrigerated aisle-end placements. 50,000-hour backlight life equates to over five years of 24/7 operation before first-service intervals.

06
OEM/ODM from 20 Units

Custom bezel colour, interface layout, logo silk-screen, brightness tier, and operating system image. Honeycomb carton packaging at 65"+ protects units during intercontinental freight. Pre-production samples available before committing to full runs.


APPLICATION SCENARIOS

Where this display is deployed

Retail & QSR Menu Boards

3000-nit brightness ensures promotional content remains vivid under powerful in-store lighting. 16:9 landscape orientation matches standard content templates used by major QSR and grocery chains. Remote playlist scheduling supports daypart pricing without on-site technician visits.

Transportation & Wayfinding

Airport terminals, train stations, and bus depots require around-the-clock operation and fast content updates. The open-frame chassis fits into custom kiosk enclosures designed by systems integrators. VESA and non-standard mounting patterns available on request.

Corporate Lobbies & Offices

Floor-to-ceiling glass lobbies flood displays with indirect daylight. At 3000 nits, this panel delivers legible wayfinding and brand content where a 500-nit consumer display would wash out entirely. Multi-user CMS access lets marketing teams publish content without involving IT.

Hospitality & Venue Signage

Hotels, convention centres, and sports venues benefit from a single platform managing hundreds of screens across properties. B/S remote management, grouped scheduling, and interrupt-playback for live announcements reduce operational staffing overhead significantly.

Healthcare & Public Institutions

Waiting area information displays, patient flow boards, and emergency notice systems demand reliable 24/7 operation. Hardware-dongle security, multi-level user permissions, and login password protection meet the compliance requirements common in healthcare and government environments.

Industrial & Control Room

Wide-temperature rating and HDMI 2.0 input support control-room monitoring applications where feeds from multiple sources are displayed simultaneously. The sheet-metal chassis is compatible with rack-mount and panel-mount adapters fabricated by local integrators.


TECHNICAL DOCUMENTATION

Full Technical Specifications

PANEL
PANEL TECHNOLOGY75" TFT LED (IPS)
ACTIVE DISPLAY AREA1649.7 mm × 927.9 mm
纵横比16:9
MAX RESOLUTION3840 × 2160 (4K UHD)
OPTICAL PERFORMANCE
亮度3000 cd/m² — with auto linear ambient light sensing
CONTRAST RATIO1300:1
VIEWING ANGLE89° / 89° / 89° / 89° (Up / Down / Left / Right)
RESPONSE TIME6 ms
COLOR DEPTH16.7 million colors (8-bit)

OEM / ODM SERVICES

Custom configurations for integrators and resellers

What can be customised

  • Bezel and panel colour (MOQ 20 pcs, 15-day lead time)

  • Brightness tier — from 500 nits up to 3000+ nits

  • Interface layout — add or reposition ports to suit enclosure design

  • Operating system image — pre-loaded CMS, kiosk lockdown, custom launcher

  • Logo silk-screen on chassis and startup boot screen

  • RAM / storage upgrades (4 GB / 32 GB available)

  • 4G/LTE modem integration for locations without fixed network

  • Custom VESA / non-standard mounting patterns

Working with HituLCD

  • Sample units available before committing to production runs

  • Dedicated engineering contact throughout project lifecycle

  • Bulk order lead time: 10–15 business days (standard config)

  • Pre-shipment QA inspection available; third-party inspection supported

  • Export to US, EU, UK, AU — CE and FCC documentation provided

  • DDP and FOB shipping terms available

For system integrators: HituLCD can supply displays pre-configured with your CMS agent, locked to your management platform, and shipped in co-branded packaging. Minimum configuration changes start at MOQ 20 pcs. Contact the engineering team with your full requirements for a detailed feasibility and pricing response within 24 hours.
