技术规格
| 项目 | 规格 |
|---|---|
| 模型 | WD860D-M2（带电路盒） |
| 外观 | 颜色：黑色面板；黑色边框/可定制 |
| 尺寸（长*宽*高）：1925.5*1096.5*72.3毫米 | |
| 材料：金属板 | |
| 安装 | 壁挂式、落地式、天花板式 |
| 包裹 | 包装尺寸：209*21*126厘米 |
| 重量：净重47.5公斤/毛重52.5公斤 | |
| 显示 | 屏幕尺寸：86英寸；TFT-LED |
| 显示面积/纵横比：1895mm x 1066mm/16:9 | |
| 最大分辨率：3840*2160 | |
| 亮度：2500cd/m²，自动线性光传感器 | |
| 对比度：1300:1 | |
| 视角：上/下/左/右89°/89°/89度/89° | |
| 响应时间：6ms | |
| 颜色：1670万色 | |
| 电源和；功耗 | 100V~240V交流电，≤850W |
| 主板和；接口 | 芯片组：RK3568，4核CPU 1.8GHz，4核Mali-T764 GPU 内存：2GB DDR3，存储：16GB（可扩展） |
| 2个外部USB、4个内部USB、1个SD卡插槽、1个RJ45 1 x LVDS，1 x HDMI2.0（支持4K@60Hz，定制） 内置Wi-Fi/蓝牙，可扩展3G/4G | |
| 函数 | 操作系统：安卓9/安卓11 |
| 菜单语言：中文、英文、俄文、法文、西班牙文等多种语言 | |
| 视频格式：RM/RMVB、MKV、TS、FLV、AVI、VOB、MOV、WMV | |
| 音频格式：MPEG-1层I/II/III 2.0、MPEG-4 AAC-LC 5.1/HE-AAC 5.1/BSAC 2.0、WAV、24位线性PCM 7.1 | |
| 图像格式：BMP、JPEG、PNG、GIF | |
| 其他格式：PDF、PPT、SWF、文本、实时数据流 | |
| 屏幕布局：视频区、图像和；文本区域、滚动字幕、LOGO区域、日期、时间、周、天气预报、实时图像和；视频区域 | |
| 升级模式：通过SD卡更新 | |
| 管理：统一/组/多用户/远程管理，定时开机/关机 | |
| 远程控制：远程电源开/关、程序更新和；编辑，状态监控 播放模式：循环、计时、插入播放 架构：B/S（浏览器/服务器） 网络：LAN、WAN、Wi-Fi、3G Audio: Built-in dual mini speakers | |
| 其他 | Lifespan: 50000 hours |
| 工作温度：-10℃~50℃ | |
| 储存温度：-20℃~60℃ | |
| 工作湿度：5%~90% | |
| Storage Humidity: 5% ~ 90% | |
| Security: Hardware dongle, Login & control password, Multi-level user permission Environmental Standard: All components & packaging comply with international environmental standards |
86" 2500nits Sunlight Readable Open Frame Monitor (WD860D-M2)
Engineered for outdoor and semi-outdoor B2B deployments, the WD860D-M2 delivers 2500cd/m² brightness with auto light-sensor dimming — built for European and North American transit hubs, retail storefronts, fuel stations, and industrial control rooms where ambient light is unpredictable.
Why B2B Buyers Choose This Display
| 4K UHD Resolution | 3840×2160 with 16:7 wide-format ratio — sharp, professional visuals for digital signage and control dashboards. |
| Industrial 24/7 Rated | 50,000-hour lifespan, -10°C to 50°C operating range — reliable for continuous-run commercial environments. |
| Compliance Ready | CE, FCC, RoHS, ISO9001 certified — meets EU and US import & regulatory requirements out of the box. |
| Flexible Mounting | Wall-mounted, floor-standing or ceiling-mounted sheet metal chassis fits diverse installation projects. |
| Smart Android System | RK3568 quad-core CPU, Android 9/11, built-in Wi-Fi/BT, expandable 4G — supports remote multi-screen management. |
Key Specifications
Model: WD860D-M2 (with circuit box)
亮度： 2500 cd/m² with auto linear light sensor
Contrast Ratio: 1300:1 | Viewing Angle: 89°/89°/89°/89°
Response Time: 6ms | Color: 16.7M
Power: 100–240V AC, ≤850W
Storage: 2GB RAM / 16GB expandable
Net Weight: 47.5kg | Gross: 52.5kg

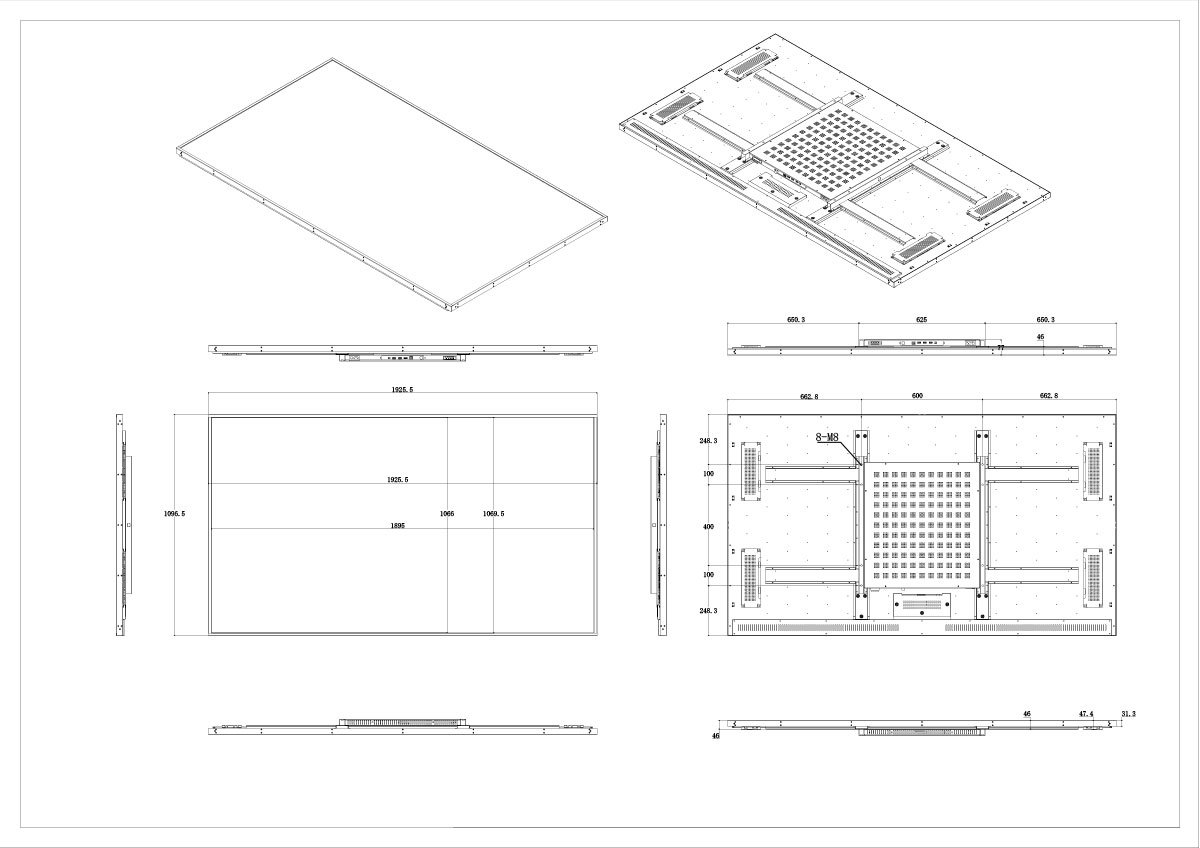

Dimensions: 1925.5 × 1096.5 × 72.3 mm
OEM/ODM & Custom Solutions for Trade Partners
We support full OEM/ODM customization for European and American distributors — custom bezel colors (MOQ 20pcs, 15-day lead time), custom branding/logo, alternative resolutions, brightness levels, and connectivity options (4G/LTE for North American carrier bands, multi-language OSD for EU markets).
Bulk order lead time: 10–15 days. Robust export packaging: individually boxed in heavy-duty carton, with reinforced honeycomb packaging for large-format units to minimize freight damage on ocean shipping.
Typical Applications
Ready to Scale Your Project?
Request a sample, technical datasheet, or custom quote — our engineering team responds within 24 hours.
