开放式帧监视器 可定制的

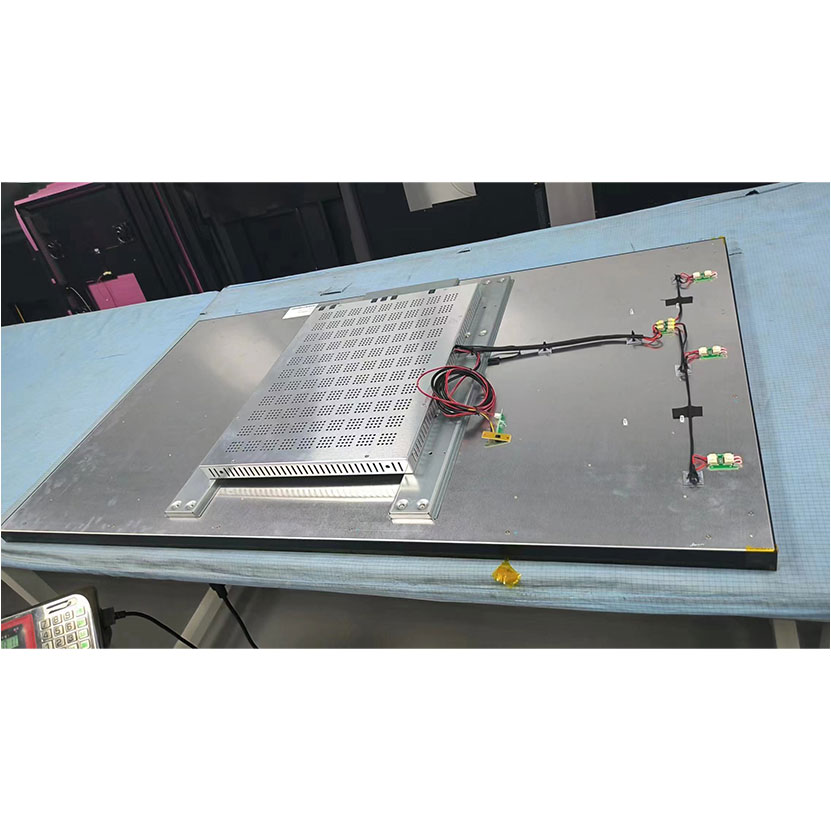

55英寸高亮度液晶开架显示器

型号: WD550D-M2

亮度 2500 cd/m²
尺寸 55 英寸
决议 3840*2160
纵横比 16:9

技术亮点

  • 批量订单交付周期:10~15天
  • 21.5~55英寸;用重型纸箱单独包装;65";用蜂窝纸箱单独包装
  • 定制其他颜色:最小起订量20件,交货期15天

认证标准

ISO9001 CE 有害物质限制 联邦通信委员会

需要定制解决方案?

我们的工程团队随时准备为您提供专业的技术支持和灵活的定制服务。

了解灯光定制服务

技术规格

项目规格
模型WD550D-M2(带电路盒)
外观颜色:黑色面板;黑色边框/可定制
尺寸(长*宽*高):1232.8*703.8*72.3毫米
材料:金属板
安装壁挂式、落地式、天花板式
包裹包装尺寸:134*24*81厘米
净重:16kg/毛重:21KG
显示小组:55";TFT-LED
显示面积/纵横比:1209.6mm x 680.4mm/16:9
最大分辨率:3840*2160
亮度:2500cd/m²,自动线性光传感器
对比度:1300:1
视角(上/下/左/右):89°/89°/89℃/89℃
响应时间:6ms
颜色:1670万色
电源和;功耗100V~240V交流电,≤260W
主板和;接口CPU:RK3568,4核1.8GHz;GPU:4核Mali-T764
RAM:2GB DDR3;存储空间:16GB(可扩展)
2个外部USB、4个内部USB、1个SD卡插槽、1个RJ45
1 x LVDS,1 x HDMI2.0(支持4K@60Hz,可定制)
内置WiFi/蓝牙,可扩展3G/4G
函数操作系统:安卓9/安卓11
菜单语言:中文、英文、俄文、法文、西班牙文等多种语言
视频格式:RM/RMVB、MKV、TS、FLV、AVI、VOB、MOV、WMV
音频格式:MPEG-1层I/II/III 2.0、MPEG-4 AAC-LC 5.1/HE-AAC 5.1/BSAC 2.0、WAV、24位线性PCM 7.1
图像格式:BMP、JPEG、PNG、GIF
其他格式:PDF、PPT、SWF、文本、实时数据流
屏幕分区:视频区、图像和;文本区域、滚动字幕、LOGO、日期、时间、周、天气预报、实时图像和;视频区域
升级模式:通过SD卡更新
管理与;播放:统一/组/多用户管理,远程管理,定时开机/关机
远程控制:远程电源开/关、程序编辑/更新、状态监控
播放模式:循环、定时、插入播放;B/S架构
网络:局域网、广域网、WiFi、3G
内置迷你双扬声器
其他寿命:50000小时
工作温度:-10℃~50℃
储存温度:-20℃~60℃
工作湿度:5%~90%
储存湿度:5%~90%
安全:硬件加密狗、登录和;控制密码,多级用户权限
Environmental Standard: All components and packaging comply with international environmental standards

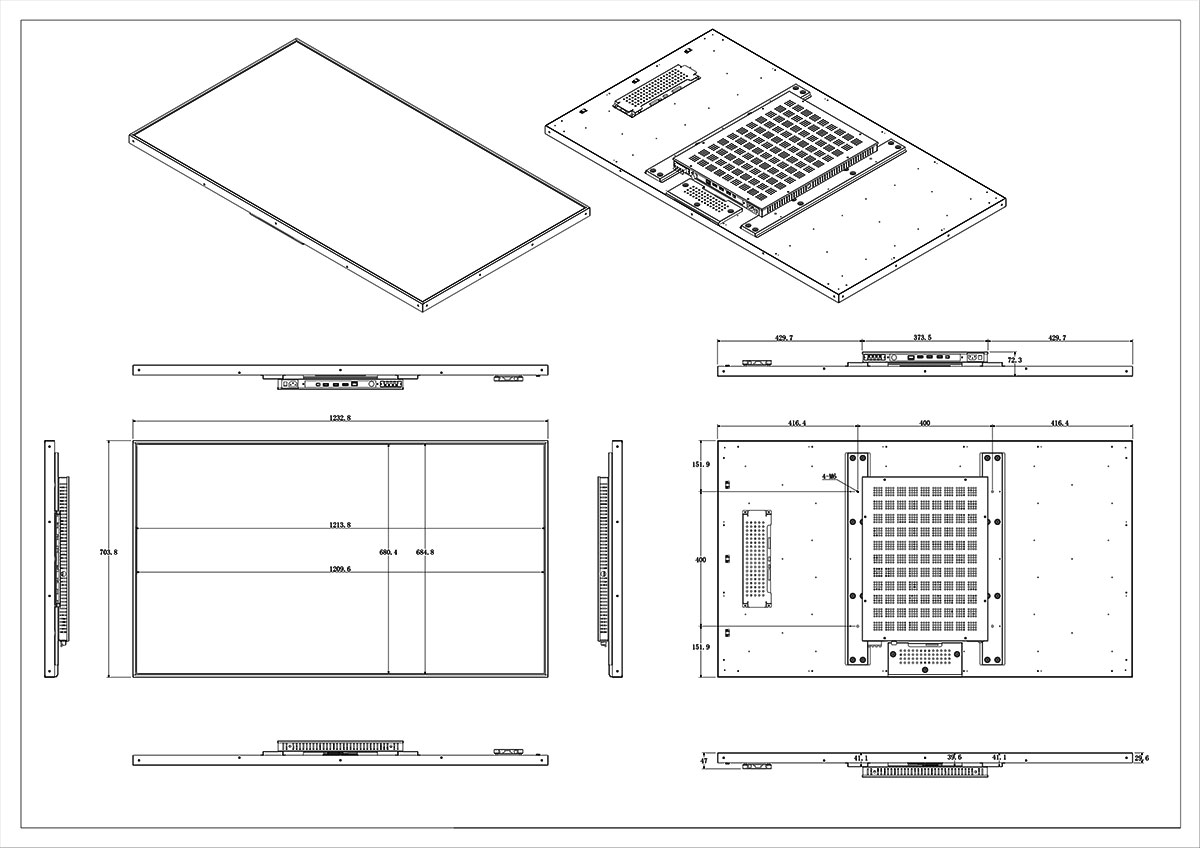

55-inch-open-frame-display


55-INCH
HIGH BRIGHTNESS
OPEN FRAME
LCD MONITOR

Model: WD550D-M2  /  4K UHD  /  Android 11

Built for integrators who need a display that disappears into the enclosure and keeps working. The WD550D-M2 delivers 2,500 cd/m² across a 55-inch 4K panel with an auto light sensor that maintains consistent readability from a sunlit lobby to a dim server room — without manual intervention on your end.

CEFCCRoHSISO 900124/7 Rated
2500
cd/m² peak brightness

Auto linear light sensor adjusts output in real time.
Maintains legibility in direct sunlight and under
high-ambient-light conditions without manual tuning.


Contrast Ratio1300:1
Viewing Angle (H/V)178° / 178°
Response Time6 ms
Color Depth16.7M
Panel Lifespan50,000 hrs


WHERE THIS MONITOR
EARNS ITS PLACE

🏪
RETAIL KIOSKS & POS

Drop it into a freestanding kiosk chassis or checkout counter housing. The slim bezel and flexible mount options — wall, floor, ceiling — let the integrator's enclosure carry the brand identity without the monitor getting in the way.

🚉
TRANSIT & WAYFINDING

Airports, rail stations, and transit hubs expose displays to high ambient light and continuous operation. At 2,500 nits with a 50,000-hour lifespan, the WD550D-M2 handles shift-less 24/7 duty cycles without scheduling maintenance windows.

🏥
MEDICAL & CLINICAL

Non-touch configurations work inside equipment where certified touch overlays aren't needed. Wide operating temperature and full RoHS compliance satisfy procurement requirements in regulated environments across the EU and US.

🏭
INDUSTRIAL CONTROL

Sheet-metal housing tolerates vibration. Operating range from −10 °C to 50 °C covers unheated factory floors and outdoor machine enclosures. Feed signals over HDMI 2.0 or LVDS; RS-232 available for legacy control systems.

📢
SIGNAGE & DOOH

The built-in Android 11 CMS handles scheduling, looped playlists, live data feeds, and remote management over LAN/WiFi/4G — so your client's AV team can update content from a browser without touching the hardware.

🎰
GAMING & AMUSEMENT

High peak brightness eliminates screen wash-out in bright casino floors or arcade lighting. Fast 6 ms response keeps motion clean in interactive or video-heavy applications. Secure hardware dongle prevents unauthorized firmware changes.


EVERY NUMBER
THAT MATTERS

DISPLAY
Panel Type55″ TFT LED
决心3840 × 2160 (4K UHD)
亮度2500 cd/m² (auto sensor)
对比度1300:1
视角89° / 89° / 89° / 89°
响应时间6 ms
宽高比16:9
Color Gamut16.7M colors
Active Area1209.6 × 680.4 mm
COMPUTE & OS
CPURK3568 Quad-Core 1.8 GHz
GPUQuad-Core Mali-T764
RAM2 GB DDR3
Storage16 GB (expandable)
OSAndroid 9 / Android 11
POWER
输入电压100 – 240 V AC
Max Consumption≤ 260 W
KEY PERFORMANCE FIGURES
4K
UHD RESOLUTION
6ms
RESPONSE TIME
178°
VIEWING ANGLE
50K
HOURS LIFESPAN
PHYSICAL
Dimensions1232.8 × 703.8 × 72.3 mm
净重16 kg
Housing Material钣金
Mount OptionsWall / Floor / Ceiling
MEDIA FORMAT SUPPORT
MP4MKVAVIMOVJPEGPNGPDFPPTLive StreamGIFAAC 5.1WAV

FITS INTO
YOUR SIGNAL CHAIN

Designed for integrators who need to slot this into existing infrastructure — not rebuild it. All major interfaces are on board; 3G/4G expands by module.

HDMI 2.0
4K @ 60 Hz · Customizable
低压差分信号
1 × internal
USB 2.0
2 external · 4 internal
RJ45 LAN
Wired network control
Wi-Fi
Built-in · dual-band
Bluetooth
Built-in
3G / 4G
Expandable via module
SD Card Slot
1 × for storage / update
Remote Management
LAN / WAN / WiFi / 3G
CMS
B/S architecture · multi-user
Dual Speakers
Built-in mini stereo
Hardware Dongle
Anti-tampering security

CONDITIONS IT
WORKS THROUGH

OPERATING TEMP
−10°
to 50°C
STORAGE TEMP
−20°
to 60°C
OP. HUMIDITY
5% – 90%
PANEL LIFESPAN
50,000 hrs
DUTY CYCLE
24 / 7

FROM FIRST SAMPLE
TO BULK DELIVERY

CUSTOMIZATION OPTIONS
  • Bezel color and finish (custom color MOQ 20 pcs)

  • Brightness tiers: 350 – 3,000 nits depending on application

  • Touch overlay integration (PCT or IR, configurable)

  • Operating system: Android 9 or Android 11

  • Connectivity: HDMI spec, RS-232, RS-485, or 4G module

  • Private label / white label branding

  • Custom OSD menu languages and startup screens

CUSTOM COLOR LEAD TIME15 days
PACKAGING & LOGISTICS
  • 21.5 – 55″ units: individual heavy-duty corrugated carton

  • 65″ units: individual honeycomb carton

  • Package dimensions: 134 × 24 × 81 cm per unit

  • Gross weight: 21 kg per unit

  • FOB Shenzhen; DDP quotes available on request

  • All components and packaging meet RoHS & CE standards

BULK ORDER LEAD TIME10–15 days
