技术规格
32至75英寸；MT1系列高亮度数字菜单板；监视器规格
| 产品名称 | 尺寸（英寸） | 型号。 | 产品图片 | 备注A部分 | 备注B部分 |
|---|---|---|---|---|---|
| MT1系列 高亮度数字菜单板；工业监视器 | 32 | WD320D-MT1 |  | 1.橱柜饰面：哑光黑色 2.定期库存10套芯材 3.客户主板确认后5~10个工作日交货期 4.批量订单的交付周期为10~15个工作日 5.包装：32英寸；-55"；单重力纸箱；65"；/75"；单个蜂窝纸箱 6.可定制框架颜色，最小起订量=20件，15个工作日生产交付时间 | 1. OD20 backlight solution, standard brightness:400 nits, max up to 2000 nits 2. Supports wall mount & ceiling mount with standard VESA mounting holes 3. Optional tempered glass (not stocked, made-to-order only) |
| 43 | WD430D-MT1 | ||||
| 49 | WD490D-MT1 | ||||
| 55 | WD550D-MT1 | ||||
| 65 | WD650D-MT1 | ||||
| 75 | WD750D-MT1 |
规格
| 模型 | MT1 | ||||||
|---|---|---|---|---|---|---|---|
| 类别 | 项目 | 32" | 43" | 49" | 55" | 65" | 75" |
| Panel | Display Size(inch) | 32" | 43" | 49" | 55" | 65" | 75" |
| 决心 | 1920×1080 | 1920×1080 | 1920×1080 | 3840×2160 | 3840×2160 | 3840×2160 | |
| Active Display Area(mm) | 702.8×397.3 | 942×530.4 | 1075×605 | 1210×680.8 | 1429×804 | 1651.2×930.2 | |
| 宽高比 | 16:09 | 16:09 | 16:09 | 16:09 | 16:09 | 16:09 | |
| Brightness(cd/m²) | 1000nits | 1000nits | 1000nits | 1000nits | 1000nits | 1000nits | |
| Contrast Ratio(Typ.) | 1200:1 | 1200:1 | 1200:1 | 1200:1 | 1200:1 | 1200:1 | |
| Viewing Angle(H/V) | 178/178 | 178/178 | 178/178 | 178/178 | 178/178 | 178/178 | |
| 颜色 | 16.7M | 16.7M | 16.7M | 16.7M | 16.7M | 16.7M | |
| Response Time(G-to-G) | 6ms | 6ms | 6ms | 6ms | 6ms | 6ms | |
| Operation Hour | Working Cycle | 24/7 | 24/7 | 24/7 | 24/7 | 24/7 | 24/7 |
| Sound | Loud Speaker | 5W,8Ω(2 sets) | 5W,8Ω(2 sets) | 5W,8Ω(2 sets) | 5W,8Ω(2 sets) | 5W,8Ω(2 sets) | 5W,8Ω(2 sets) |
| Power | 类型 | Internal | Internal | Internal | Internal | Internal | Internal |
| Power Supply | AC 100 - 240 V ~(+/- 10 %),50/60 Hz | ||||||
| Max Power Consumption(W) | 65 | 115 | 160 | 210 | 280 | 390 | |
| Sleep / Off Mode Power | <0.5W / <0.5W | <0.5W / <0.5W | <0.5W / <0.5W | <0.5W / <0.5W | <0.5W / <0.5W | <0.5W / <0.5W | |
| Mechanical Spec | Protection Glass | NO | |||||
| Dimension(L×W×H,mm) | 721.8*416.3*58.3 | 964.8*552.8*58.3 | 1097.8*627.8*58.3 | 1232.8*703.8*58.3 | 1451.8*826.8*58.3 | 1674*953*58.5 | |
| VESA HOLE(mm) | 200*200 | 400*400 | 400*400 | 400*400 | 600*400 | 600*400 | |
| Package Size(mm) | 850*160*550 | 1060*160*705 | 1190*160*790 | 1330*165*855 | 1580*220*945 | 1790*220*1075 | |
| Net Weight(kg) | 6.5 | 11.85 | 14.2 | 17.35 | 27.10 | 35.75 | |
| Gross Weight(kg) | 11 | 15.75 | 20.6 | 24.20 | 36.15 | 46.65 | |
| Environmental | Screen Surface TNI Temp. | 55℃ | 55℃ | 55℃ | 55℃ | 55℃ | 55℃ |
| 工作温度 | 0℃~50℃ | 0℃~50℃ | 0℃~50℃ | 0℃~50℃ | 0℃~50℃ | 0℃~50℃ | |
| Operating Humidity | 10%~80% | 10%~80% | 10%~80% | 10%~80% | 10%~80% | 10%~80% | |
| Storage Humidity | 5%~95% | 5%~95% | 5%~95% | 5%~95% | 5%~95% | 5%~95% | |
| Android Media Player | Processor | RK3568 (2.0 GHz, octa core) | |||||
| RAM | 4G | ||||||
| Flash | 32G | ||||||
| USB | USB2.0 HOST(X2) | ||||||
| LAN | 10M/100M Ethernet(Network version screen only) | ||||||
| External Memory | 8G/16G/32G/64G | ||||||
| Multimedia Format | Video(MPG,AVI,MP4,RM,RMVB,TS),Audio(MP3,WMA),Image(JPG,GIF,BMP,PNG) | ||||||
| Media Resolution | 1920*1080 / 3840*2160 | ||||||
| Wi-Fi & OS | 802.11b/g/n(Network version only) | Android 11 | ||||||
| 认证 | Safety Certificate | CE, ROHS | |||||
| 配件 | Included Items | Scheduling software, Remote control, Key, Power cable, SD card | |||||
| 保修 | 1 Year (2-3 years optional) | ||||||
| Packaging Type | Carton box / honeycomb box + wooden case | ||||||
CUSTOM DISPLAY SOLUTIONS
We can customizeyour features based onyour reguirements.
Standard Package
1. st layer: plastic protective film,
2.nd layer: Honeycomb carton;
3. rd layer: wooden box

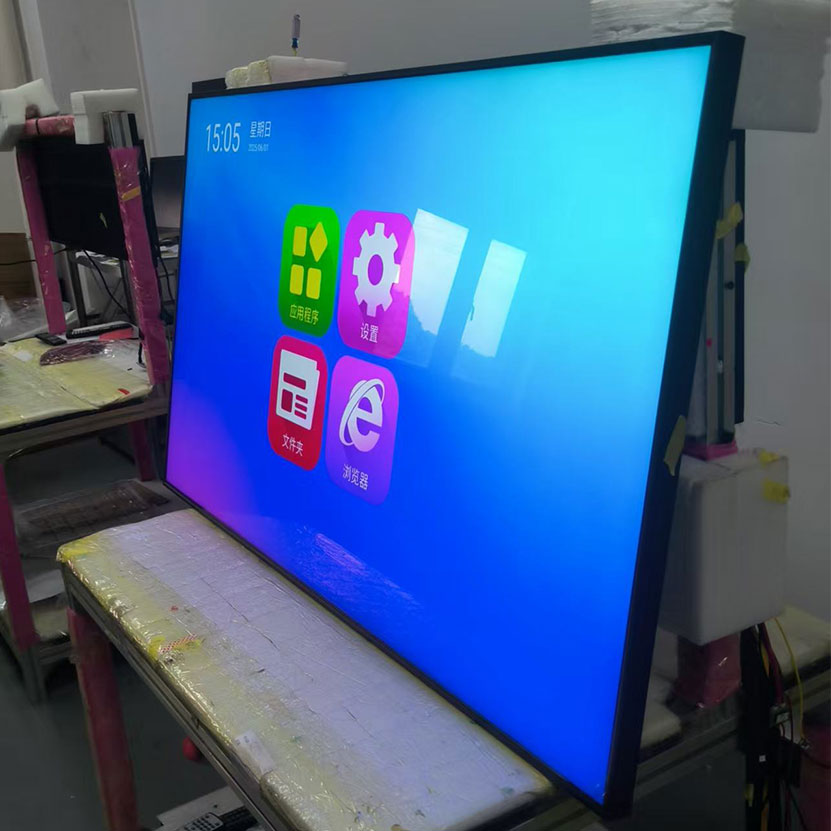

32~75 Inch High Brightness Electronic Menu LCD Monitor
The Benefits of High-brightness Digital Menu Boards
Increased Sales
Engaging visuals, animations, and promotions can attract attention and encourage upselling,resulting in higher sales.
Enhanced Customer Experience
Interactive features, appealing visuals, and accurate information create a positive dining experience.
Cost Savings
Eliminate printing costs associated with traditional menus, and reduce waste from outdated materials.
Efficiency
Update menus and promotions instantly, reducing the time and effort required for manual changes.

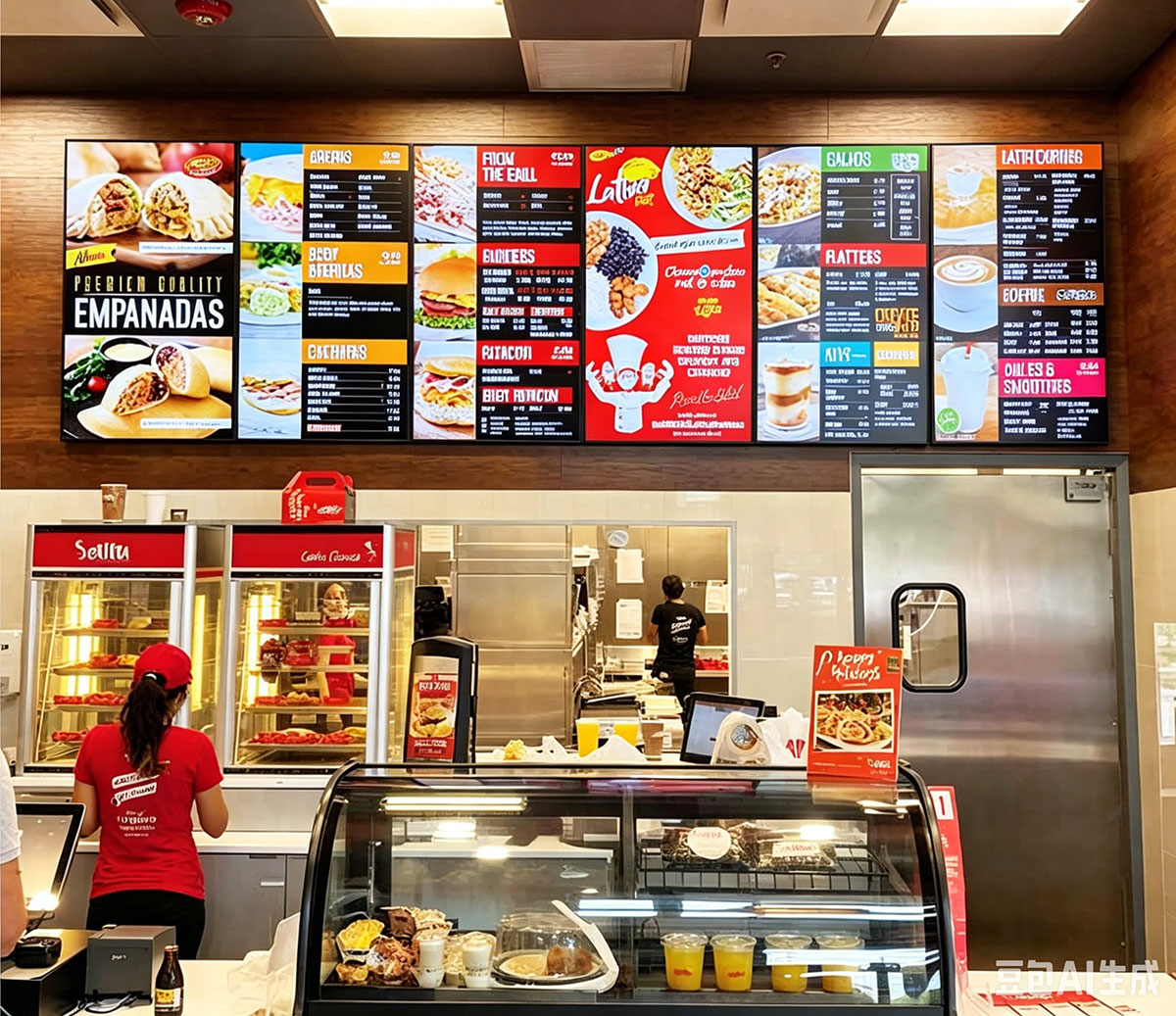

The 1000-nit digital menu boards redefines dining displays with its intense brightness.
It delivers ultra-HD clarity, remaining vivid even under harsh light to let customers easily view dish details from afar.
Its digital functionality enables real-time updates—no need to reprint menus for changes, boosting efficiency. Ideal for chains or specialty spots, it showcases dishes with stunning HD detail, enhancing ordering while adding modern tech flair.
MT1 Series Ultra Slim Narrow Bezel Advantage
The MT1 series' sleek design is key to its competitive edge. Its symmetric 4-sided layout with precise proportions keeps focus on content, outshining rivals.

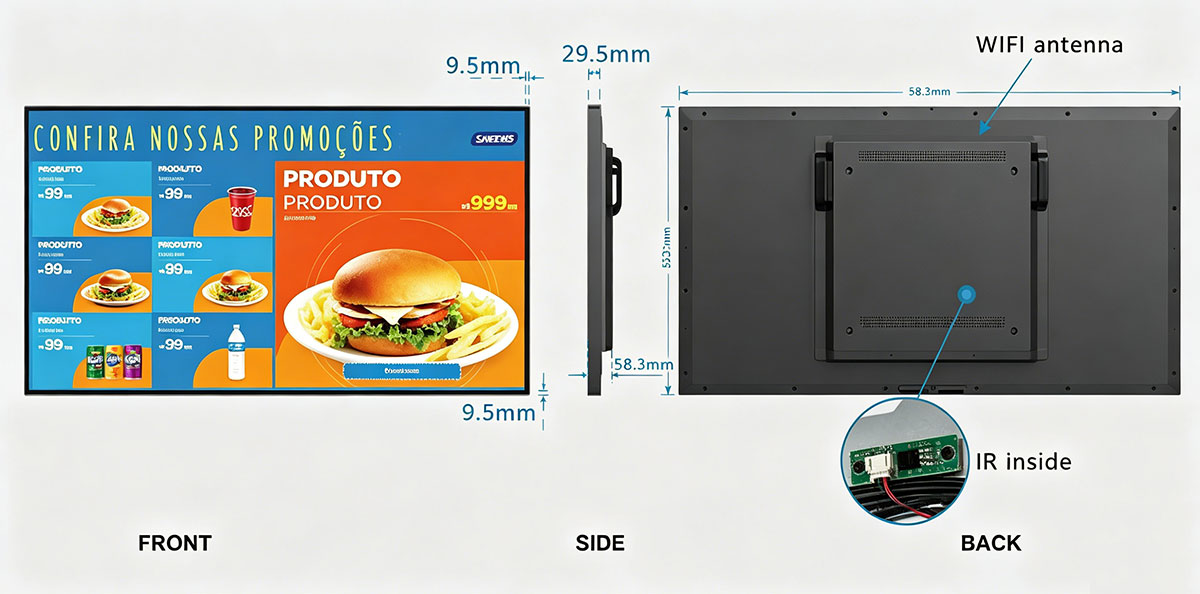

A 9.5mm all-metal narrow bezel and 95% screen-to-body ratio make the bezel nearly "invisible" (vs. 15mm+ on similar products), reducing visual clutter for standout window displays.

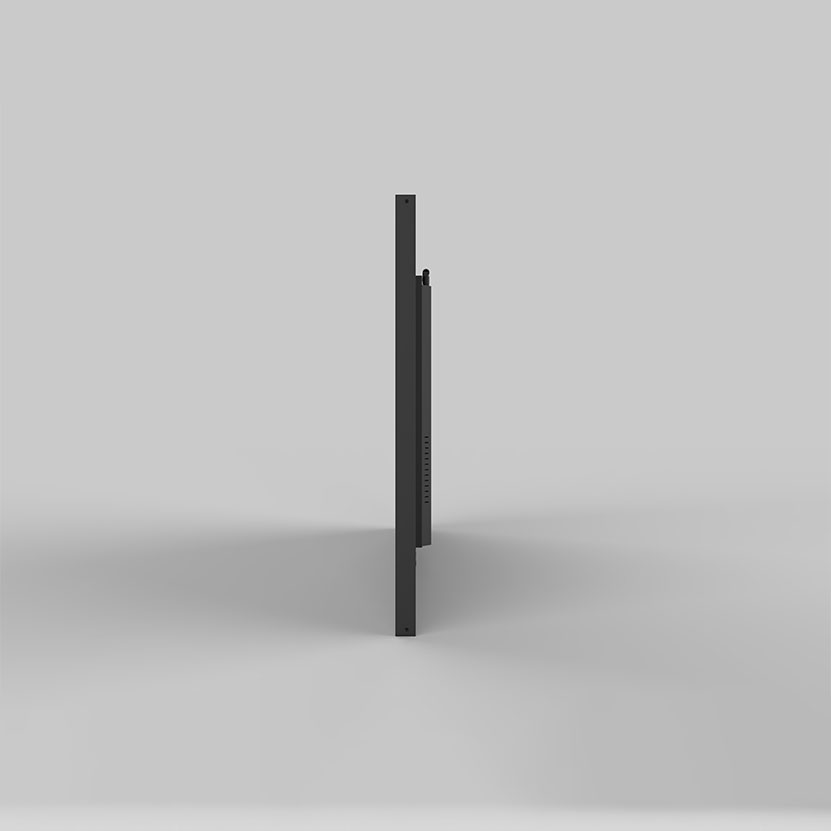

At 58.3mm thin, it defies the "bulky" high-brightness stereotype. Slimmer than 80mm+ competitors, it saves space for aesthetic settings, cuts packaging/logistics costs, and boosts value.

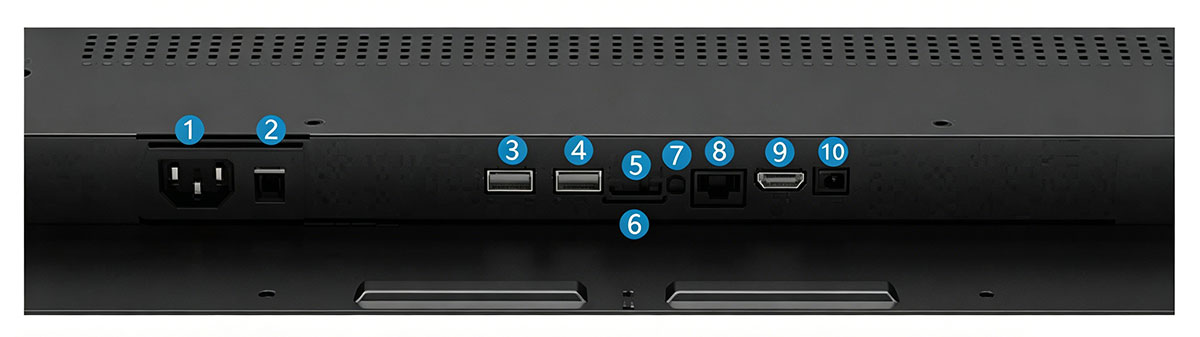

CONNECTIVITIES
The interface is rich and it is compatible with most of the market's motherboard models, facilitating the expansion of functions for customers.

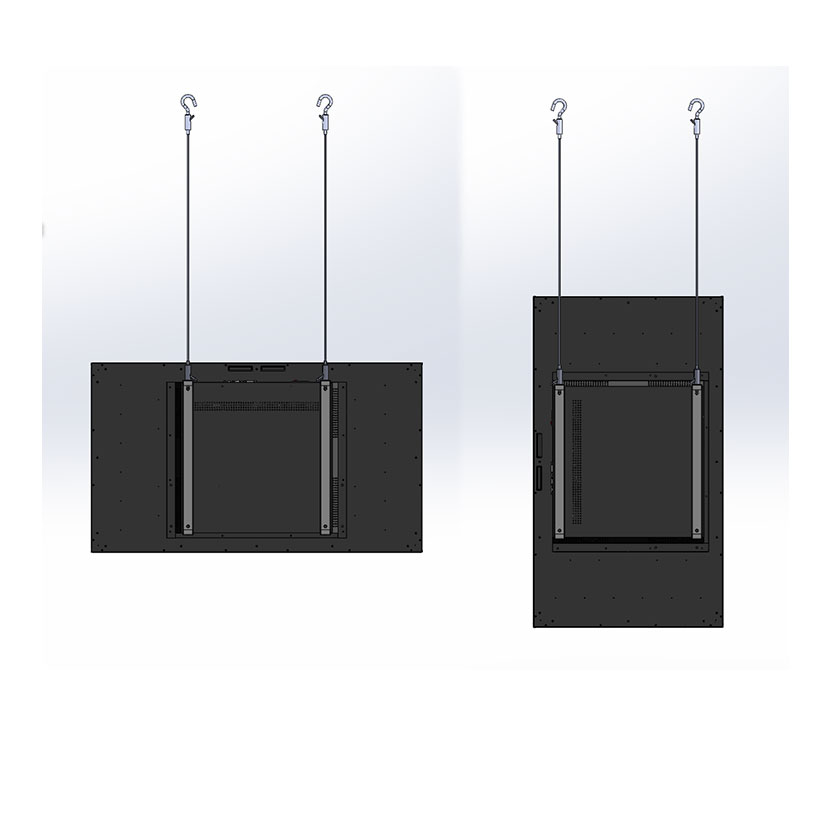

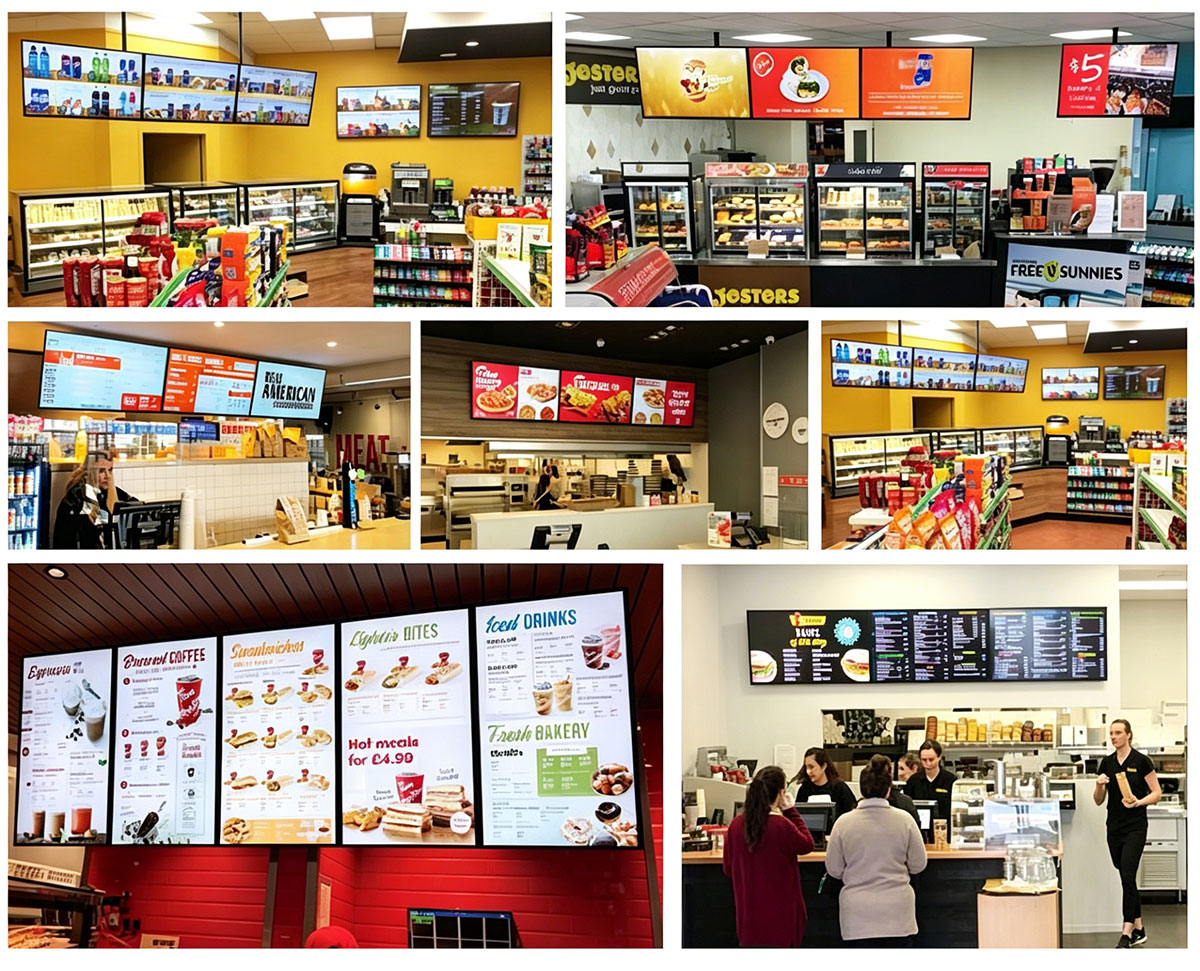

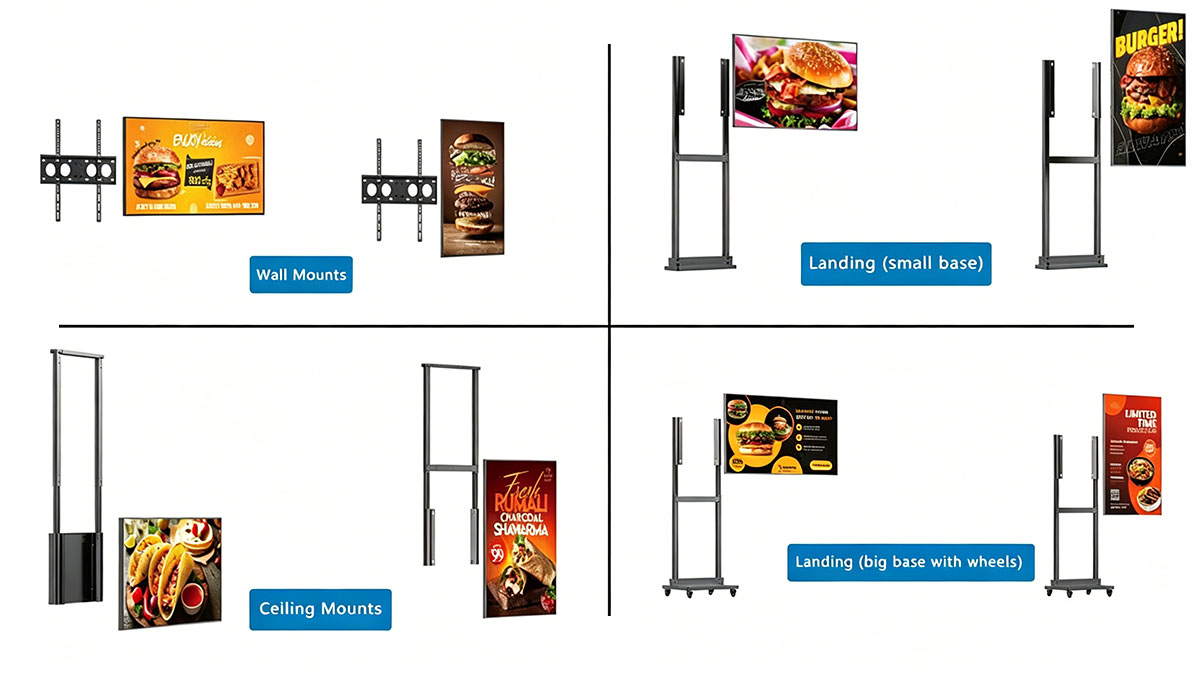

Flexible Multi-scene Installation
MT1 series adopts standardized installation hole design, convenient installation and strong adaptability, which can flexibly support suspension, landing, wall hanging and other installation methods, perfectly matching the needs of different window scenes.
Its ever-changing shape can easily unlock the window to display new forms, effectively attract attention in all kinds of stores, and help brand information accurately reach the audience.
Flexible Splicing:Seamlessly Connect Horizontally or Vertically
It is highly suitable for customizing the layout according to any space requirements (whether it is a narrow entrance passage, a spacious retail window, or a vibrant event venue). Its seamless connection technology can ensure a consistent and coherent visual effect, and it can also easily adapt to your personalized design needs.
