技术规格

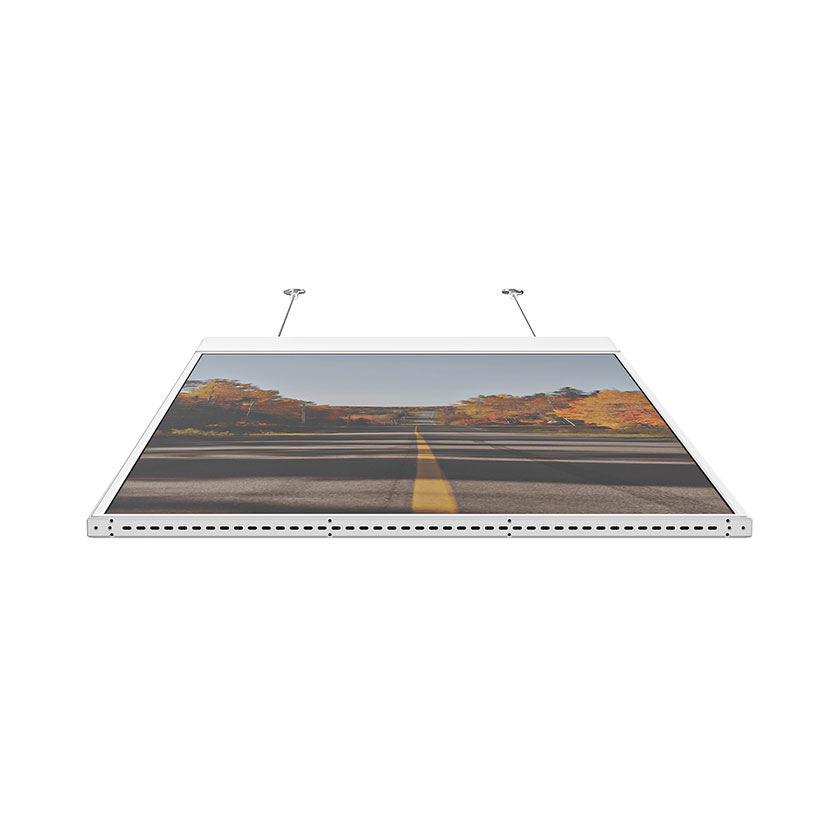

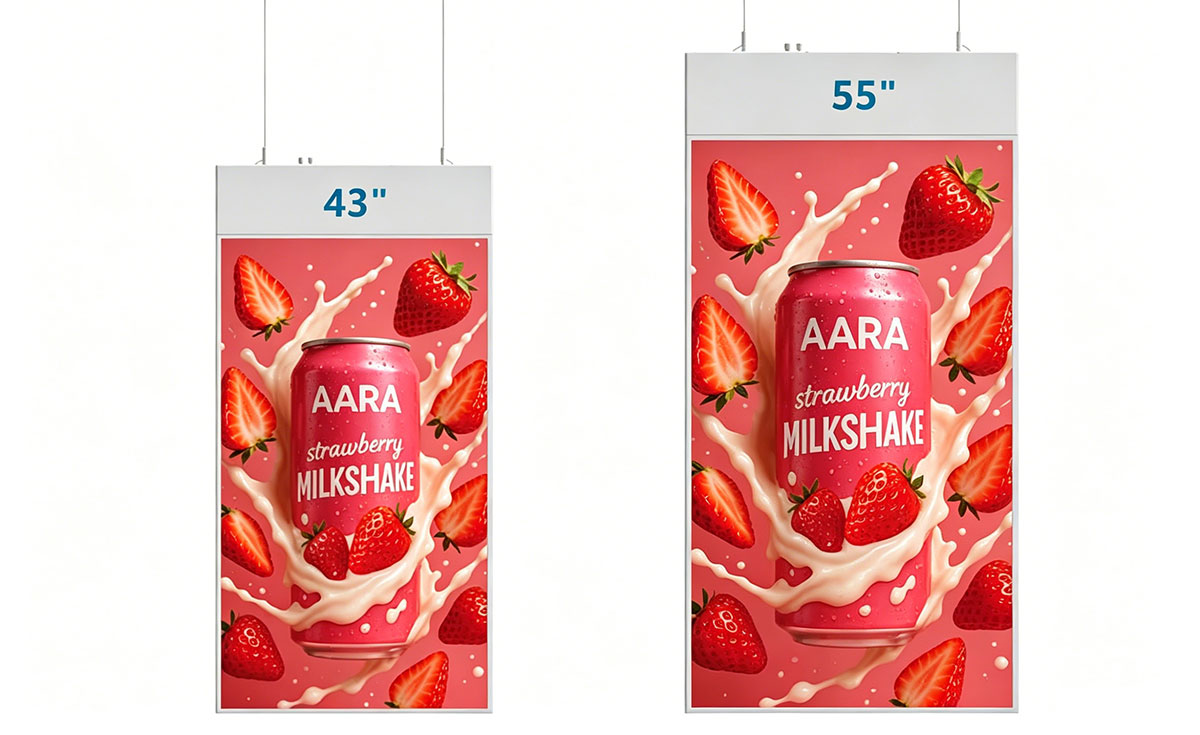

43-55英寸室内双面壁挂式液晶屏
| 系列 | 尺寸（英寸） | 模型 | 图像 | 规格和；前置时间 | 主要特点 |
|---|---|---|---|---|---|
| 超薄双面ET-2系列 | 43 | WD430ET-2 |  |
|
|
| 49 | WD490ET-2 | ||||
| 55 | WD550ET-2 |
规格
| 规格 | ET-2 (43") | ET-2 (55") |
|---|---|---|
| Panel | ||
| Display Size (inch) | 43" | 55" |
| 决心 | 1920 x 1080 | 3840 x 2160 |
| Active Display Area (mm) | 942 x 530.4 | 1210 x 680.8 |
| 宽高比 | 16:09 | 16:09 |
| Brightness (cd/m²) | 700+700 nits | 700+700 nits |
| Contrast Ratio (Typ.) | 1200:1 | 1200:1 |
| Viewing Angle (H/V) | 178° / 178° | 178° / 178° |
| Color | 16.7M | 16.7M |
| Response Time (G-to-G) | 6 ms | 6 ms |
| Operation Hour | 24/7 | 24/7 |
| Sound | ||
| Loud Speaker | 5W, 8Ω (2 sets) | 5W, 8Ω (2 sets) |
| Power | ||
| 类型 | Internal | Internal |
| Power Supply | AC 100 - 240 V~ (+/- 10 %), 50/60 Hz | AC 100 - 240 V~ (+/- 10 %), 50/60 Hz |
| Max Power Consumption (W/h) | 96 | 218 |
| Sleep Mode Power Consumption | < 0.5W | < 0.5W |
| Off Mode Power Consumption | < 0.5W | < 0.5W |
| Mechanical Spec | ||
| Protection Glass | NO | NO |

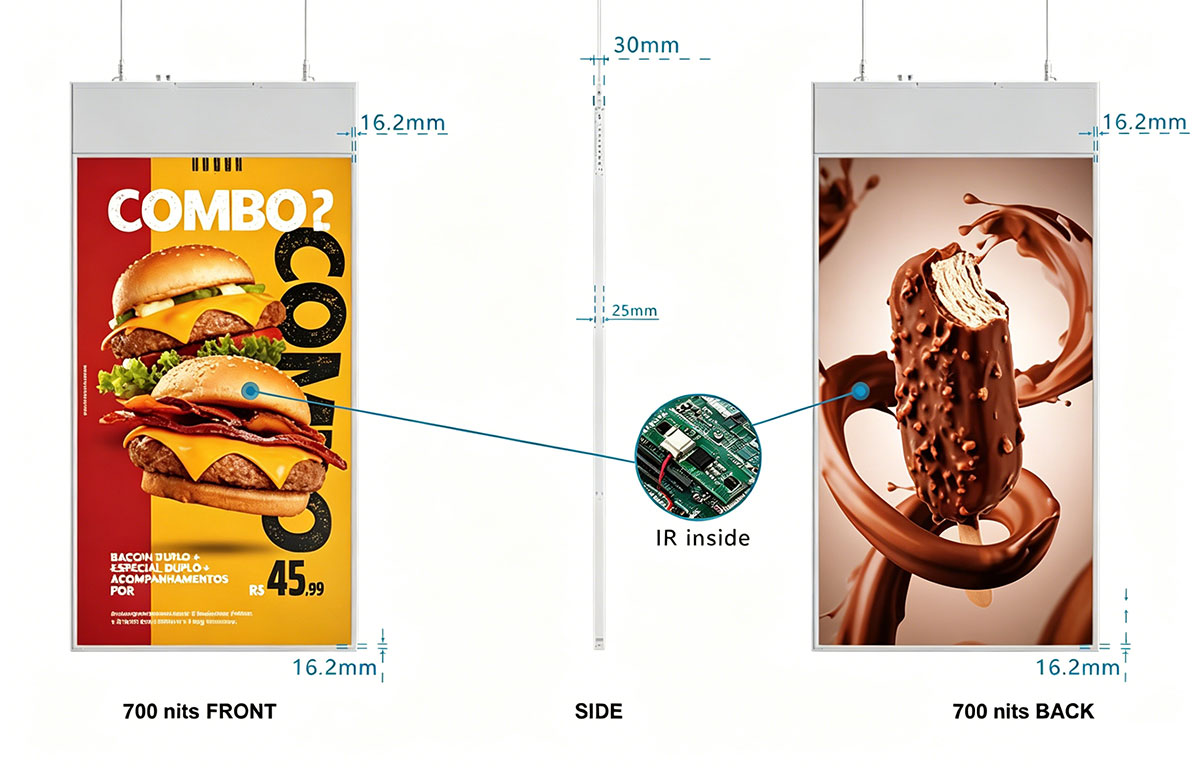

| Dimension (L × W × H) (mm) | 1151.6 × 30 × 565.6 | 1420 × 30 × 716.8 |
| Package Size (mm) | 130.5 × 26 × 80.5 | 156 × 26.5 × 96 |
| Net Weight (kg) | 17.3 | 28.2 |
| Gross Weight (kg) | 26.5 | 39.2 |
| Environmental | ||
| Screen Surface TNI Temperature | 55 °C | 55 °C |
| Operating Environment Temperature | 0°C ~ 50 °C | 0°C ~ 50 °C |
| Operating Humidity | 10% ~ 80 % | 10% ~ 80 % |
| Storage Humidity | 5% ~ 95% | 5% ~ 95% |
| Android Media Player | ||
| Processor | RK3568 (2.0 GHz, Octa Core) | |
| RAM | 4G | |
| Flash Memory | 32G | |
| USB | USB2.0 HOST (×2) | |
| LAN | 10M/100M Ethernet (Network version only) | |
| External Memory | /16G/32G/64G | |
| Multimedia Formats | Video(MPG, AVI, MP4, RM, RMVB, TS), Audio(MP3, WMA), Image(JPG, GIF, BMP, PNG) | |
| Media Resolution | 1920*1080 / 3840*2160 | |
| Wi-Fi | 802.11b/g/n (Network version only) | |
| Operating System | Android 11 | |
| 认证 | CE, ROHS | |
| Accessories Included | Scheduling software, Remote control, Key, Power cable, SD card | |
| 保修 | 1 Year (2-3 years optional) | |
| Packaging Type | Carton box / Honeycomb box + Wooden case | |
CUSTOM DISPLAY SOLUTIONS
We can customizeyour features based onyour reguirements.
Standard Package
1. st layer: plastic protective film,
2.nd layer: Honeycomb carton;
3. rd layer: wooden box

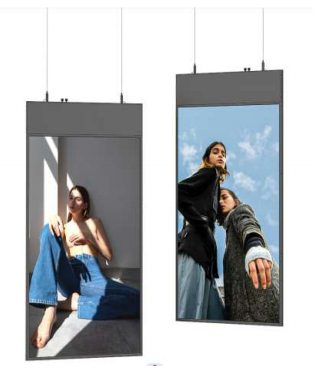

Indoor Double Sided Wall Mounted LCD Screen
Dual-Screen Ultra-Thin Window Display

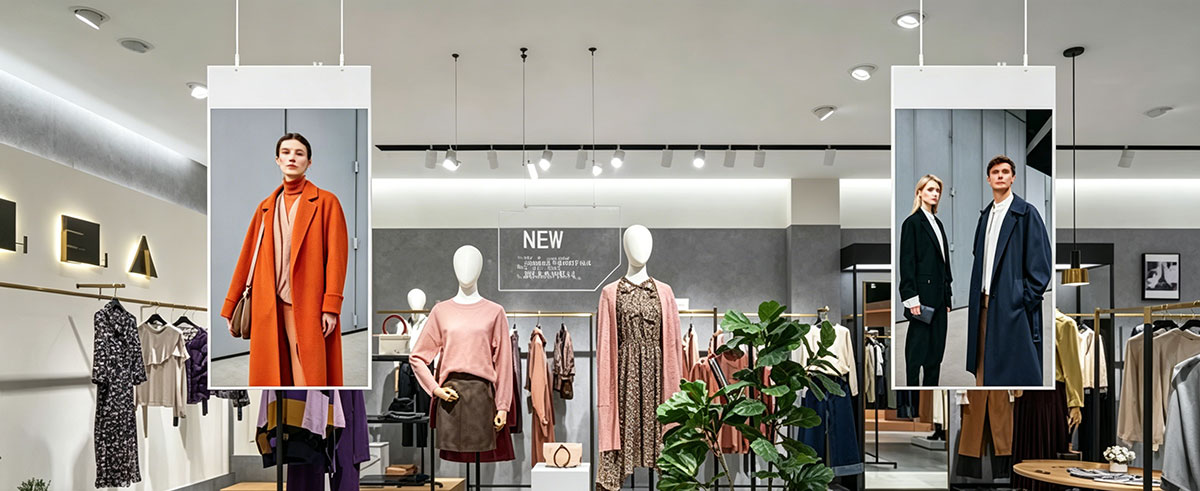

Dual-screen display with an ultra-thin 25mm profile delivers simultaneous indoor and outdoor advertising visibility, helping brands reach a wider audience from every direction.
The elegant fusion of advanced display technology and modern aesthetics creates a premium visual experience, highlighting a sophisticated and high-end commercial image while leading the new trend of digital window advertising.
The suspended installation design features highly adjustable height options, maximizing space efficiency while maintaining a clean and minimalist appearance. Dual-sided content presentation transforms storefront advertising into an eye-catching visual landscape.
Engineered for Premium Window Advertising
Designed for modern retail environments, this dual-sided window display combines ultra-slim industrial design, reliable thermal management, and high-impact visual performance.
Dual Independent Screens
Inward and outward displays work independently, reaching both passers-by outside and customers inside the store for maximum advertising coverage.
超薄工业设计
Only 25mm thick with a premium aluminum frame and bright white powder coating, delivering a durable, peel-resistant, and elegant appearance.
Tech Meets Aesthetics
A modern minimalist design language creates a high-end visual identity, making it an ideal solution for premium storefront advertising.
Flexible Ceiling Installation
Ceiling-mounted with adjustable hanging height, saving valuable floor space while maintaining a clean and sophisticated retail environment.
Advanced Heat Dissipation
Equipped with an extra-large light bar heat sink to maintain LCD panel flatness, effectively preventing mura, banding, black spots, and display distortion.
Fully Molded Aluminum Structure
Built with an 80% aluminum structure for superior thermal stability and heat dissipation, while reducing overall weight by 30% for easier installation and maintenance.

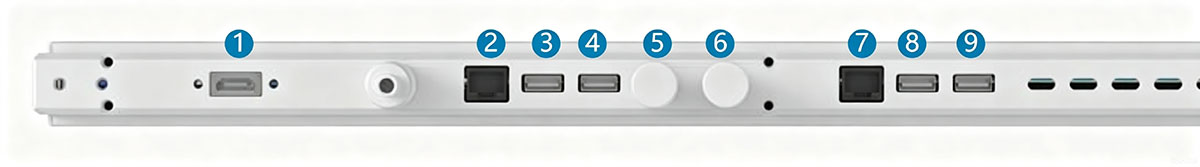

CONNECTIVITIES
The interface is rich and it is compatible with most of the market's motherboard models, facilitating the expansion of functions for customers.

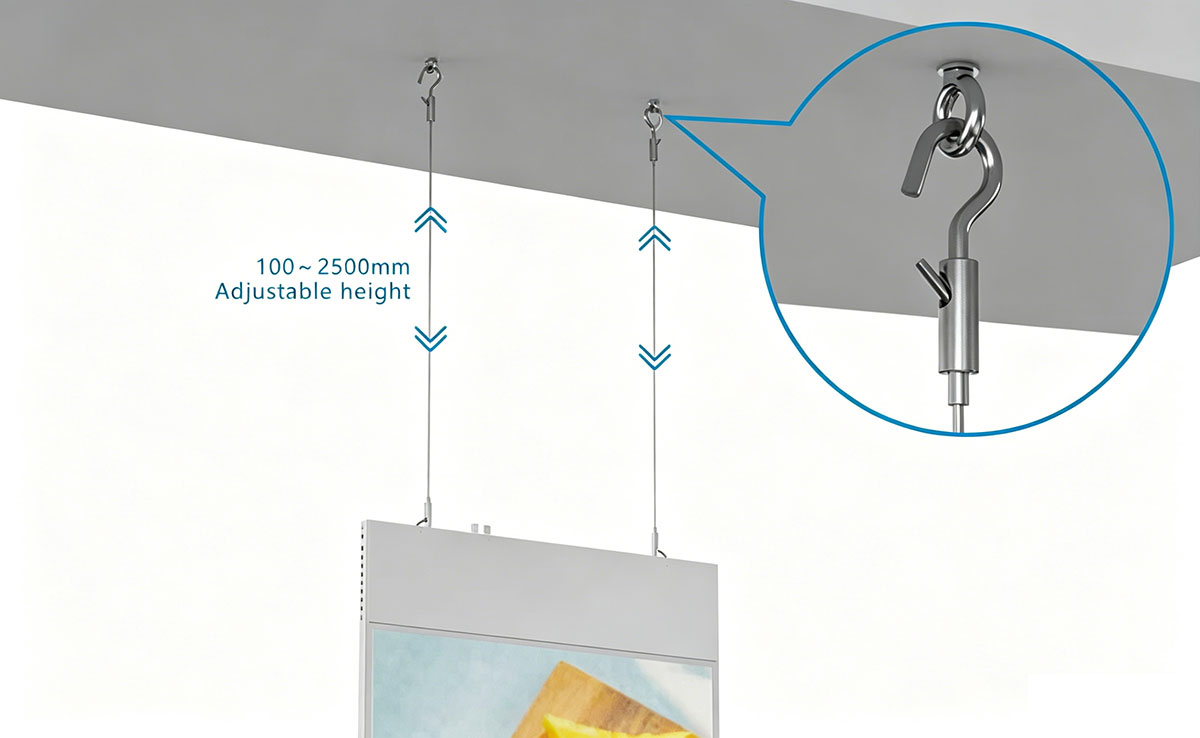

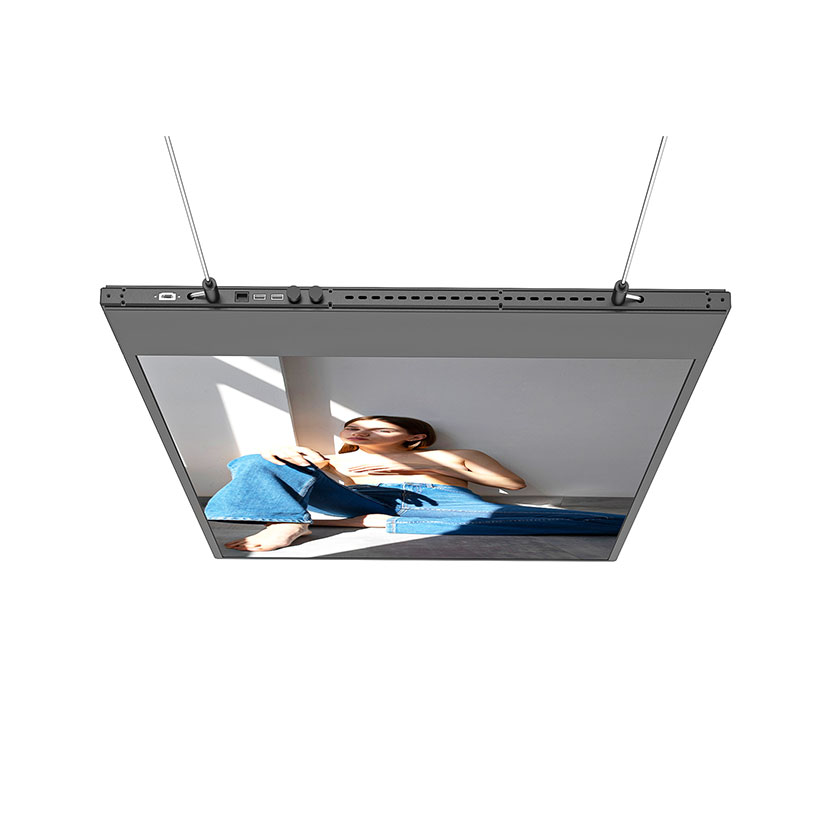

Integrated Ceiling Mount: No Extra Cost, Fast Deployment, Hidden Cables
The double-sided LCD ceiling display comes with an integrated steel wire suspension system—no need to purchase additional brackets. Unbox it and start installation right away, significantly lowering the installation barrier and costs for quick setup.
Equipped with a dedicated hidden cable sleeve, it can fully conceal power and data cables. This not only eliminates potential safety hazards from exposed wires but also allows the device to blend seamlessly with the space, creating a more refined and professional visual effect.

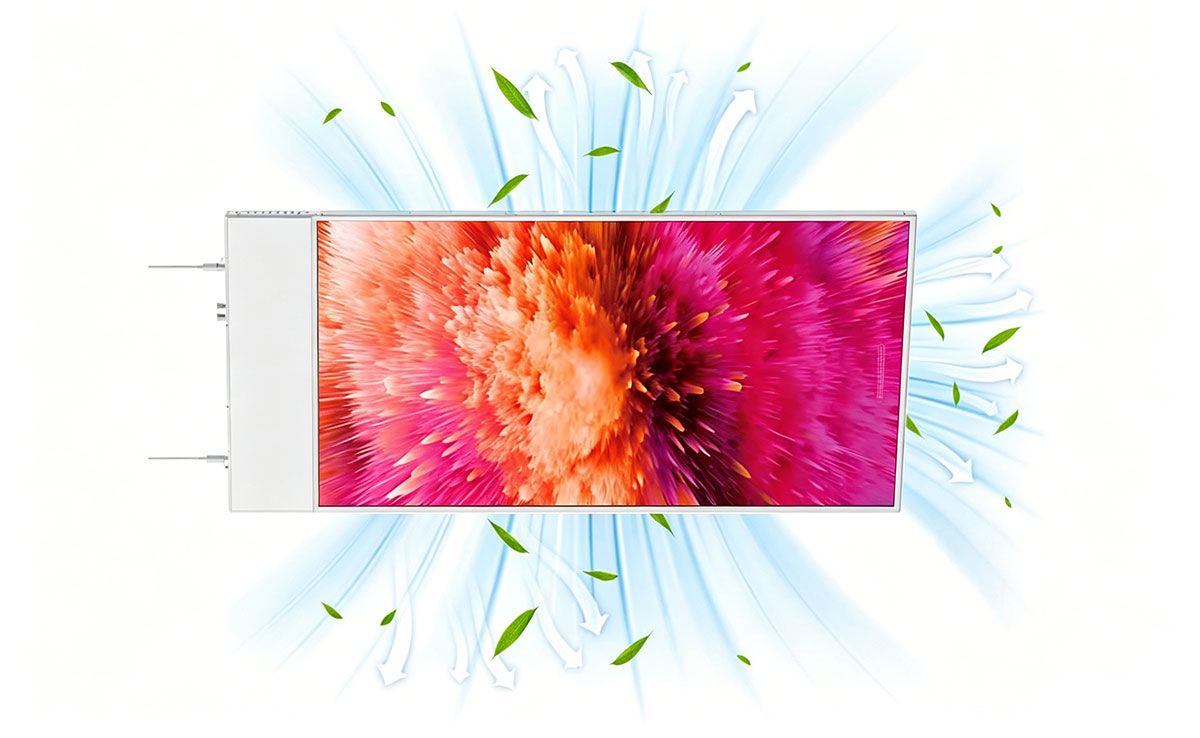

Advanced Cooling Boards for Screen Protection
Cooling boards, engineered with scientific structural design, effectively guide and facilitate air convection. This process rapidly dissipates heat accumulated around the screen during extended operation, thoroughly protecting it from damage caused by excessive temperatures.
By controlling heat, the system prevents potential issues such as image distortion, color fading or deviation, and accelerated aging of internal components, thereby extending the overall service life of the screen.
Synchronous & Asynchronous Display Modes
This screen supports both synchronous and asynchronous display modes. It can show the same content on multiple screens or different content on each screen, offering flexibility for various display needs.

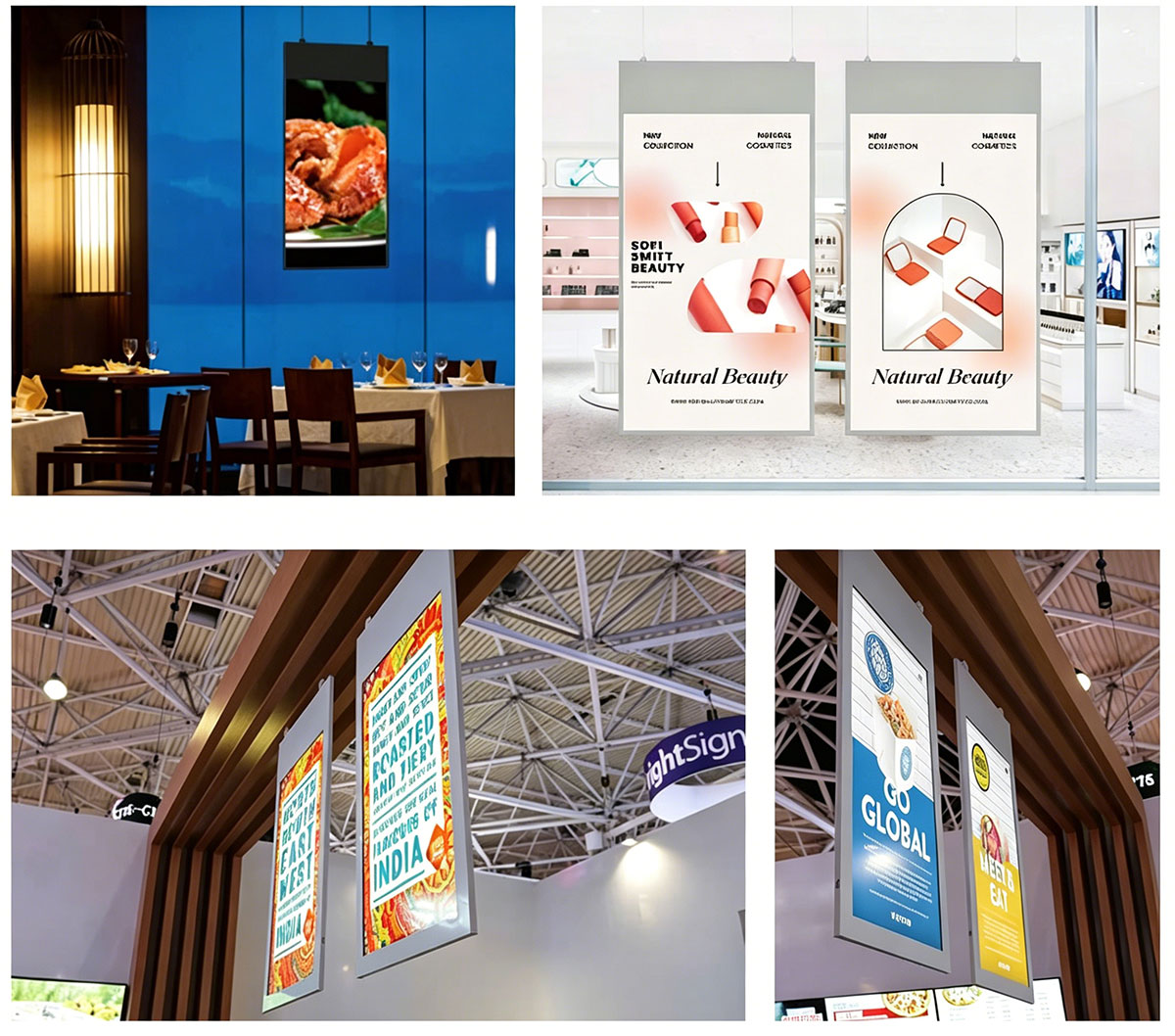

Ideal for dynamic presentations, retail displays, and interactive setups, these display modes allow for highly customized and engaging visual experiences.
