技术规格
数字窗口显示器的所有型号和尺寸
| 物品型号 | 尺寸（英寸） | 零件编号。 | 产品图片 | 颜色&；交付周期信息 | 备注 |
|---|---|---|---|---|---|
| 3 窗口高亮度监视器 景观与；肖像可用 S3系列 边框宽度：9.5mm | 32 | WD320D-S3 |
| 1.颜色：哑光黑 2.标准库存数量：50套 3.样品或10件以下：带封底的交货期为3天；客户主板确认后7天 4.批量订单：10~15个工作日交货时间 5.包装：每单位单个蜂窝纸箱 | 1.OD20设计，亮度范围：1000~5000nits，超过2500nits的亮度需要与我们的团队预先确认。 2.标准亮度：2500nits 3.边框宽度为86英寸；：13毫米 4. With VESA mounting holes 5. Customer recommended to provide mainboard 6. No tempered glass included |
| 43 | WD430D-S3 | ||||
| 49 | WD490D-S3 | ||||
| 55 | WD550D-S3 | ||||
| 65 | WD650D-S3 | ||||
| 75 | WD750D-S3 | ||||
| 86 | WD860D-S3 |
数字窗口显示器 技术规格
| Panel | 32" | 43" | 49" | 55" | 65" | 75" | 86" | |
|---|---|---|---|---|---|---|---|---|
| Display Size (inch) | 32" | 43" | 49" | 55" | 65" | 75" | 86" | |
| 决心 | 1920x1080 | 1920x1080 | 1920x1080 | 1920x1080 | 3840x2160 | 3840x2160 | 3840x2160 | |
| Active Display Area (mm) | 702.8x397.3 | 942x530.4 | 1075x605 | 1210x680.8 | 1429x804 | 1651.2x930.2 | 1895x1066 | |
| 宽高比 | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 | |
| Brightness (cd/m²) | 3000nits | 3000nits | 3000nits | 3000nits | 3000nits | 3000nits | 3000nits | |
| Contrast Ratio (Typ.) | 1200:1 | 1200:1 | 1200:1 | 1200:1 | 1200:1 | 1200:1 | 1200:1 | |
| Viewing Angle (H/V) | 178/178 | 178/178 | 178/178 | 178/178 | 178/178 | 178/178 | 178/178 | |
| Color | 16.7M | 16.7M | 16.7M | 16.7M | 16.7M | 16.7M | 16.7M | |
| Response Time (G-to-G) | 6ms | 6ms | 6ms | 6ms | 6ms | 6ms | 6ms | |
| Operation Hour | 24/7 | 24/7 | 24/7 | 24/7 | 24/7 | 24/7 | 24/7 | |
| Sound | 32" | 43" | 49" | 55" | 65" | 75" | 86" | |
| Loud Speaker | 5W, 8Ω (2 sets) | 5W, 8Ω (2 sets) | 5W, 8Ω (2 sets) | 5W, 8Ω (2 sets) | 5W, 8Ω (2 sets) | 5W, 8Ω (2 sets) | 5W, 8Ω (2 sets) | |
| Power | 32" | 43" | 49" | 55" | 65" | 75" | 86" | |
| 类型 | Internal | Internal | Internal | Internal | Internal | Internal | Internal | |
| Power Supply | AC 100 - 240V~ (±10%), 50/60Hz | |||||||
| Power Consumption | Max[W/h] | 130 | 180 | 140 | 280 | 450 | 560 | 820 |
| Sleep Mode | <0.5W | <0.5W | <0.5W | <0.5W | <0.5W | <0.5W | <0.5W | |
| Off Mode | <0.5W | <0.5W | <0.5W | <0.5W | <0.5W | <0.5W | <0.5W | |
| Protection Glass | NO | NO | NO | NO | NO | NO | NO | |
| Dimension (L×W×H, mm) | 721.8*57.2*416.3 | 964.8*57.2*552.8 | 1097.8*57.2*627.8 | 1232.8*57.2*703.8 | 1451.8*57.2*826.8 | 1674*57.4*953 | 1926*63.2*1097 | |
| Mechanical | 32" | 43" | 49" | 55" | 65" | 75" | 86" | |
| VESA HOLE (mm) | 400*250 | 400*400 | 400*400 | 400*400 | 400*600 | 400*600 | 600*600 | |
| Package Size (mm) | 89*20*58 | 113*20*72 | 126*20*78.5 | 139.5*20*86 | 161.5*20*99 | 184.5*20.5*111 | 209*21*127.5 | |
| Net Weight (kg) | 8.5 | 14 | 17 | 21 | 30 | 38 | 54.3 | |
| Gross Weight (kg) | 12.6 | 21 | 25.8 | 30.3 | 43 | 56 | 68.5 | |
| Environmental | 32" | 43" | 49" | 55" | 65" | 75" | 86" | |
| Screen Surface Temp Resistance | 100°C | 100°C | 105°C | 110°C | 110°C | 110°C | 110°C | |
| 工作温度 | 0°C ~ 50°C | 0°C ~ 50°C | 0°C ~ 50°C | 0°C ~ 50°C | 0°C ~ 50°C | 0°C ~ 50°C | 0°C ~ 50°C | |
| Operating Humidity | 10% ~ 80% | 10% ~ 80% | 10% ~ 80% | 10% ~ 80% | 10% ~ 80% | 10% ~ 80% | 10% ~ 80% | |
| Storage Humidity | 5% ~ 95% | 5% ~ 95% | 5% ~ 95% | 5% ~ 95% | 5% ~ 95% | 5% ~ 95% | 5% ~ 95% | |
| Android Media Player System Parameter (Unified for All Sizes) | ||||||||
| Android Media Player | Processor | RK3568, 2.0GHz Octa-core | ||||||
| RAM | 4G | |||||||
| Flash | 32G | |||||||
| USB | USB2.0 HOST ×2 | |||||||
| LAN | 10M/100M Ethernet (Network Version Only) | |||||||
| External Memory Support | 8G/16G/32G/64G | |||||||
| Multimedia Format | Video:MPG,AVI,MP4,RM,RMVB,TS; Audio:MP3,WMA; Image:JPG,GIF,BMP,PNG | |||||||
| Max Media Resolution | 1920*1080 / 3840*2160 | |||||||
| Wi-Fi | 802.11b/g/n (Network Version Only) | |||||||
| Operating System | Android 11 | |||||||
| 认证 | ||||||||
| 认证 | Safety Certificate | CE, ROHS | ||||||
| 配件 | ||||||||
| 配件 | Included Items | Scheduling software, Remote control, Key, Power cable, SD card | ||||||
| 保修 | 1 Year; 2~3 Years Optional | |||||||
| Packing Type | Carton / Honeycomb box + Wooden case | |||||||
CUSTOM DISPLAY SOLUTIONS
We can customizeyour features based onyour reguirements.
Standard Package
1. st layer: plastic protective film,
2.nd layer: Honeycomb carton;
3. rd layer: wooden box
32~86 Inch High Brightness Digital Window LCD Display
High-Brightness Window Display: Boost Storefront Foot Traffic & Elevate Brand ImageEmpower window merchandising with premium high-brightness digital displays to draw passersby and refine your brand aesthetic. Featuring ultra-high nits luminosity, our displays eliminate the common sunlight washout issue plaguing conventional screens. Crisp visuals remain fully visible under direct midday sunshine, making promotional highlights and new-product visuals instantly catch pedestrian attention and turn retail shop windows into high-performing roadside traffic hubs. Crafted with an ultra-slim stylish chassis, the display seamlessly fits into any interior layout, ranging from minimalist to luxury boutique-style storefronts, infusing modern tech sophistication to uplift overall brand taste. Balancing outstanding practicality and cost efficiency, it delivers vivid eye-catching dynamic visuals alongside low power consumption. Businesses enhance in-window marketing performance while cutting long-term electricity expenses, turning every investment into tangible footfall growth and upgraded brand premium.

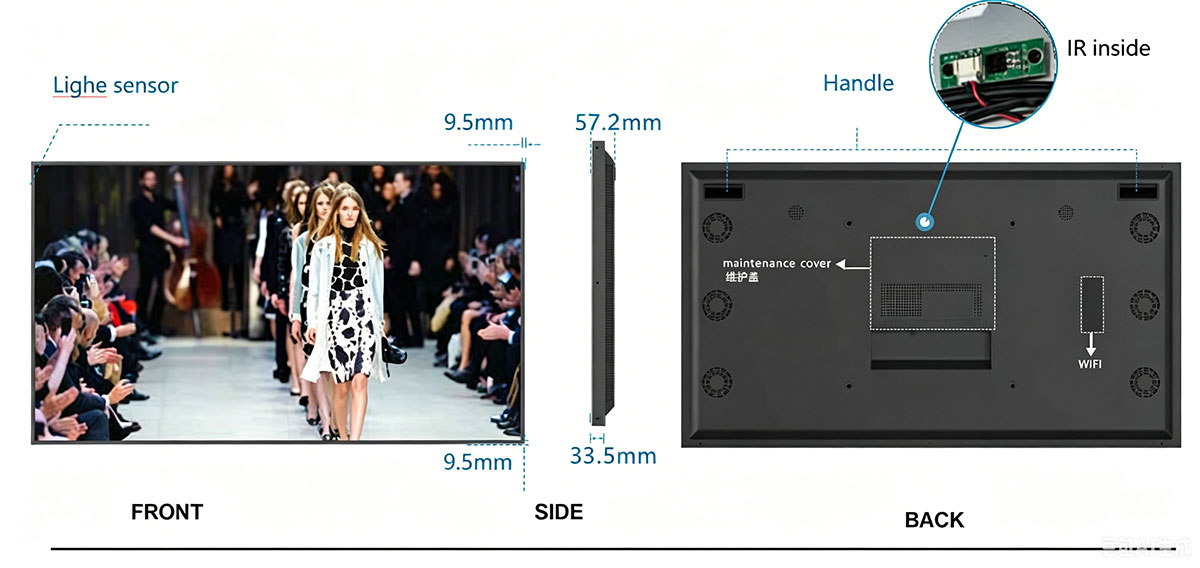

S3 series adopts independent ultra-narrow frame design, with full symmetrical layout on four sides to present balanced aesthetics. 9.5mm ultra-narrow frame with 96% high screen proportion brings immersive display effect, and all-metal frame improves style. Its body thickness is only 57.2mm, subverting the industry cognition of "highlighting equipment will be bulky". Compared with similar products, it is thinner and more fashionable, and can also reduce the packaging size and weight, and reduce the terminal procurement cost of logistics transportation.

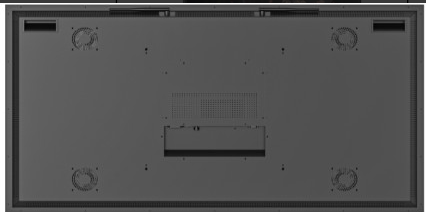

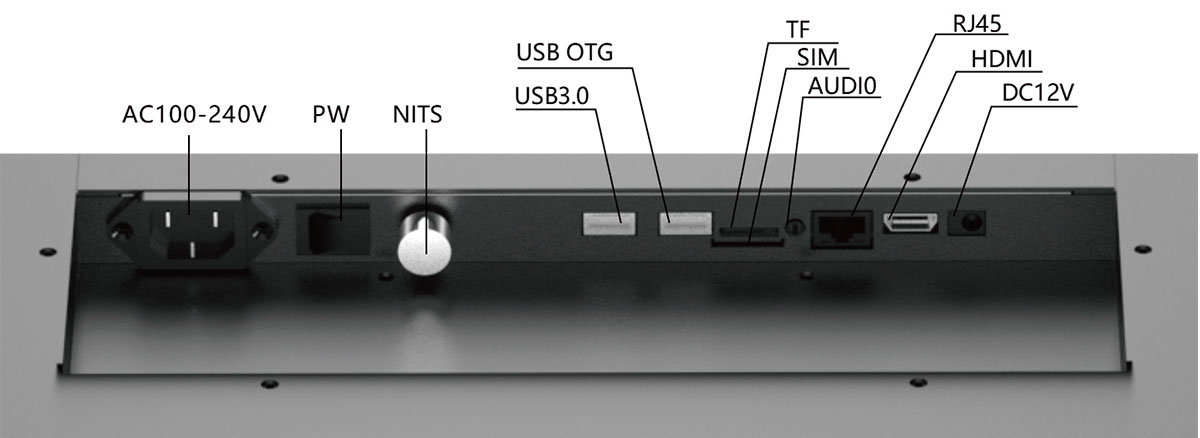

CONNECTIVITIES The interface is rich and it is compatible with most of the market's motherboard models, facilitating the expansion of functions for customers.
|
The core frame is constructed from high-purity aluminum featuring excellent thermal conductivity, efficient heat dissipation and lightweight build. The cabinet surface undergoes precision polishing plus high-gloss powder coating for mirror-like finish and silky smooth handfeel. The specialized topcoat delivers superior anti-scratch performance to withstand everyday abrasion, preserving premium appearance over long service life with exquisite craftsmanship reflected in every detail.
|

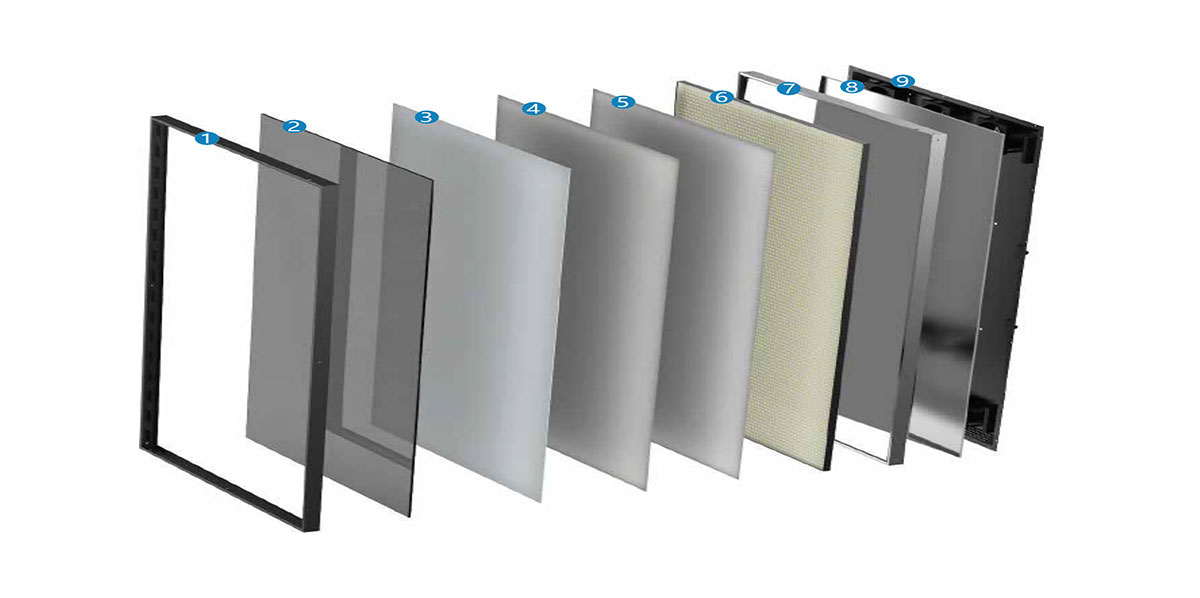

① Aluminum frame ② High temperature OC ③ 3M DBEF ④ Brightening film ⑤ High temperature diffusion plate | ⑥ Mini led backlight ⑦ Aluminum frame ⑧ Waterproof groove ⑨ back cover |

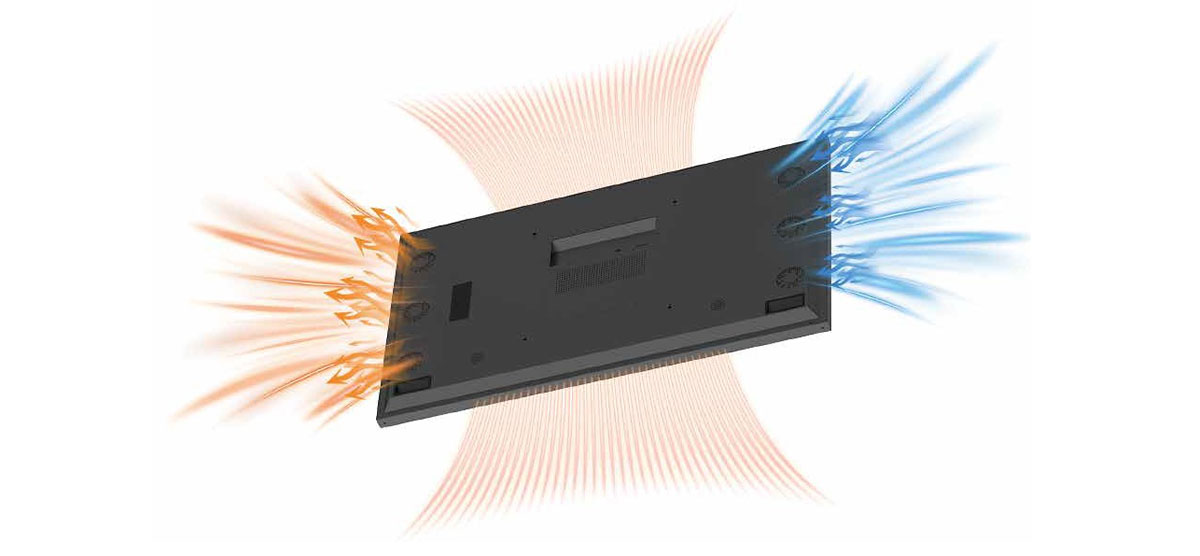

Equipped with a high-throughput silent fan and intelligent temperature control motherboard, it builds a precise temperature control system: when the body temperature reaches 45℃, thefan starts to run, and the ultra-low noise design ensures that the use environment is quiet and undisturbed.
If the temperature rises to 65℃, the power board will automatically switch to 70%power output, and achieve thermal balance through intelligent control of backlight temperature;When the temperature drops, the power immediately returns to normal power supply.

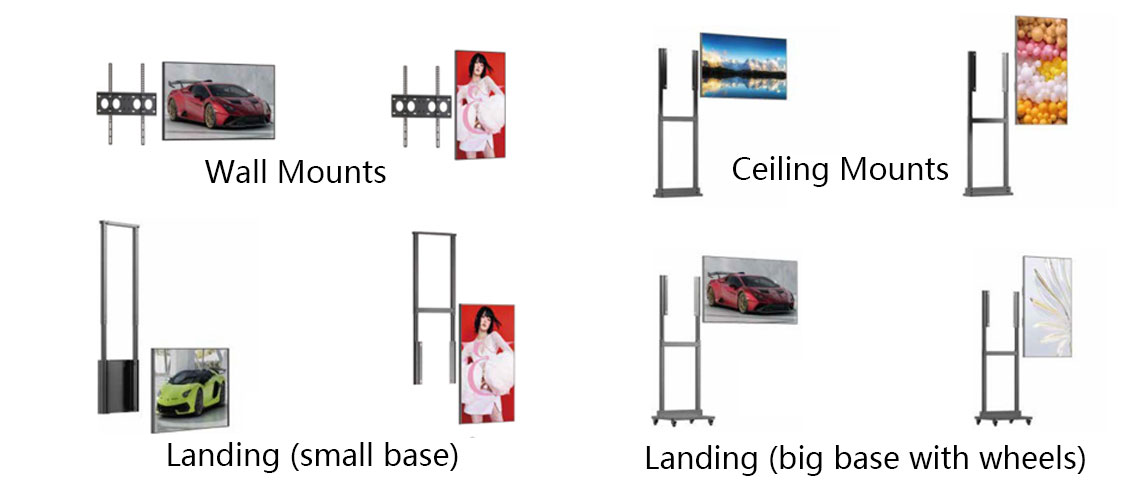

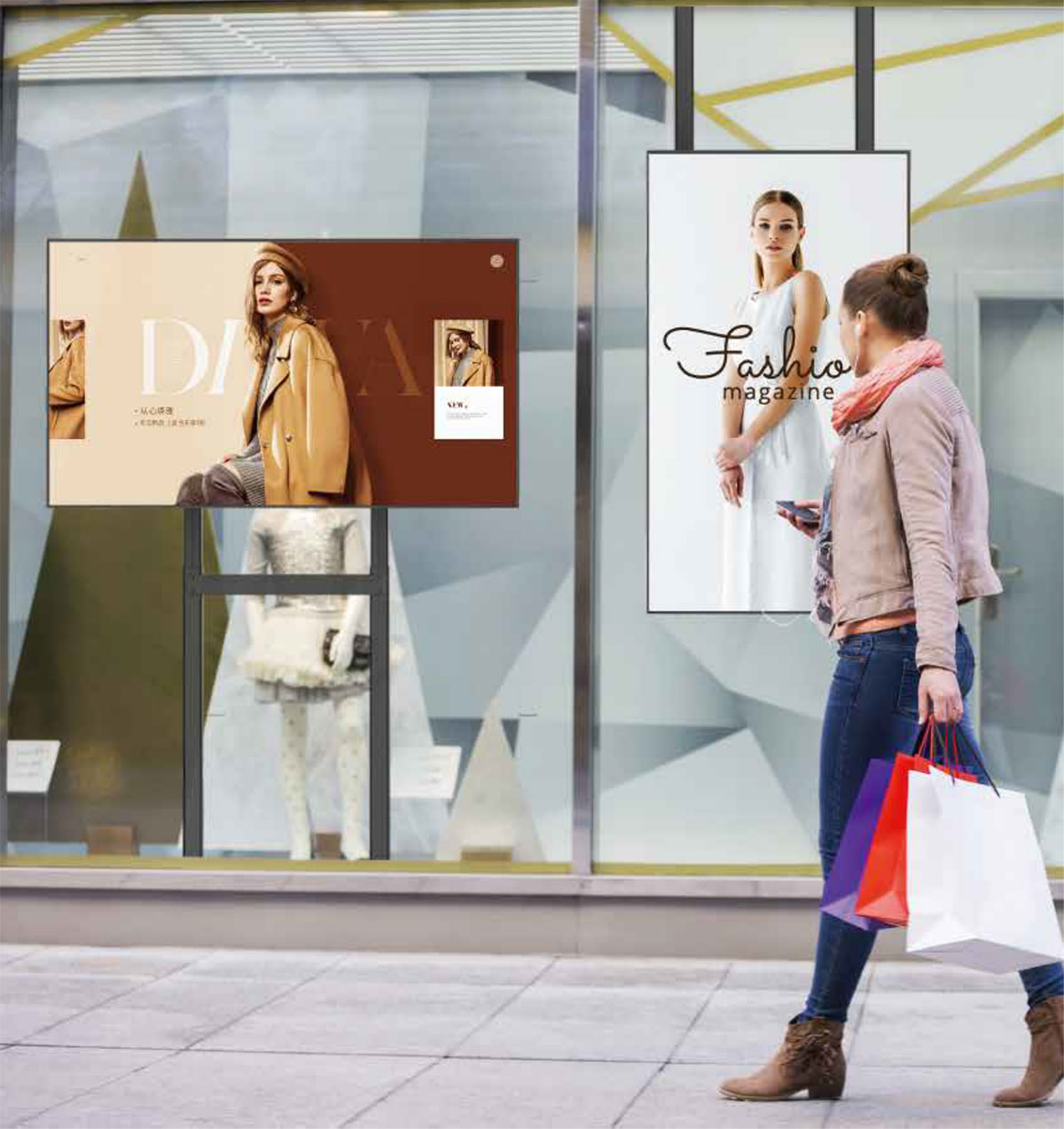

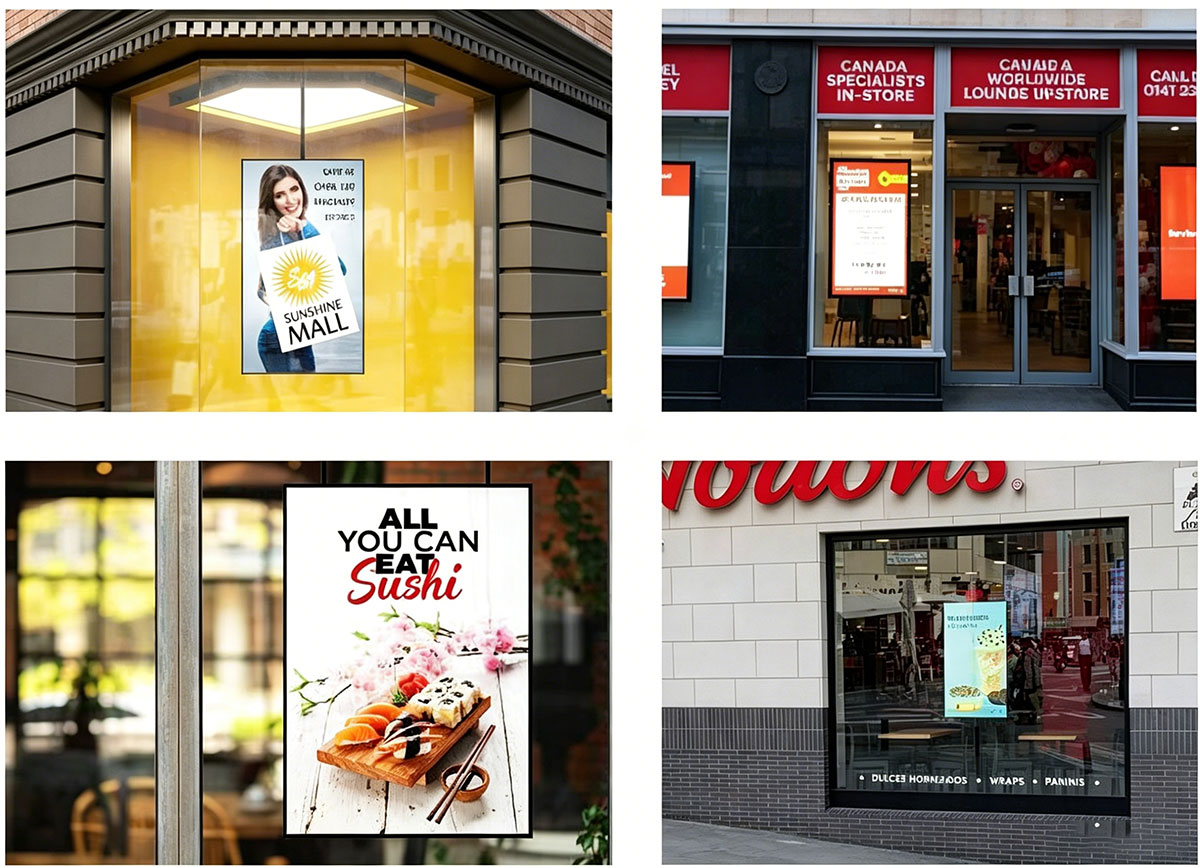

S3 series adopts standardized installation hole design, convenient installation and strong adaptability, which can flexibly support suspension, landing, wall hanging and other installation methods, perfectly matching the needs of different window scenes. Its ever-changing shape can easily unlock the window to display new forms, effectively attract attention in all kinds of stores, and help brand information accurately reach the audience.
High Visibility Under Strong Sunlight
The window display has an excellent high brightness of 3000 nits, and even in strong sunlight, the screen delivers content clearly and attracts passers-by
Multiple size options
